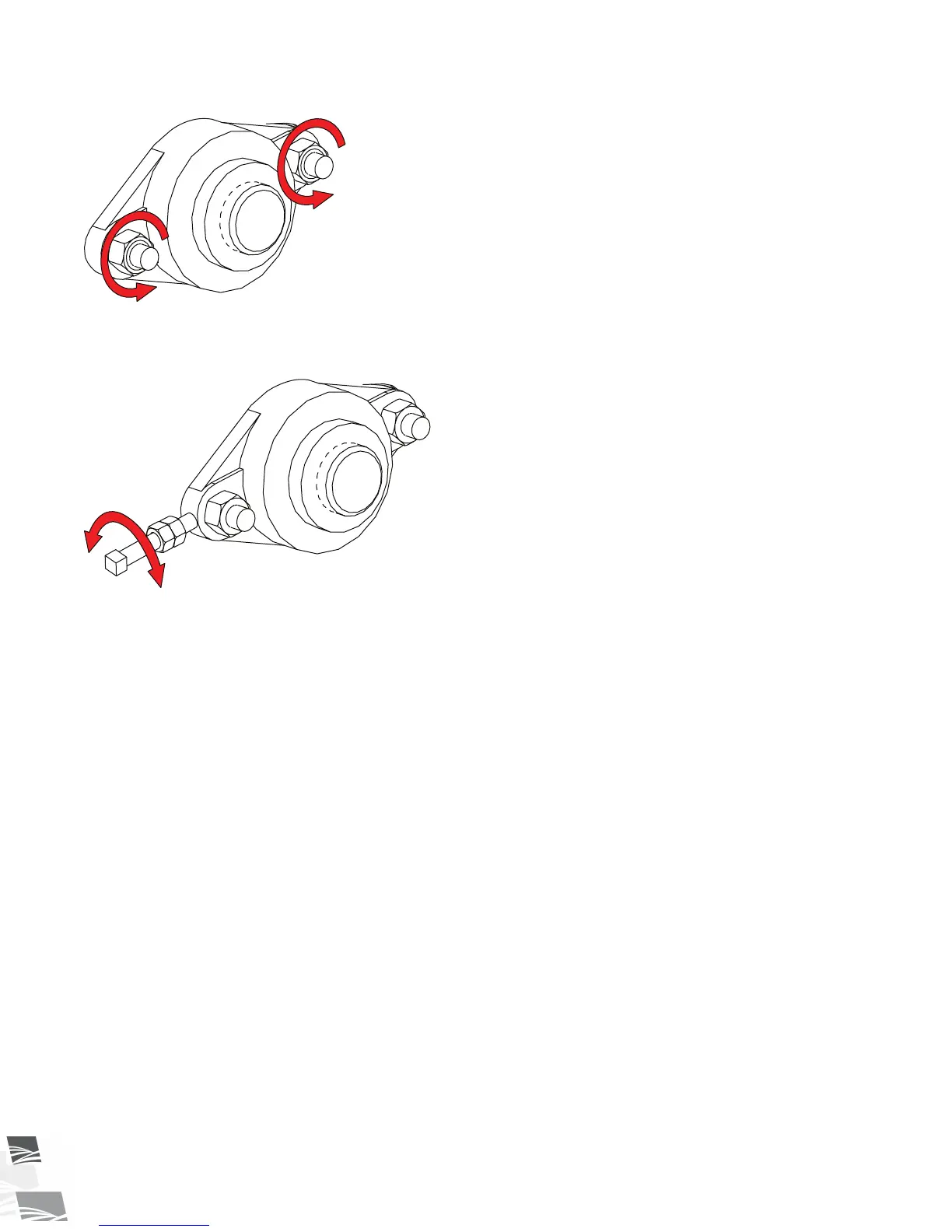

Figure 21. Loosen the Bearing Nuts
2. Rotate adjustment bolt 1/2 turn.
Figure 22. Rotate the Adjustment Bolt
3. Restart conveyor and run empty for 1 minute.
4. Stop the conveyor and remove ignition key or lock out the power source.
5. If the belt has centered, move to next step. If not, repeat Step 2 to Step 4 until the belt is centered.
6. Tighten the bearing bolts and jam nut (if equipped).
7. Replace any guards that were removed.
6.12.2 Adjust the Belt Return Wear Blocks
1. Adjust the wear blocks by rotating them 90 or 180 degrees. If they are worn down, replace the wear blocks.
