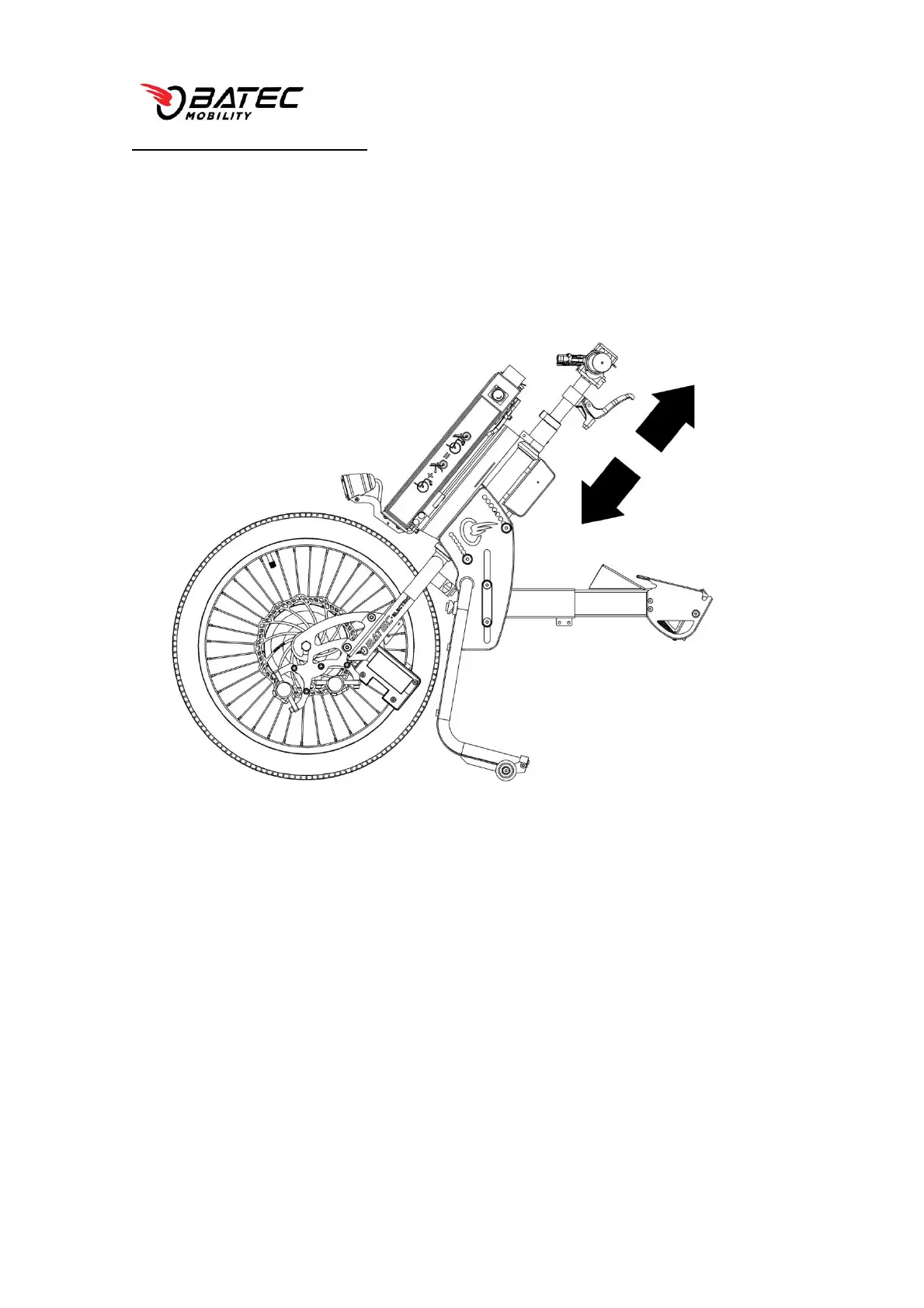

5.2.3. ADJ
UST STE
M HEIGHT
With
the
Batec
ancho
red,
adjust
the
stem
height
on
the
Batec
with
the
Quick
Rele
ase
lever.
108
