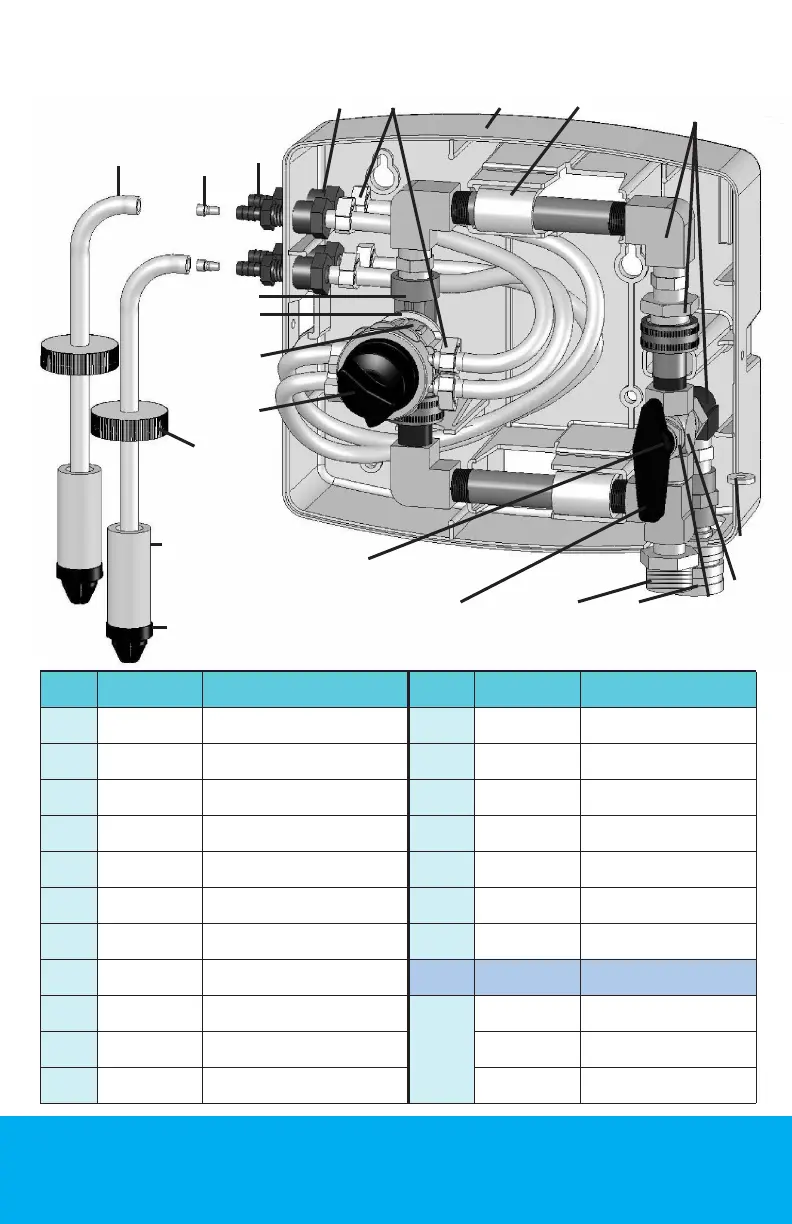

Diagram
1
2
3
Brass
Nut
Unit Manifold -
includes all
internal
components
Handle Set Screw
Ball Valve
Handle (BLK)
4
5
6
7
10
9
11
12
13
14
15
16
17
18
8
Key # Part No. Description Key # Part No. Description
1
BM328900 Outlet Male (Garden Hose)
12
BM440800 3.5 GPM Eductor
2
BM 671000
Inlet Quick Connect
13
BM90086227 Select Valve Harness
3
BM90086243
Flow (rinse) Restrictor
14
BM10069274 Check Valve
4
BM90086237 3-Way Brass Ball Valve
15
BM10080900 4-Product Selector Valve
5
BM90086233 Manifold Retainers
16
BM10089260 Gallon Cap with hole
6
BM90086228 Cabinet Back
17
BM509900 Ceramic Weight
7
BM90090248 Hose clamp (metal)
18
BM10089410 Foot Valve Strainer
8
BM90086236 Female Barb Adapter (brass)
9
BM340101 Chemical Pick-Up Barb
Not
Shown:
BM90086229 Cover
10
BM10027209 Metering Tip Kit BM90086242 Hose 1/2" X 6' Blue
11
BM500814 1/4" ID Pick-Up Tube BM238100 Strainer Washer
4
