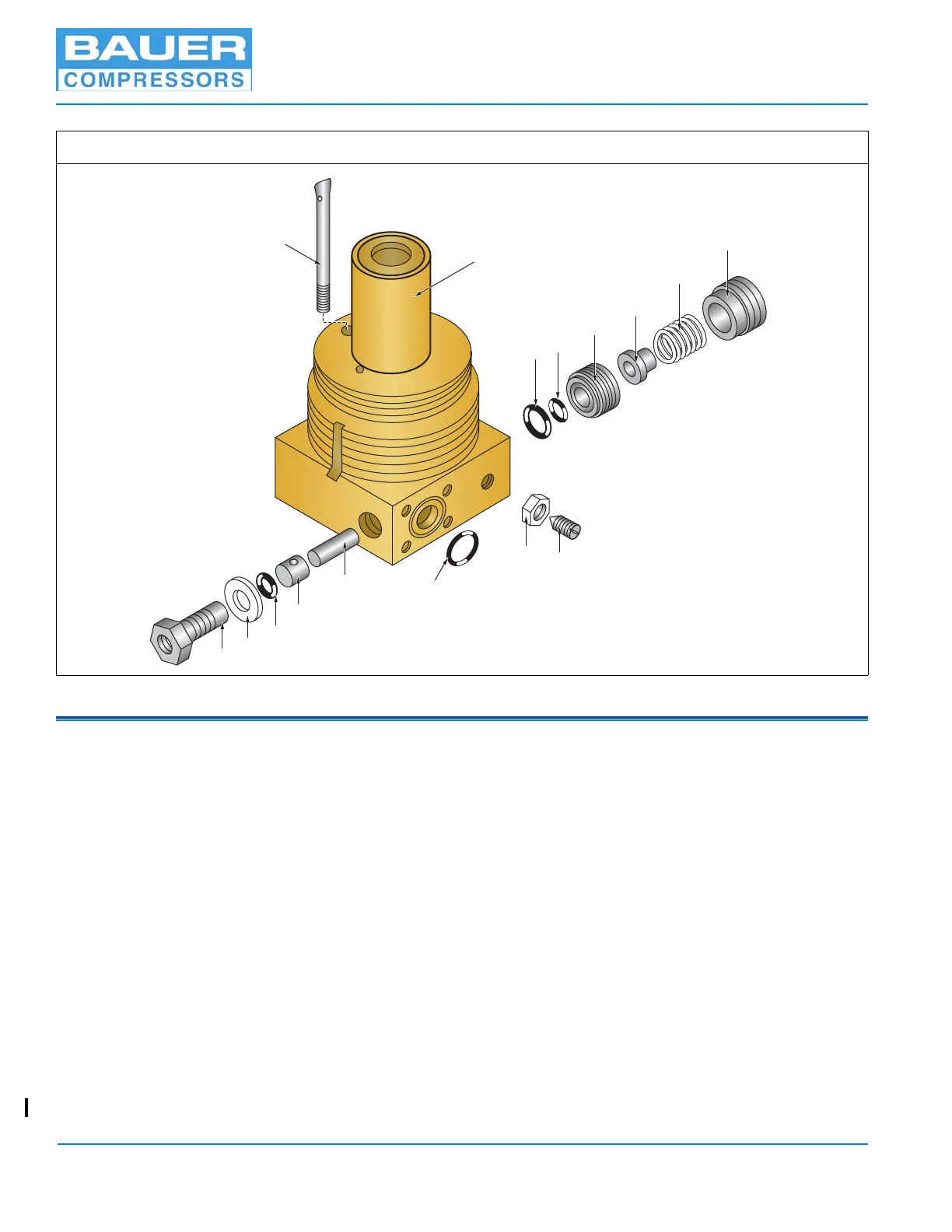

Bauer Compressors P31 - Figure 3-7 P31 Purification System Base Assembly

To Next Page

To Previous Page

Purification Systems

Page 21 3rd Edition, Rev 0 Chg 6

Item Qty Part No. Description Notes

 1 80593 Filter Base Assembly

1 1 80068 Base Available only with 082374

2 1 N24927 O-ring

3 1 N25503 O-ring

4 1 78536 Seat Available only with 082374

5 1 79199 Seat Spring Available only with 082374

6 1 2623 Spring

7 1 57935 Adjusting Screw Available only with 082374

8 1 N27297 Set Screw

9 1 N3837 Hex Nut

10 1 78106 Cylindric Pin

11 1 78688 Valve Piston

12 1 N23166 O-ring

13 1 4602 Backup Ring

14 1 91038 Valve Seat

15 1 80603 Nozzle Available only with 082374

16 1 N24788 O-ring

Figure 3-7 P31 Purification System Base Assembly
