Bauer 211102E-B - Parts List and Diagram

Page 11For technical questions, please call 1-888-866-5797.Item 58905
SAFETYOPERATIONMAINTENANCE SETUP
Part Description Qty
1 Rear Guard 1
2 Power Supply Board 1
3 Self Tapping Screw 16
4 Cord Clamp 1
5 Housing Assembly 1
6 Link 1
7 Control Dial 1
8 Spline 1
9 Motor 1
10 Motor Cover 1
11 Shoulder Washer 1
Part Description Qty
12 Flat Washer 1
13 Fan 1
14 Nut 1
15 Outer Guard 1
16 Motor Assembly 1
17 Tube Assembly 1
18 Bypass Assembly 1
19 Power Cord 1
20 Tube Release Latch 1
21 Cord Retainer 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
3
3
5
19
20
21

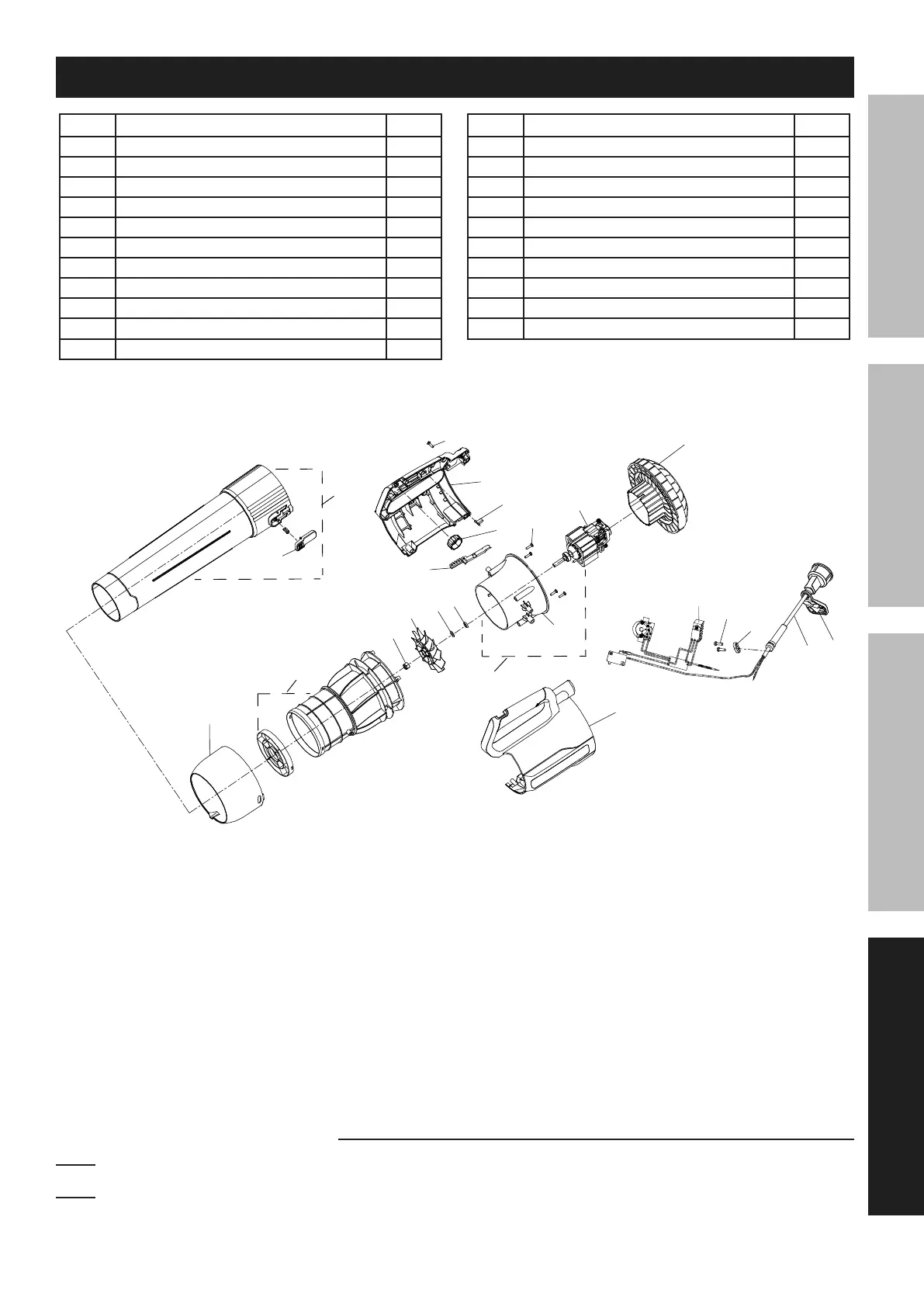

Parts List and Diagram
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175448675 when ordering parts.
