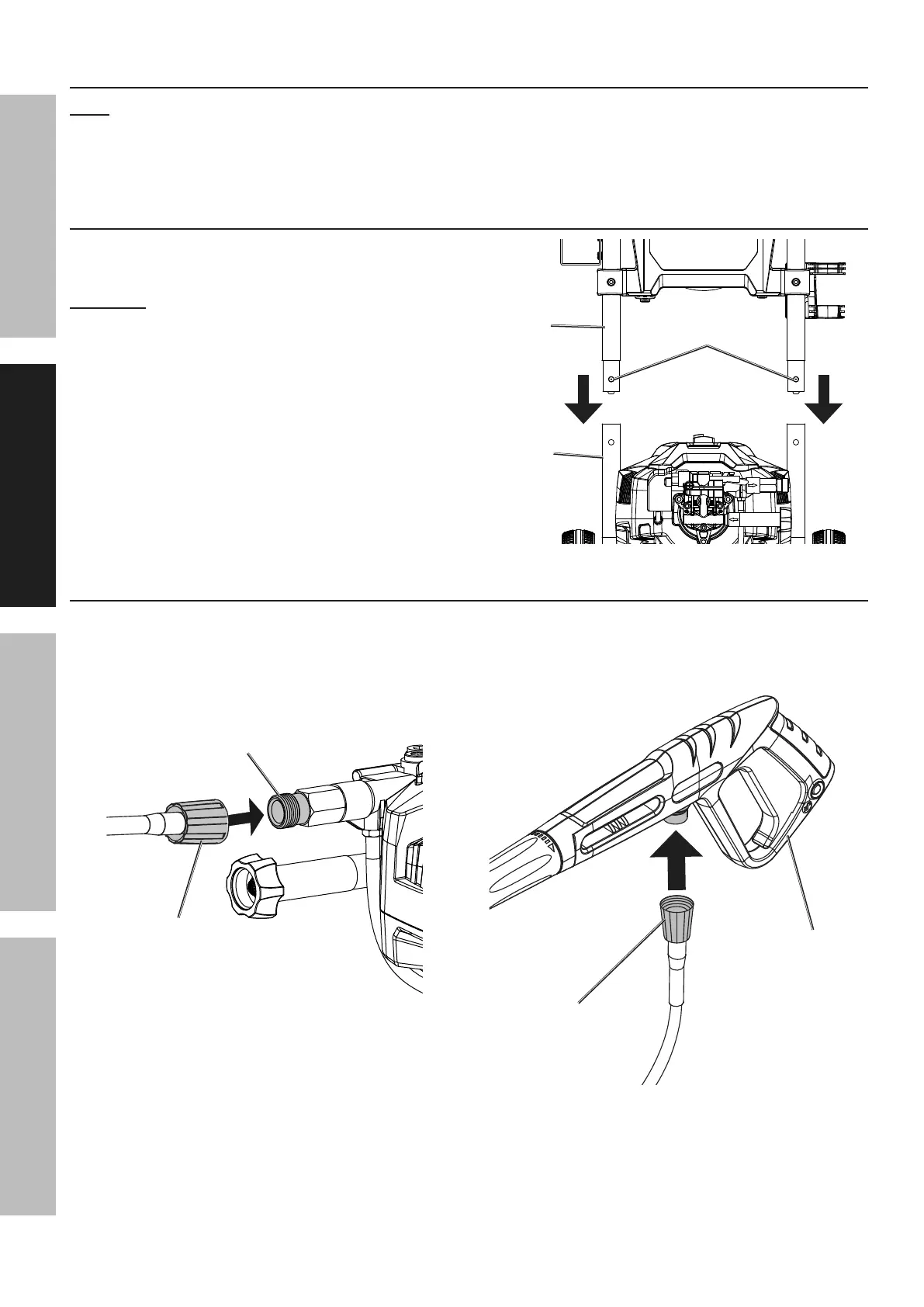

Assembly
Note: For additional information regarding the parts listed in the following pages,
refer to Parts List and Assembly Diagram on page 15.
Remove shipping caps from Water Inlet/Outlet.
Attach Handle
1. Hold the Spring Button near each end of the Handle
in while inserting the ends into the Lower Frame.
CAUTION! Be careful to avoid pinching your hands.
2. Slide the Handle into the Lower Frame until
both Spring Buttons pop out into place.
Handle
Spring
Buttons
Lower
Frame
Connect High-Pressure Hose
1. Connect High Pressure Hose to Water Outlet on
front of Pressure Washer by pushing Hose in as
far as it will go, then threading coupler on tightly.
Water
Outlet
High Pressure
Hose
2. Connect High-Pressure Hose to connection
under Spray Gun by pushing Hose in as far as
it will go, then threading coupler on tightly.
High Pressure
Hose
Spray
Gun
