Page 10 For technical questions, please call 1-888-866-5797. 70595

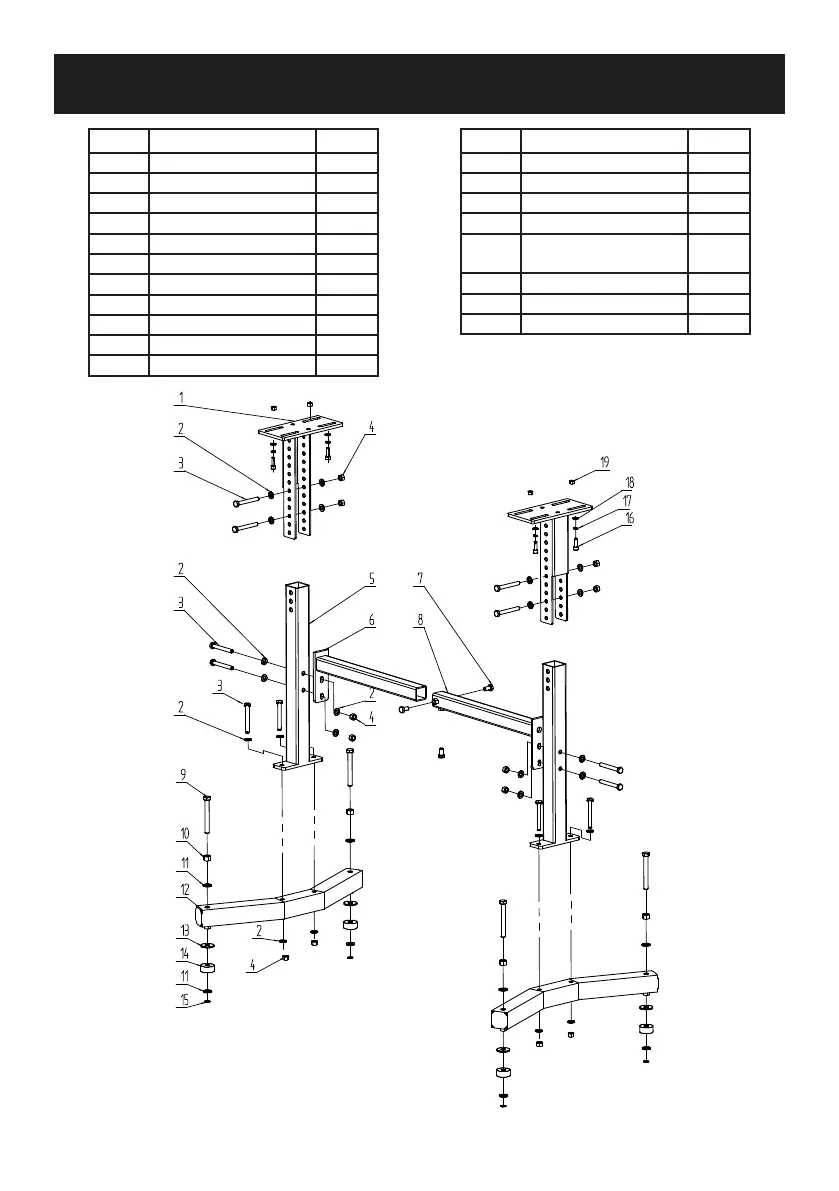

Parts List and Assembly Diagram

Part Description Qty

1 Mounting Platform 2

2 Washer M10 24

3 Hex Bolt M10 x 80 12

4 Nut M10 12

5 Column 2

6 Inner Beam 1

7 Hex Bolt M10 x 20 3

8 Outer Beam 1

9 Hex Bolt M12 x 100 4

10 Nut M12 4

11 Washer M12 8

Part Description Qty

12 Base 2

13 Large Washer M12 4

14 Rubber Foot 4

15 Clip 4

Hex Cap Screws

M8 x 25

17 Elastic Washer M8 4

18 Washer M8 4

19 Nut M8 4
