Page 5For technical questions, please call 1-888-866-5797.70595
Assembly Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section
at the beginning of this manual including all text under
subheadings therein before set up or use of this product.
Note: For additional information regarding the parts listed in this manual,
refer to the Parts Lists and Diagram near the end of this manual.

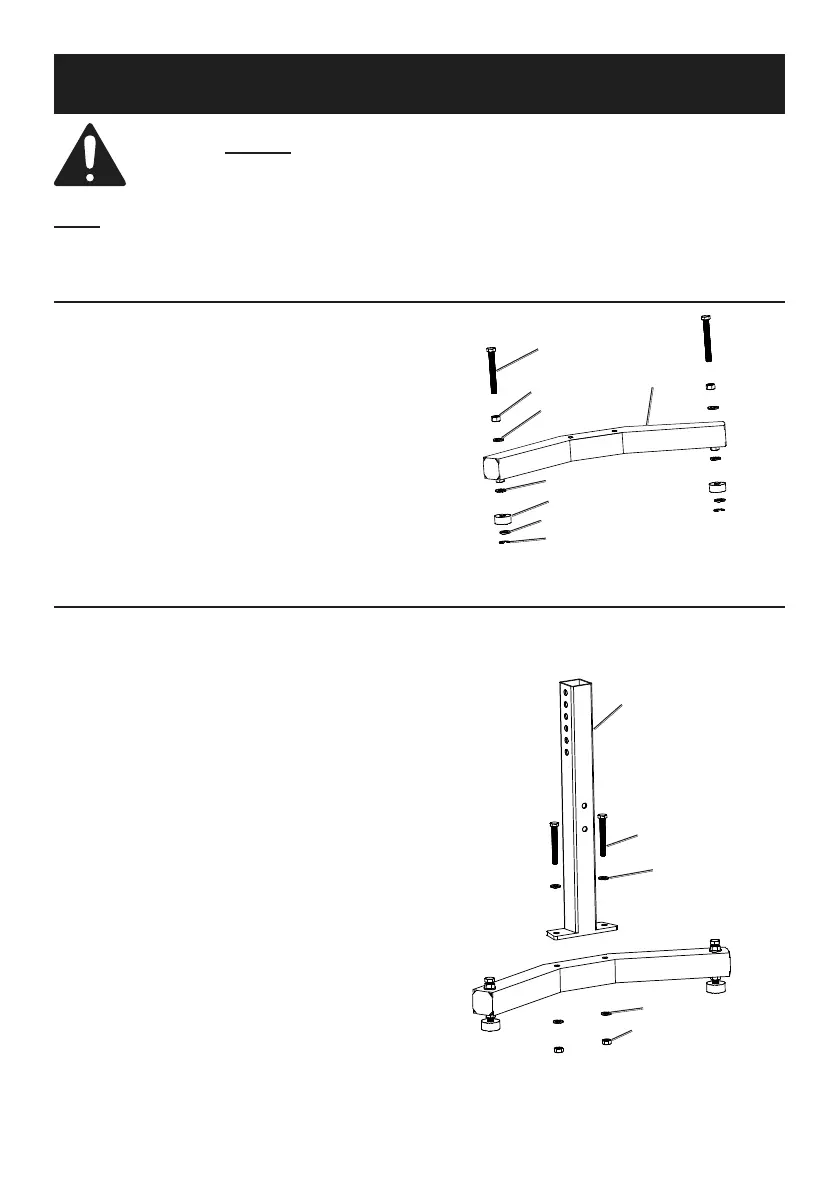

Attaching Feet to Base
1. Install M12 Washer (11), M12 Nut (10),
and M12 x 100 Hex Bolt (9) through
the top of the Base (12) on each end.
2. Install M12 Large Washer (13),
Rubber Foot (14), M12 Washer (11),
and Clip (15) onto threaded end
of Bolt at each end of Base.
3. Repeat steps 1 and 2 on second Base.
Base
Hex Bolt
Nut
Washer
Rubber Foot
Clip
Large Washer
Washer
Attaching Base to Column
1. Attach the Base to the Column (5)
using two M10 Washers (2) and
two M10 x 80 Hex Bolts (3).
2. Install two M10 Washers and
two M10 Nuts to the Bolts to
secure the Column in place.
3. Repeat steps 1 and 2 for
the second column.
Column
Hex Bolt
Washer
Washer
Nut
To Next Page
