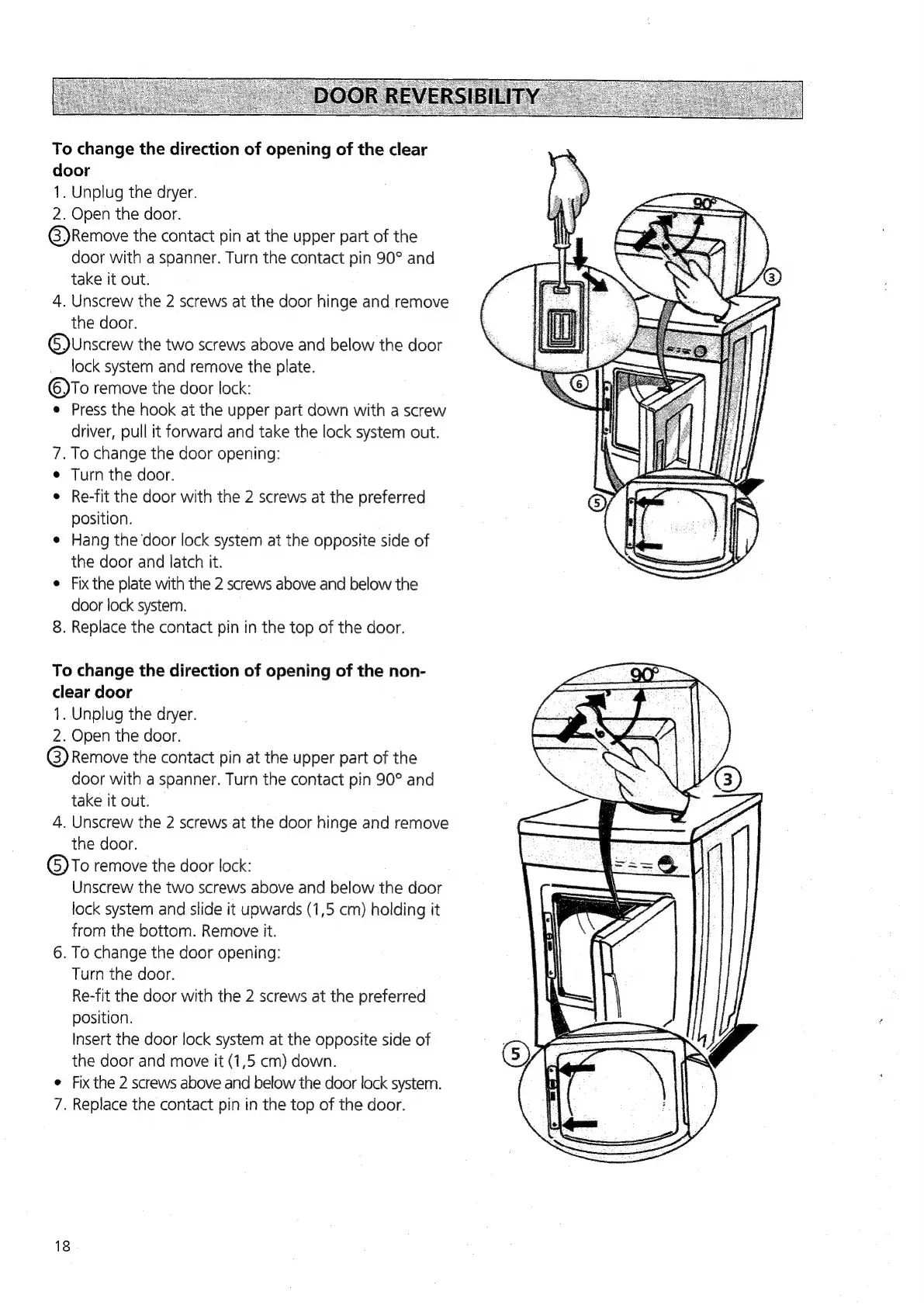

To
change
the
direction
of
opening
of
the
clear
door
1.
Unplug
the
dryer.
2.
Open
the
door.
G)Remove
the
contact
pin
at
the
upper
part
of
the
door
with
a
spanner.
Turn
the
contact
pin
90°
and
take
it
out.
4.
Unscrew
the
2
screws
at
the
door
hinge
and
remove
the
door.
6)
Unscrew
the
two
screws
above
and
below
the
door
lock
system
and
remove
the
plate.
©)To
remove
the
door
lock:
e
Press
the
hook
at
the
upper
part
down
with
a
screw
driver,
pull
it
forward
and
take
the
lock
system
out.
7.
To
change
the
door
opening:
e
Turn
the
door.
¢
Re-fit
the
door
with
the
2
screws
at
the
preferred
position.
e
Hang
the
door
lock
system
at
the
opposite
side
of
the
door
and
latch
it.
e
Fix
the
plate
with
the
2
screws
above
and
below
the
door
lock
system.
8.
Replace
the
contact
pin
in
the
top
of
the
door.
To
change
the
direction
of
opening
of
the
non-
clear
door
1.
Unplug
the
dryer.
2.
Open
the
door.
@)
Remove
the
contact
pin
at
the
upper
part
of
the
door
with
a
spanner.
Turn
the
contact
pin
90°
and
take
it
out.
4.
Unscrew
the
2
screws
at
the
door
hinge
and
remove
the
door.
()To
remove
the
door
lock:
Unscrew
the
two
screws
above
and
below
the
door
lock
system
and
slide
it
upwards
(1,5
cm)
holding
it
from
the
bottom.
Remove
it.
6.
To
change
the
door
opening:
Turn
the
door.
Re-fit
the
door
with
the
2
screws
at
the
preferred
position.
Insert
the
door
lock
system
at
the
opposite
side
of
the
door
and
move
it
(1,5
cm)
down.
e
Fix
the
2
screws
above
and
below
the
door
lock
system.
7.
Replace
the
contact
pin
in
the
top
of
the
door.
