o The brass links must be positioned as marked in the appropriate
diagram.

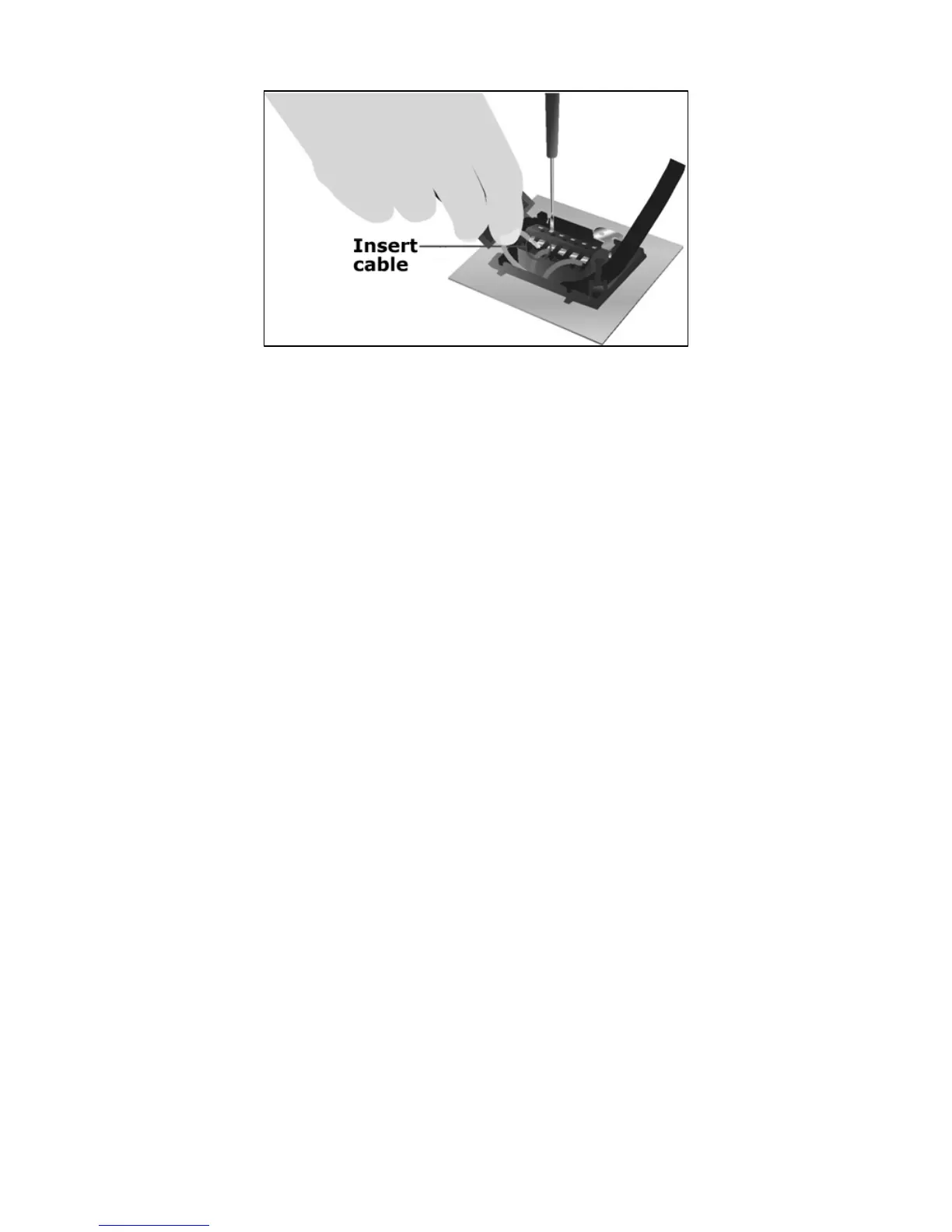

o Carefully insert a screwdriver into the hole for the live
connection (as shown in the diagram above). Gently press the
screwdriver downwards and outwards to create a space and then
feed the live cable into it.
o Release the screwdriver and then gently pull at the live cable, to
ensure that it is securely fixed into the terminal block.
o Repeat this process for the neutral and earth connections and
then close the terminal block cover again, fully tightening the
cover screw.
o If when the hob is first switched on, only two of the zones
work, you should recheck that the terminal screws are all
fully tightened between the links. This should be done
before contacting the Baumatic Service Department.
o IMPORTANT: The appliance must NOT be connected to the
mains supply by means of a 13A plug and socket.
o The cable can be looped if necessary, but make sure that is not
kinked or trapped when the hob is in position. Care must be
taken to avoid the cable being in contact with hot parts of the
appliance.
Replacing the mains supply cable
If the mains supply cable is damaged, then it must be replaced by an
appropriate replacement which can be obtained from the Baumatic
Spares Department.
The mains supply cable should be replaced in accordance with the
following instructions:
