23
Positioning
The adjacent furniture must be able to withstand a
minimum temperature rise of 85°C above the ambient
temperature of the room it is located in, during
periods of use.
* 600 mm (B46.1SS, B46.1TCSS, B60.3SS, BT61.1SS, BT62.1SS,
BT62.1TCSS)
* 700 mm (BG67.1SS, B68.1SS, B68.1TCSS)
* 900 mm (B17.8SS)
o This appliance can be located in a kitchen, a kitchen diner or a
bed sitting room. IMPORTANT: The appliance must not be
installed in a bathroom or shower room.

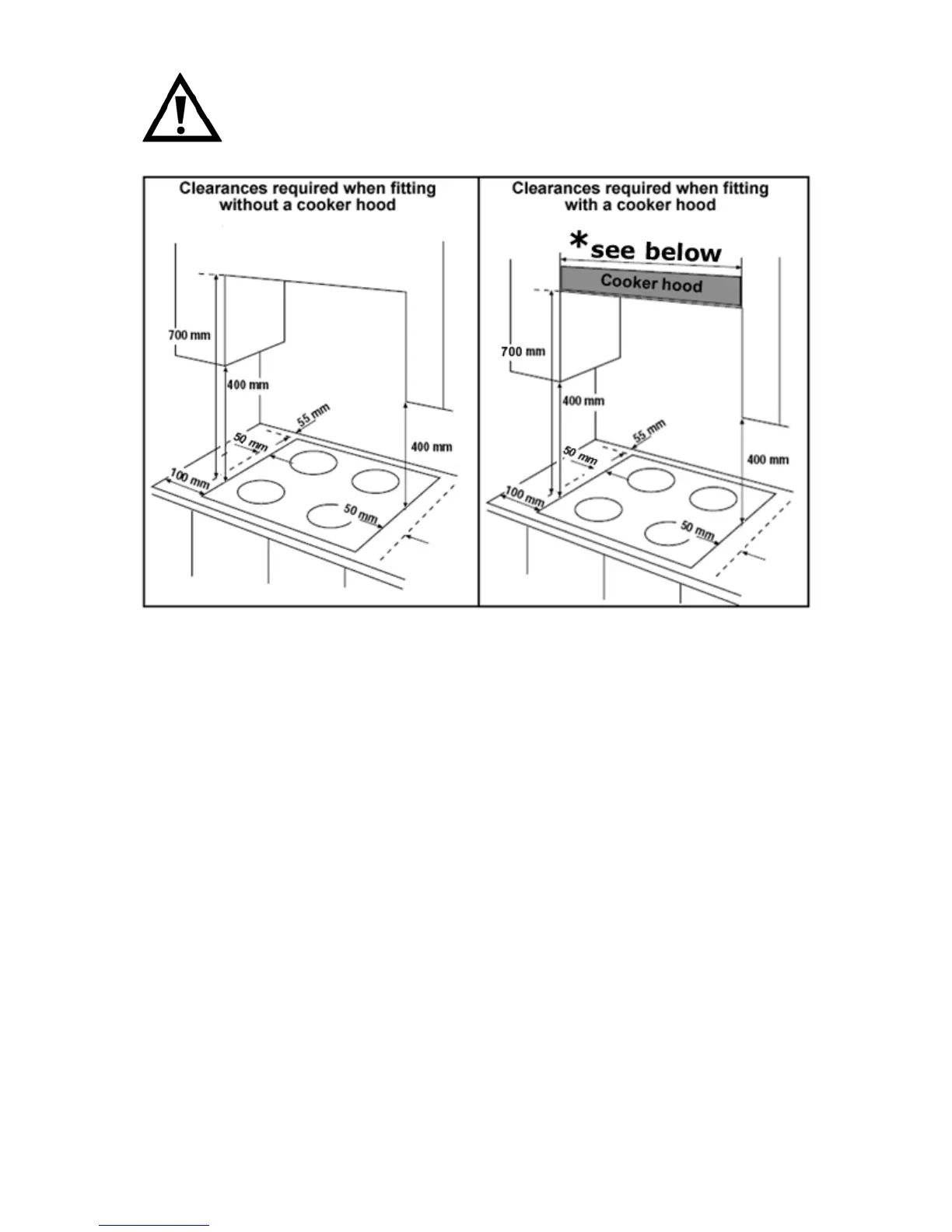

This appliance is classified as Class 3 and therefore is to be built into a
kitchen unit (depending on size) or 600mm worktop, providing the
following minimum distances are allowed:
o The edges of the hob must be a minimum distance of 55 mm
from a side or rear wall.
o 700 mm between the highest point of the hob surface (including
the burners) and the underside of any horizontal surface directly
above it.
