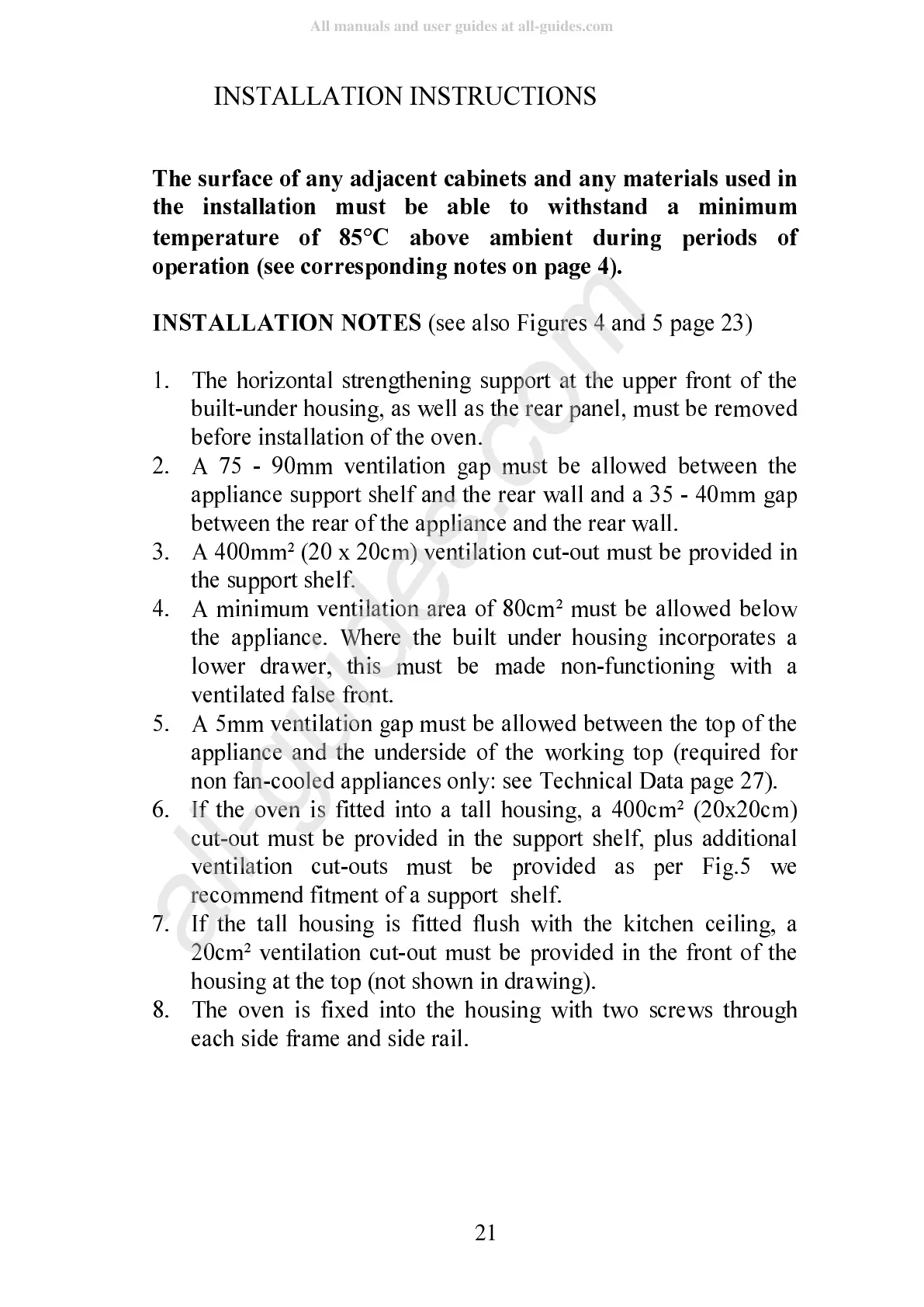

INSTALLATION INSTRUCTIONS
The surface of any adjacent cabinets and any materials used in
the installation must be able to withstand a minimum
temperature of 85
°
C above ambient during periods of
operation (see corresponding notes on page 4).
INSTALLATION NOTES
(see also Figures 4 and 5 page 23)
1.
The horizontal strengthening support at the upper front of the
built-under housing, as well as the rear panel, must be removed
before installation of the oven.
2.
A 75 - 90mm ventilation gap must be allowed between the
appliance support shelf and the rear wall and a 35 - 40mm gap
between the rear of the appliance and the rear wall.
3.
A 400mm² (20 x 20cm) ventilation cut-out must be provided in
the support shelf.
4.
A minimum ventilation area of 80cm² must be allowed below
the appliance. Where the built under housing incorporates a
lower drawer, this must be made non-functioning with a
ventilated false front.
5.
A 5mm ventilation gap must be allowed between the top of the
appliance and the underside of the working top (required for
non fan-cooled appliances only: see Technical Data page 27).
6.
If the oven is fitted into a tall housing, a 400cm² (20x20cm)
cut-out must be provided in the support shelf, plus additional
ventilation cut-outs must be provided as per Fig.5 we
recommend fitment of a support shelf.
7.
If the tall housing is fitted flush with the kitchen ceiling, a
20cm² ventilation cut-out must be provided in the front of the
housing at the top (not shown in drawing).
8.
The oven is fixed into the housing with two screws through
each side frame and side rail.
21
