Baumatic BCG605SS - Oven;Grill Burner Minimum Flow Adjustment

35

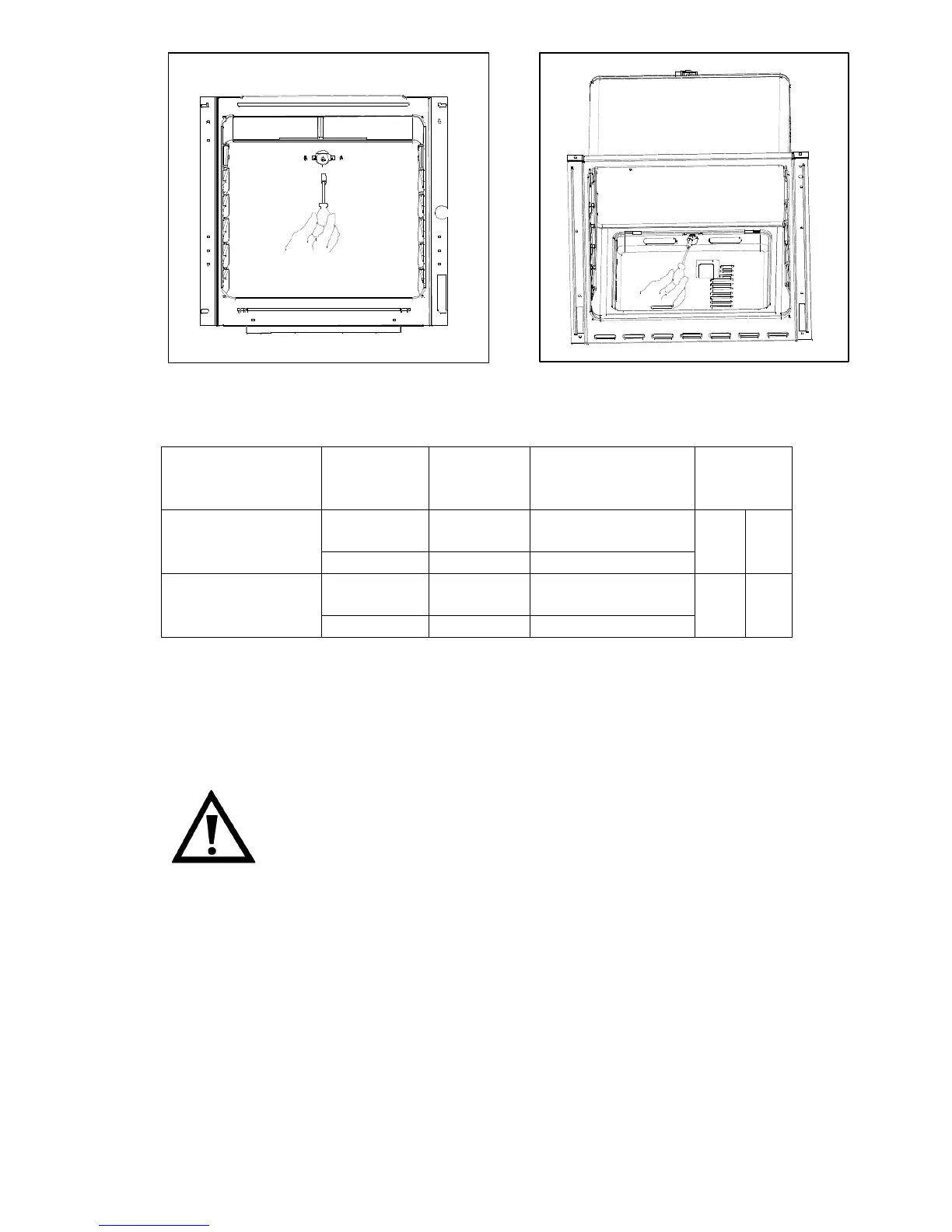

o Unscrew the injector and replace it with the required injector for
the new gas supply according to the table below.
Burner Type Gas Type
Pressure
Mbar
Injector
Marking
(1/100mm)
Power
(Kw)
Max Min
Natural
Gas
20 1.05 Oven Burner
Liquid Gas
28..30/37
0.72
2.1 0.8
Natural
Gas
20 1.00 Grill Burner
Liquid Gas
28..30/37
0.66
1.8 0.6
o After changing the injectors YOU MUST change the minimum
flow rate.
Minimum flow adjustment for the oven and grill burners
All work must be carried out by a GASSAFE
registered engineer.
o In order to access the adjusting screws to change the minimum
flow rate of the grill and oven burners, you need to remove the
hob top and control panel.
