Installing the appliance

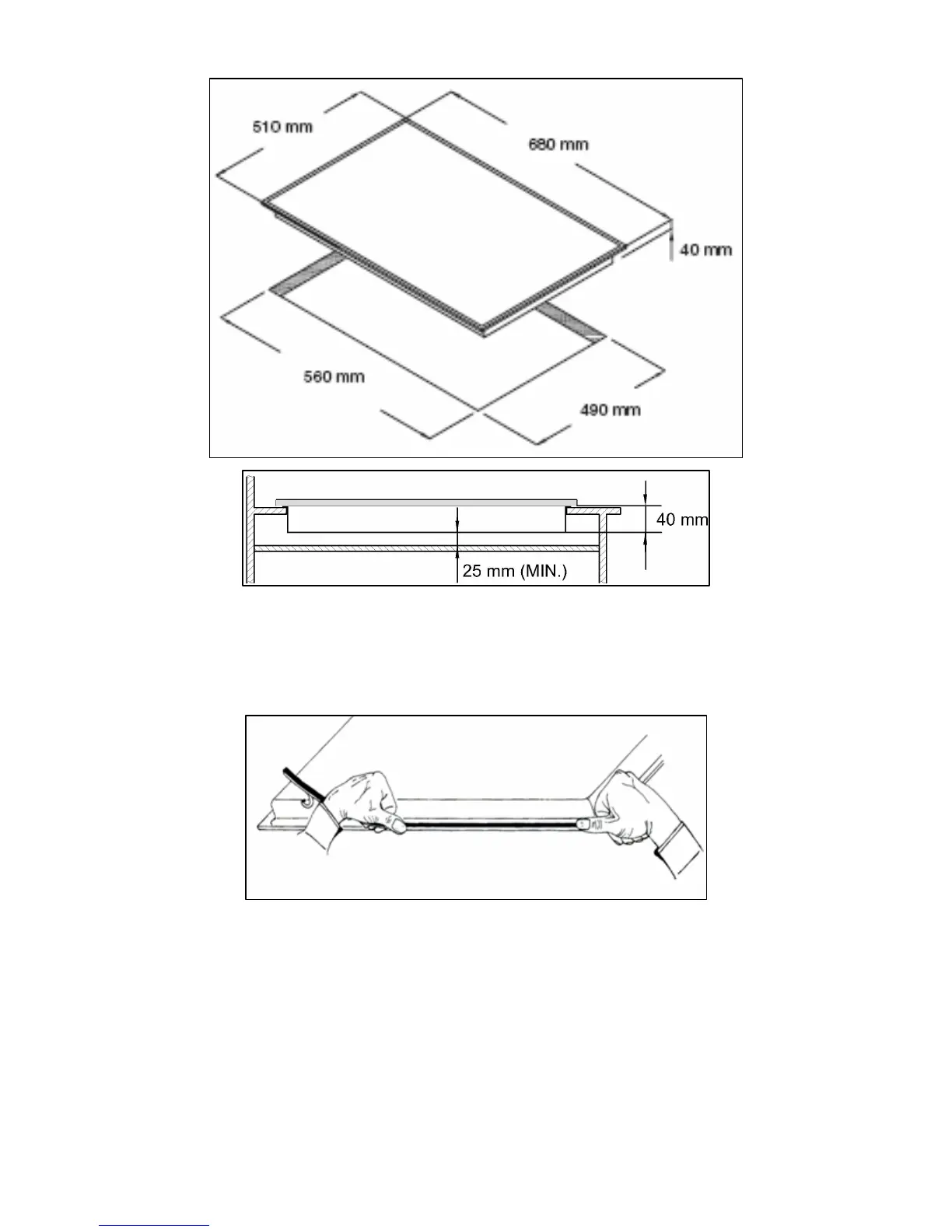

o Cut a hole in the worktop that corresponds with the drawings
shown above.
o IMPORTANT: You must have a gap of at least 25 mm between
the underneath of the appliance and any surface that is below it.
o Carefully turn the hob upside down and place it on a cushioned
mat.
o Apply the sealing strip provided around the edge of the
appliance.
o The protective covering must be removed from both sides.
o Do not leave a gap in the sealing agent or overlap the thickness.
20
