Baumatic BHC606BE - Installing the Appliance

21
Installing the appliance

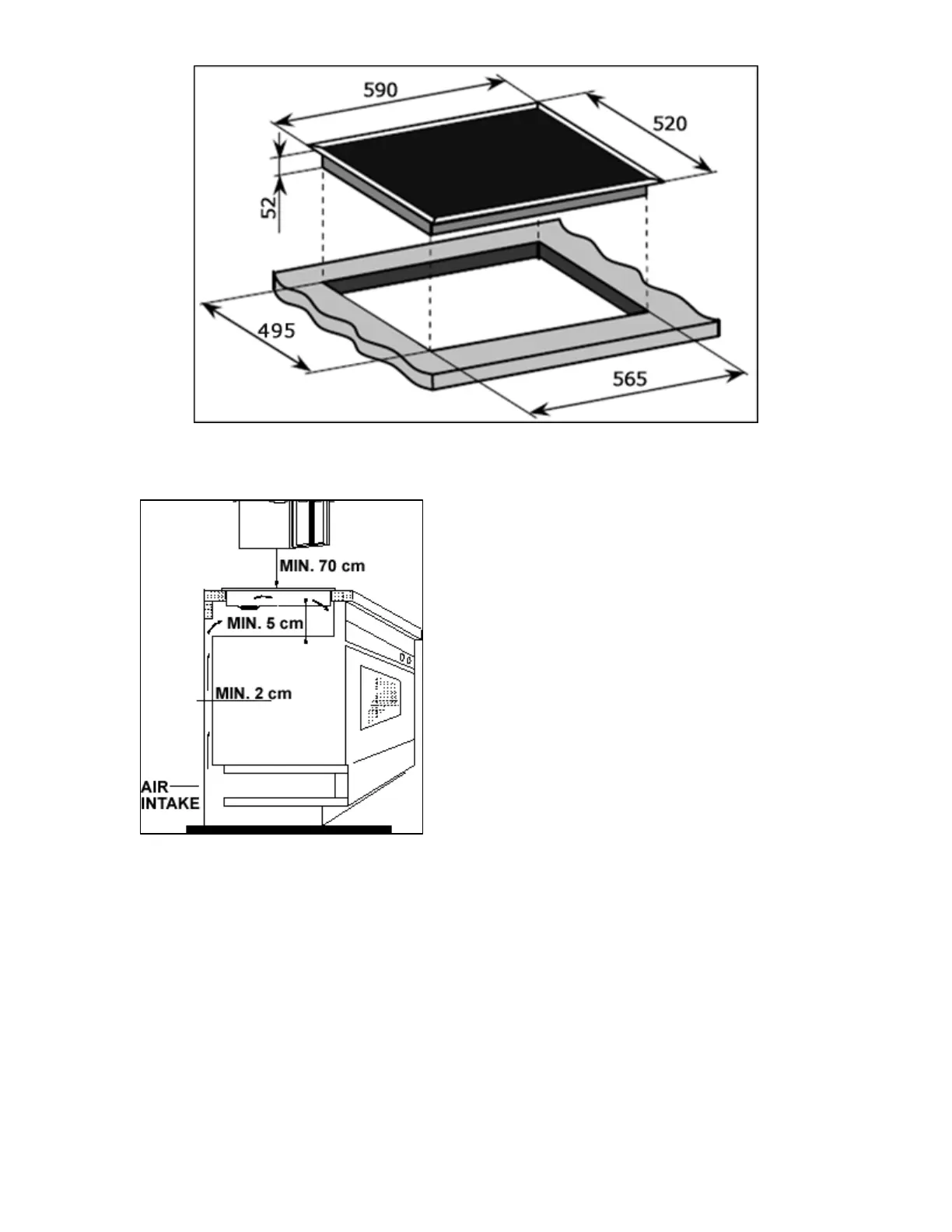

o Cut a hole in the worktop that corresponds with the drawing
shown above.
o IMPORTANT: You must observe
the ventilation requirements
shown in the drawing opposite.
o The air intake vent can be at the
rear wall or in the base area.
There is no need for venting at
the front of the hob.
o If the hob is installed above
drawers or a cupboard then a
separator board must be placed
no less than 5 cm below the hob
with at least a 2 cm gap at the
rear.
o If the hob is installed above drawers or a cupboard there is no
need for a separate air intake.
