16
Installing the appliance
o If the hob is installed without an oven below it, place a
separating panel made from an appropriate material at a
minimum distance of 10 mm below it.
o If the hob is installed over an oven, place a separating panel at a
minimum distance of 15 mm below it and follow the
manufacturer’s instructions of the oven.
o Always allow sufficient ventilation.

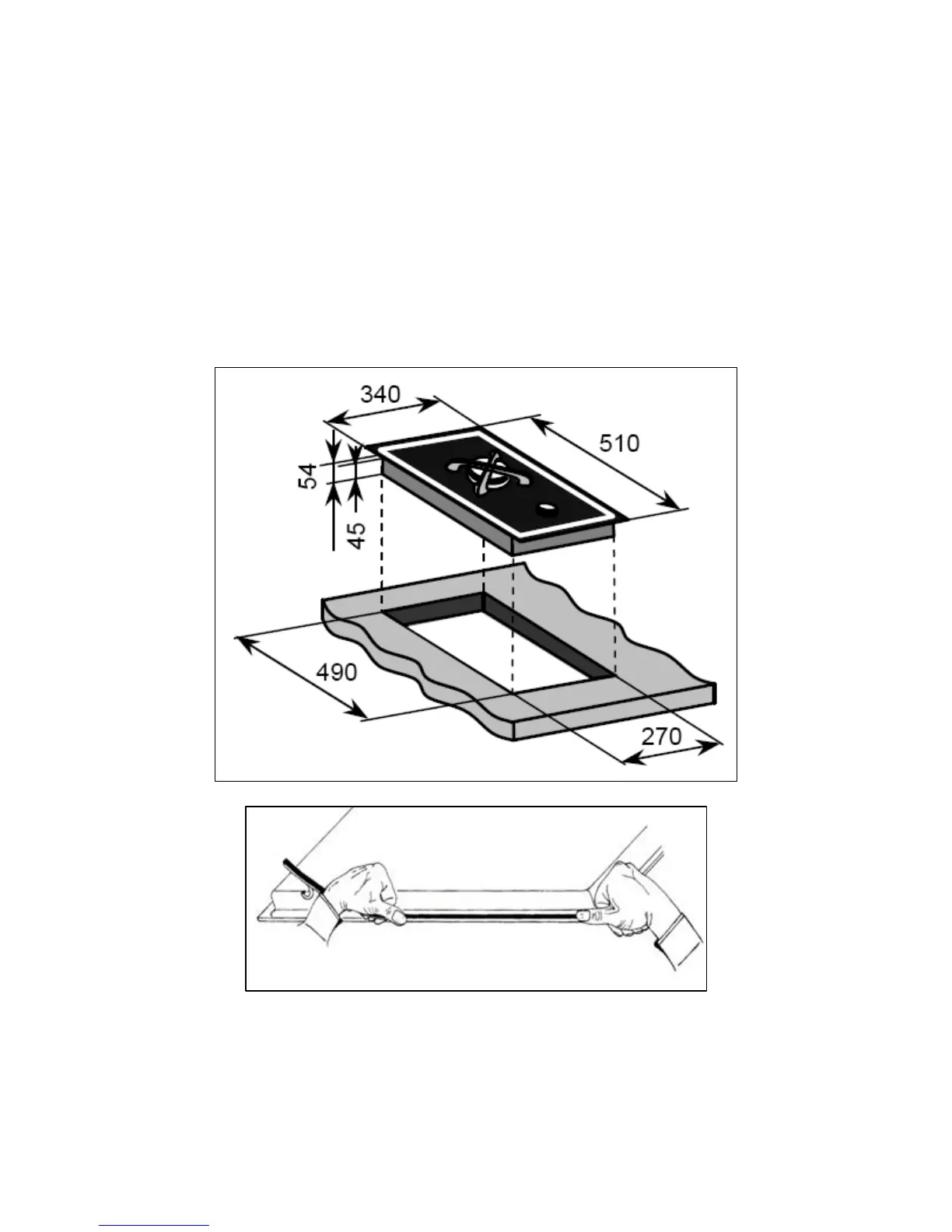

o Cut a hole in the worktop that corresponds with the diagram
below:
o Carefully turn the hob upside down and place it on a cushioned
mat.
o Apply the sealing strip (A) provided around the edge of the
appliance.
