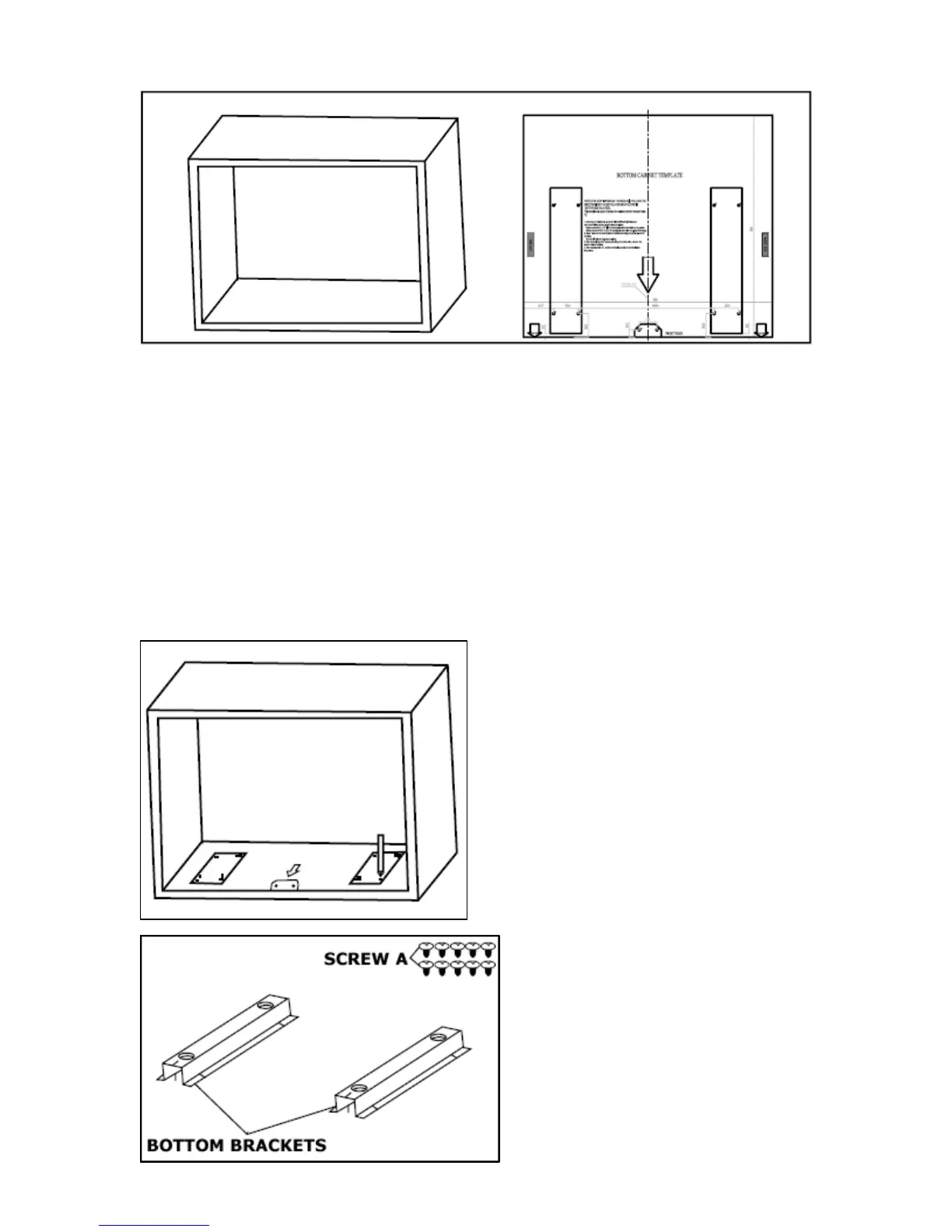

Preparing the housing unit
o Your appliance will be supplied with an installation template,
which you should follow when preparing the housing unit.
o Place the template on the base of the housing unit and tape it
into position.
o IMPORTANT: The edge of template must be completely level
with the front edge of the housing unit.
o IMPORTANT: The centre line on the template MUST be
positioned in the middle of the housing unit.
o You should make marks on
the base of the housing unit,
in the positions marked with
the letter “a” on the
template.
o For the next step in
preparing the housing
unit process, you will
require 8 x screw A and
the bottom brackets.
33
