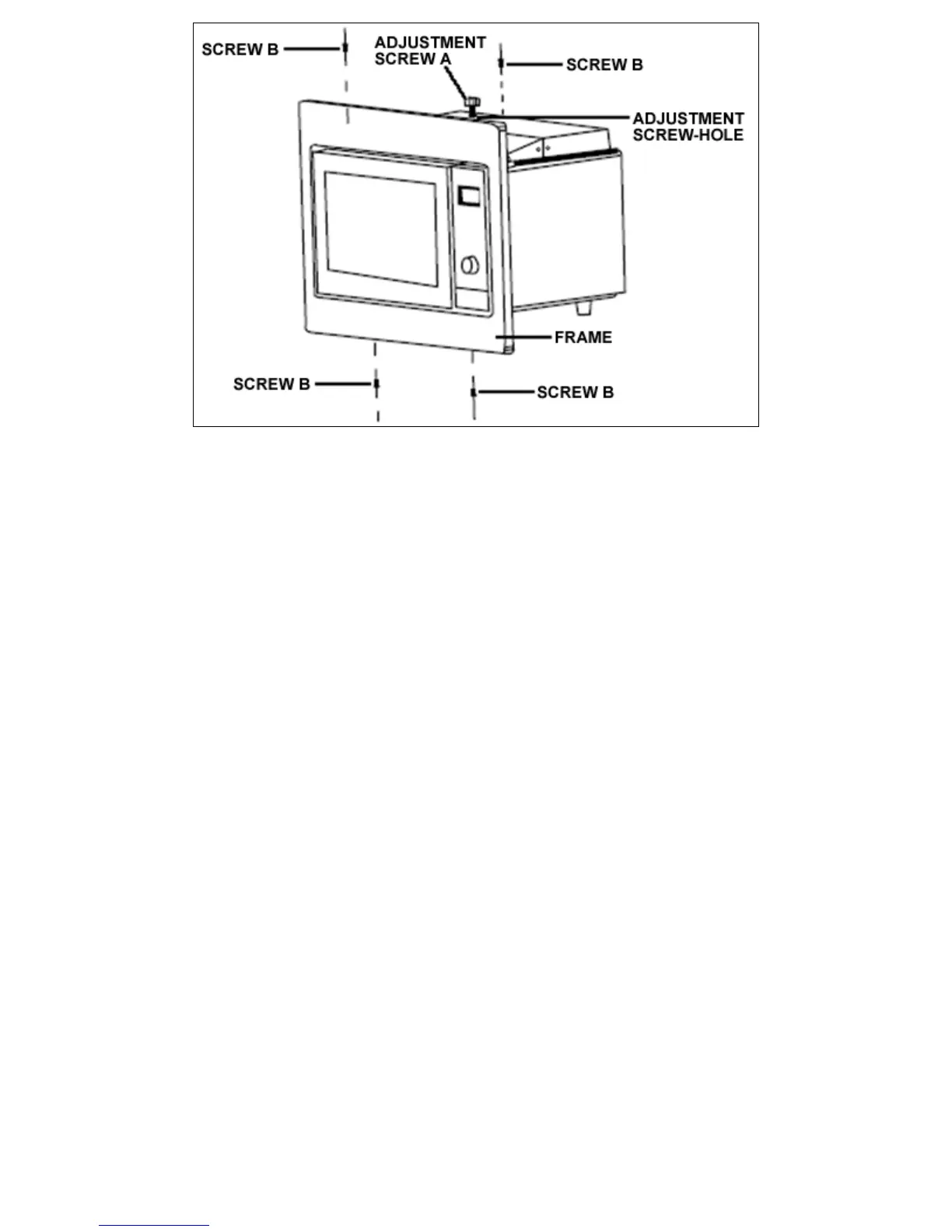

o Fit adjustment screw A into the adjustment screw-hole on the
top of the microwave. Adjustment screw A should not be fully
tightened at this stage.
o Use screw B (x 4) to fix the frame to the microwave. These
screws must be fully tightened.
o Ensure that the gap between the microwave and the frame is the
same on the top and bottom.
o Ensure that the gap between the microwave and the frame on
the left hand side is no less than 9 mm.
30
