24
Installing your refrigerator

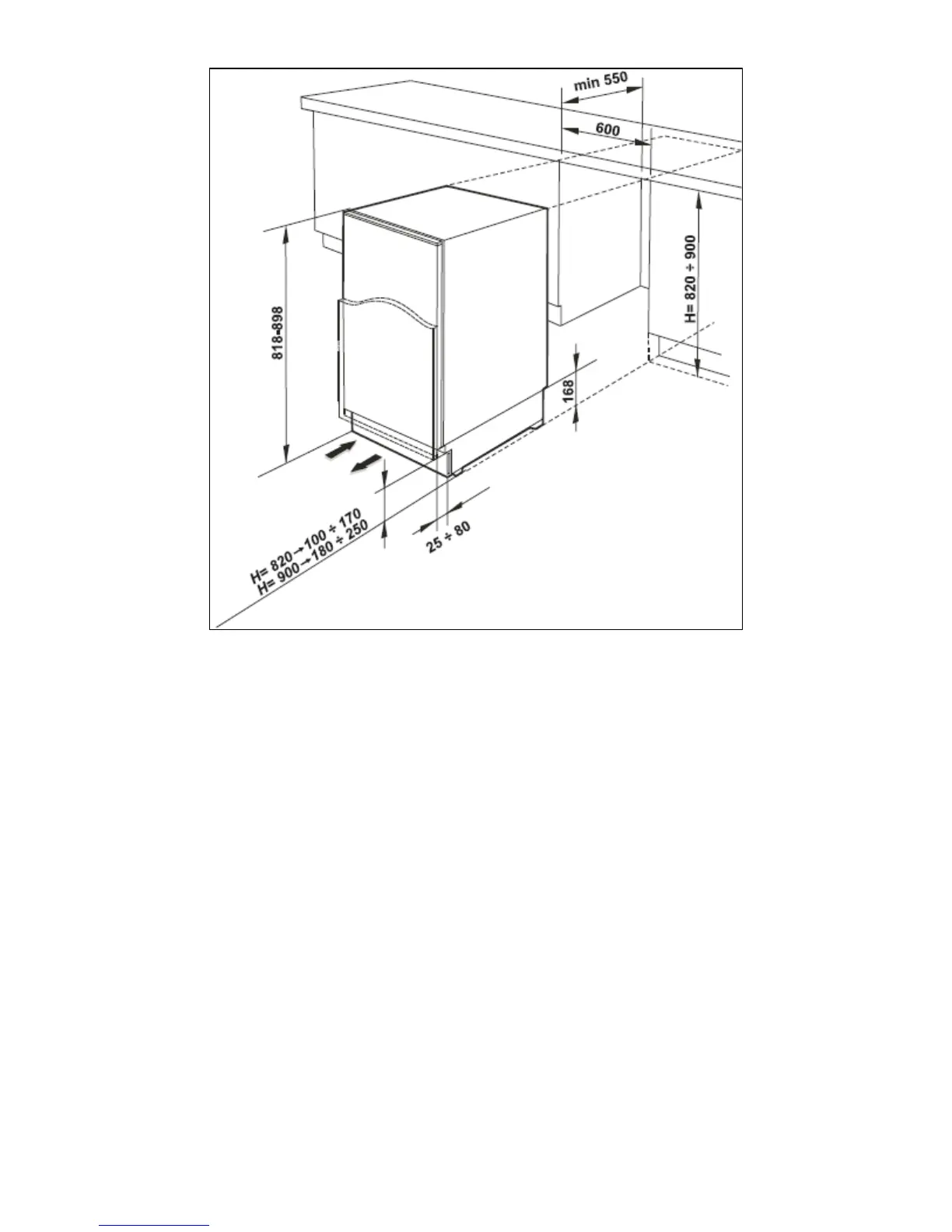

o You need to ensure you leave the ventilation spaces marked in
the diagram above.
o Ensure there is a sufficient space behind the cooling coils at the
back of your fridge.
o After removing the rear wall of the cabinet, push the appliance
into the kitchen unit’s space and allow at least 4 mm free space
on both sides between the appliance and the side walls of the
kitchen unit. Allow 38 mm space between the back of the fridge
and the wall.
