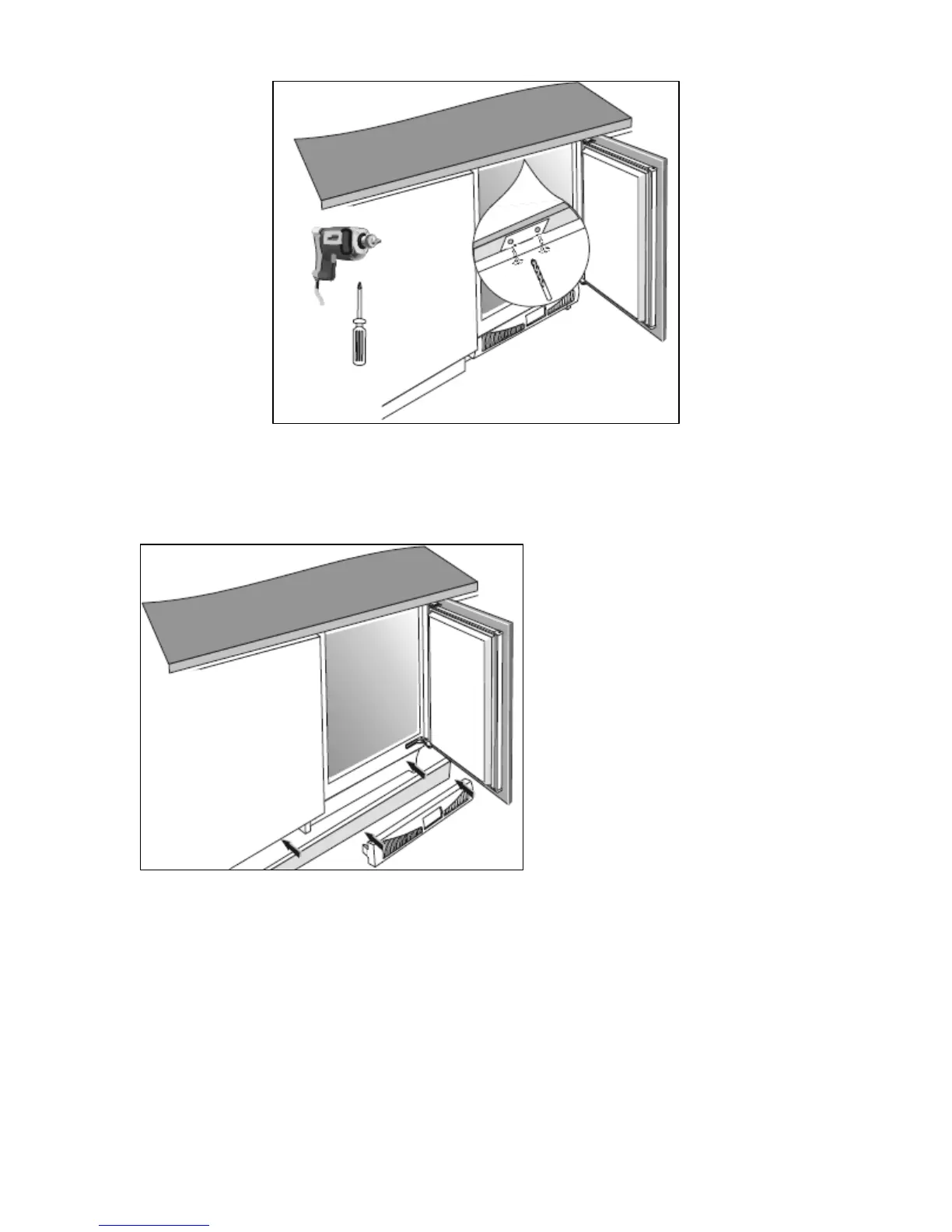

Fastening the refrigerator to the worktop
o Drill two holes into the underside of the worktop in accordance
with those at the top of the refrigerator. Attach the fridge to the
worktop as shown in the diagram above.
o Finally, place the
plinth fascia over the
area at the base of the
appliance, as indicated
by the arrows in the
diagram to the left.
o Gently push the plinth
fascia until it slots into
place.
