26
measurement A to obtain the correct door space to leave above
the hanging rail.

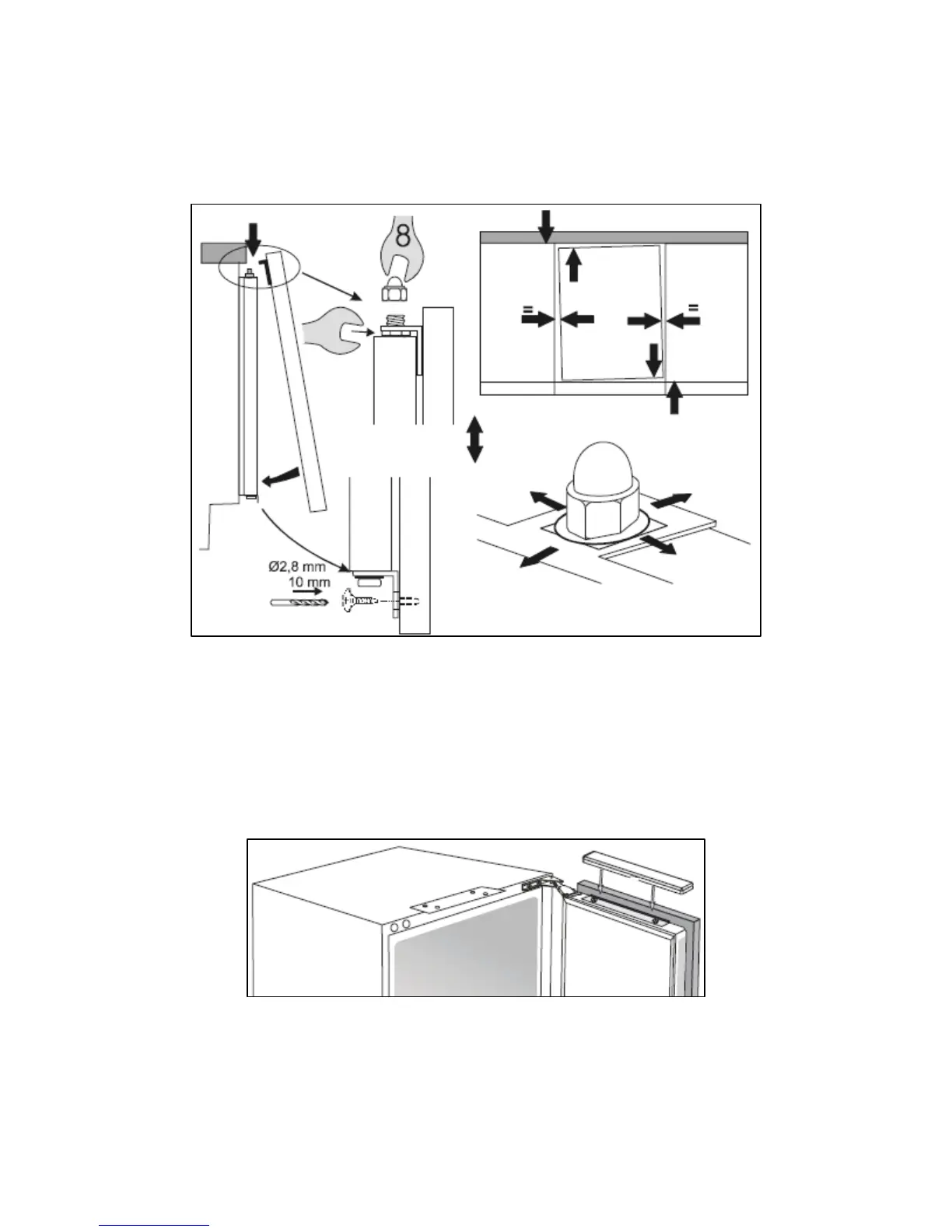

o Fix the hanging rail onto the inside of the décor door using two
10 mm screws, centering it so that 262 mm of its width is on
either side of the imaginary vertical middle line of the décor door
as shown in the illustration above.
o Clasp the eyelet holes in the hanging rail on the inside of the
décor door over the bolts protruding from the top edge of the
refrigerator door.
o Secure these using the nut caps provided, as shown in the
illustration above. Ensure that you have the décor door attached
levelly before you proceed to the lower fastenings.
o Fasten the door holder cover into the top of the refrigerator door
as shown in the above diagram.
