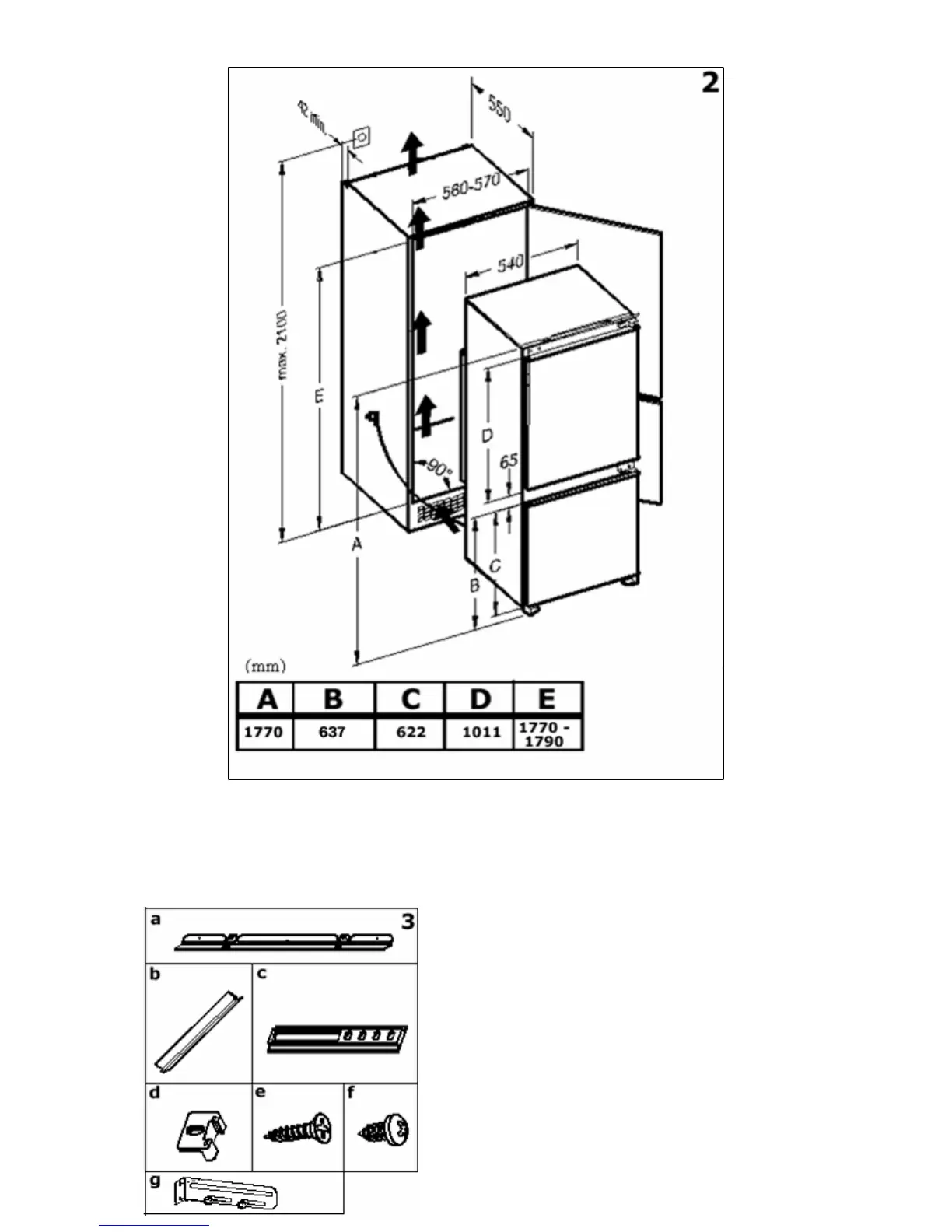

Aperture and appliance dimensions
2) Figure 2 shows the aperture size that you will need to be able to
install your appliance.
o The appliance must be stood on a level floor. You can use the
leveling feet to take into account any minor unevenness in
the floor.
Supplied installation components
a) Top fixing bar
b) Sealing strip
c) Door slider
d) Door guide
e) Fixing screws (Ø4 x 17)
f) Fixing screws (Ø4.2 x 9.5)
g) Central support bracket
22
