Installing the spacers
o Remove the spacers from the accessories provided with the
appliance.

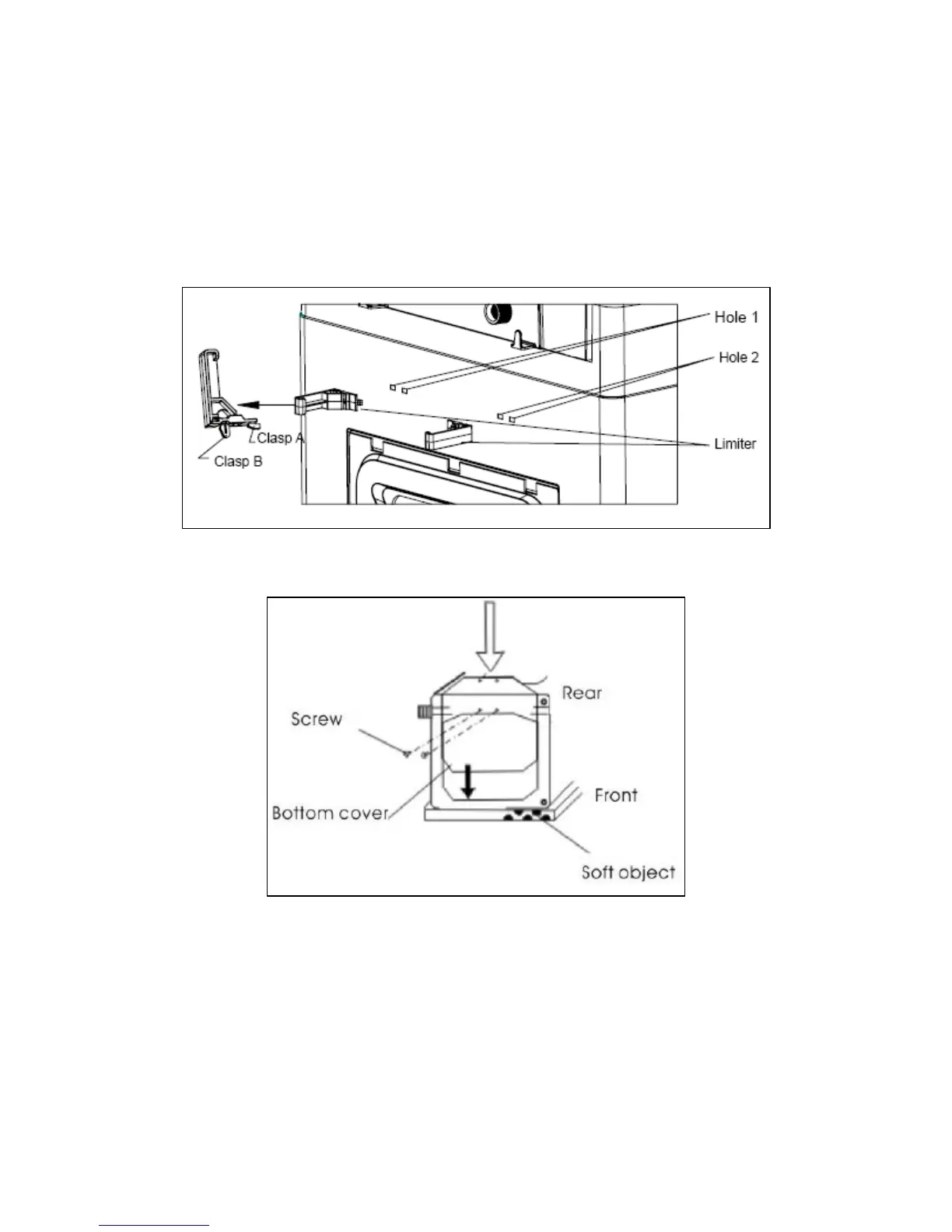

o Each spacer has two clasps as shown in the drawing below.
Ensure that clasp A is secured to the right hand slot of hole 1.
Clasp B should be secured to the left hand slot of hole 1.
o Fix the second spacer to hole 2 using the same method as
above.
Installing the bottom cover
o The bottom cover should be placed between the machine case
and the foam lining.
o After unpacking the machine, turn the appliance upside down
gently onto a soft surface such as a towel or blanket.
o Insert the bottom cover in the groove on the base from the back
of the machine and fasten it in place with the self-tapping screws
supplied.
