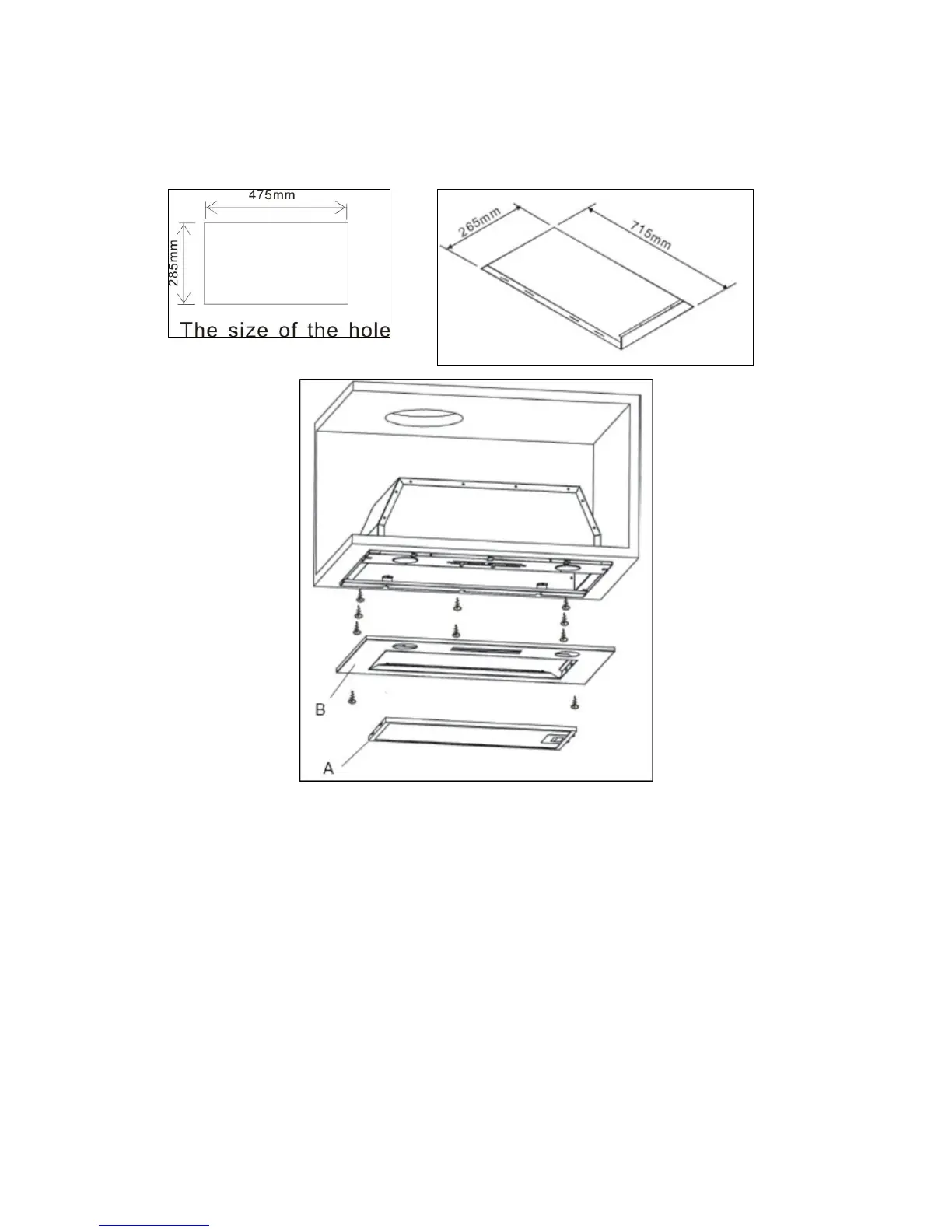

2) Create an opening in the underneath of the kitchen unit; the cut-
out must be of the dimensions shown in the drawing below.
CAN52.3ME CAN75.3SS
o IMPORTANT: If you are going to connect your cooker hood to
external ducting, then you must complete the steps listed in the
“Connecting to external ducting” section before carrying on with
the rest of the installation (this information can be found on
page 20).
3) Make a hole in the inside of the kitchen unit for the electrical cable
to feed through. Remove the 2 screws (4 screws for CAN52.3ME)
securing the extractor frame (B) to the hood and unscrew the 2 lights.
Ensure that the two support clips on either side of the hood are set to
accommodate the thickness of the mounting surface, by adjusting the
clip via the screw.
