4) Lift the cooker hood towards the cut-out that you made in step 2.
Feed the electrical cable through the hole that you made in step 3.
IMPORTANT: Do not connect the electrical cable to the mains supply
at this stage.
5) Lift the cooker hood fully into the cut out that you made in step 2.
If you are connecting the cooker hood to external ducting, then secure
the ducting hose to the coupling on the appliance.
o One person should support the hood. The other person should
fully tighten the support screws through the pre-drilled holes in
the outer frame of the hood, into the kitchen unit. Then replace
the extractor frame using the 2 screws (4 screws for
CAN52.3ME) (B) and reattach the 2 lights.
o Refit the grease filter.

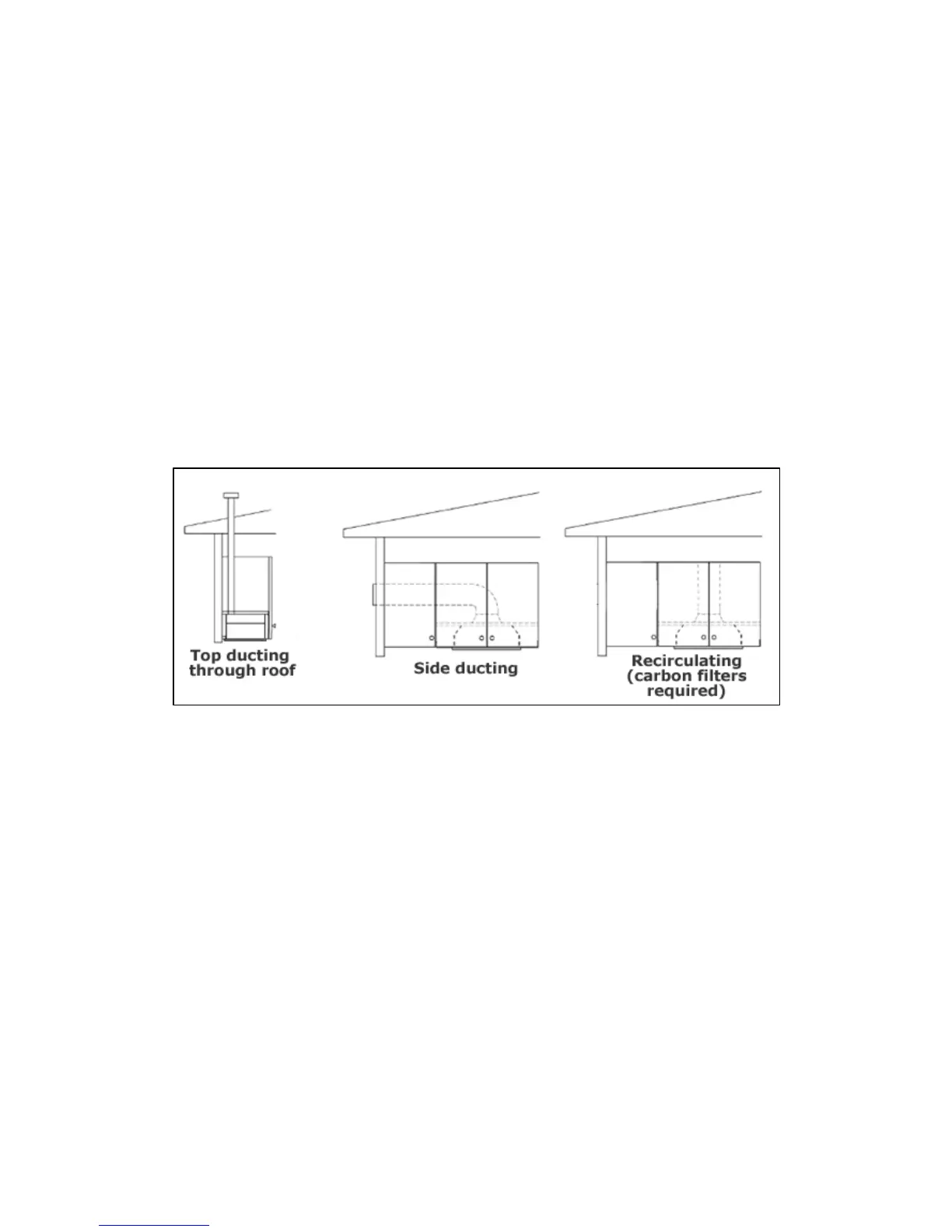

Connecting to external ducting
o Connect the coupling to the top of the cooker hood, using two of
the smaller screws provided.
o Connect a Ø125 mm ducting hose to a discharge outlet that is
suitable for cooking vapours.
o The discharge outlet should have a cross section of at least 150
cm² (please note that the ducting hose is not supplied with the
appliance but one can be obtained from the Baumatic Spares
Department).
o The maximum distance between the coupling and your discharge
outlet should be 3 metres, with one 90 degree bend. For each
additional 90 degree bend, the maximum distance is reduced by
a further metre.
