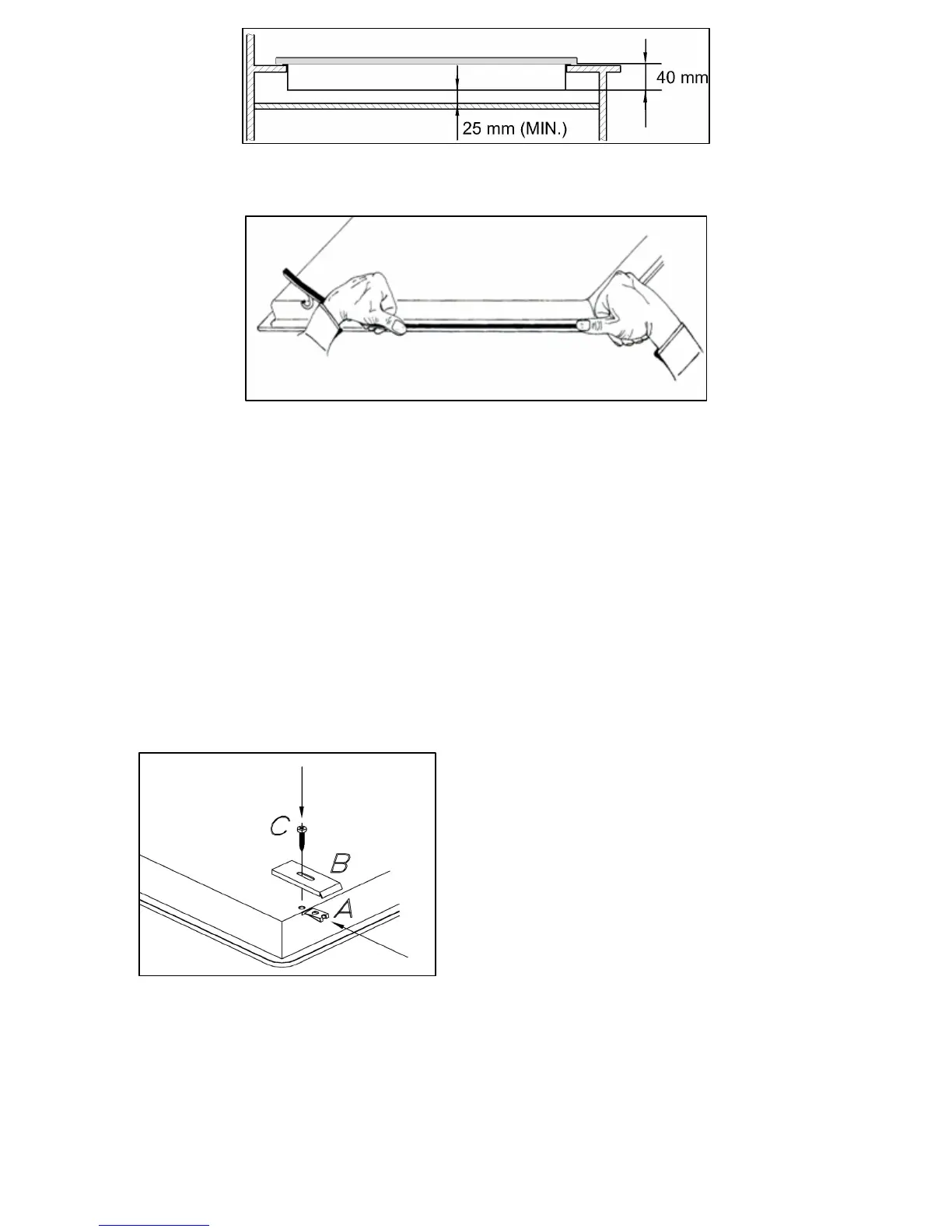

o IMPORTANT: You must have a gap of at least 25 mm between
the underneath of the appliance and any surface that is below it.
o Carefully turn the hob upside down and place it on a cushioned
mat.
o Apply the sealing strip provided around the edge of the
appliance.
o The protective covering must be removed from both sides.
o Do not leave a gap in the sealing agent or overlap the thickness.
o IMPORTANT: Do not use a silicon sealant to seal the appliance
against the aperture. This will make it difficult to remove the hob
from the aperture in future, particularly if it needs to be
serviced.
(A) Clip
(B) Fixing bracket
(C) Screw
o You should insert a clip (A) into the holes which are located in
each corner of the hob.
24
