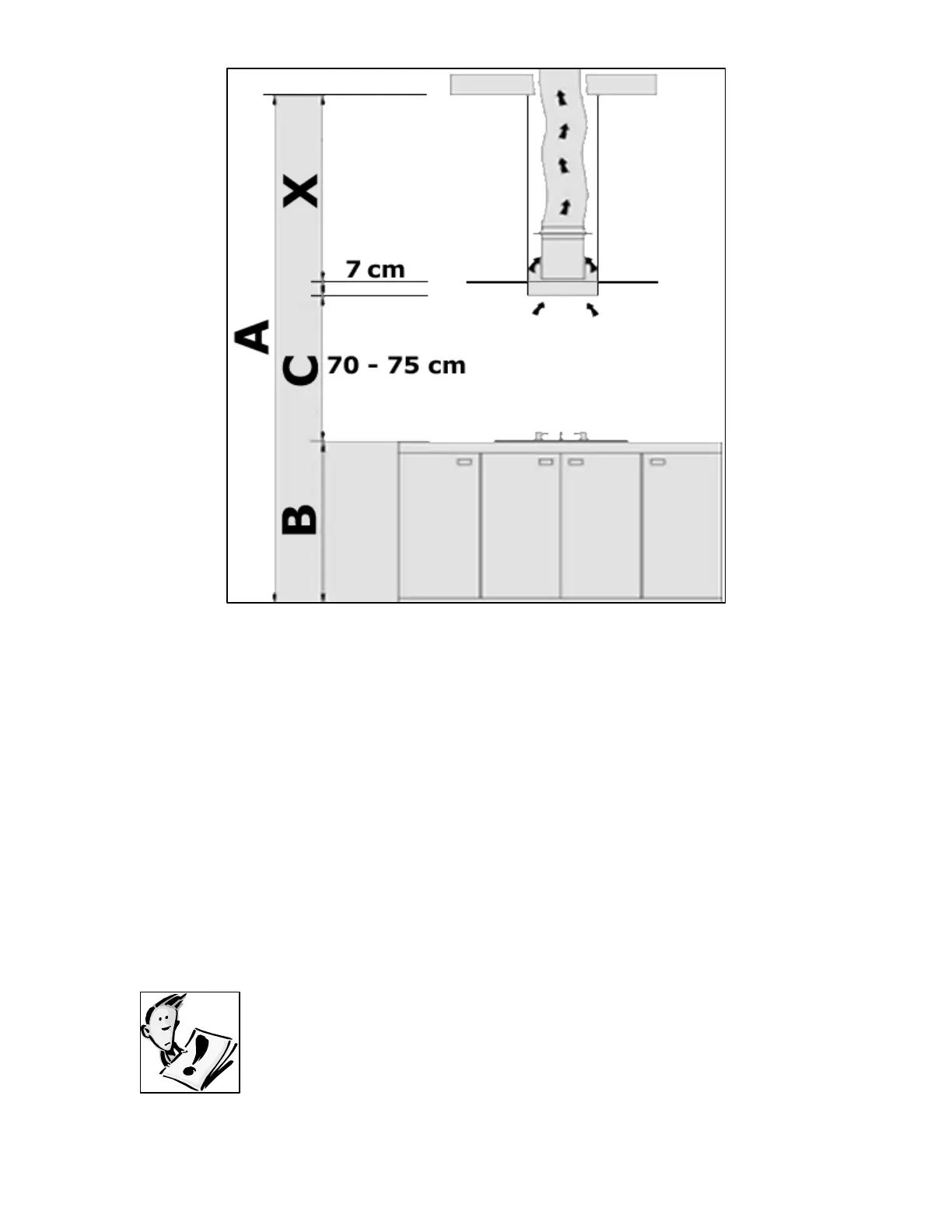

Positioning
X = Height of the appliance
A = Total height of the kitchen
B = Height of the worktop
C = Distance between the hob and the hood
7 cm = Height of the hood canopy
o To work out the height of the appliance, you need to use the
following formula: X = A – (B + C + 7 cm).
o The overall height of the appliance should be calculated
according to the height of the chimney sections. You must allow
yourself sufficient space to make the electrical connections and
connecting the ducting hose (if required).
IMPORTANT: Your ceiling should have a minimum
height of 2.7 metres; otherwise you may encounter
difficulties when installing the appliance.
