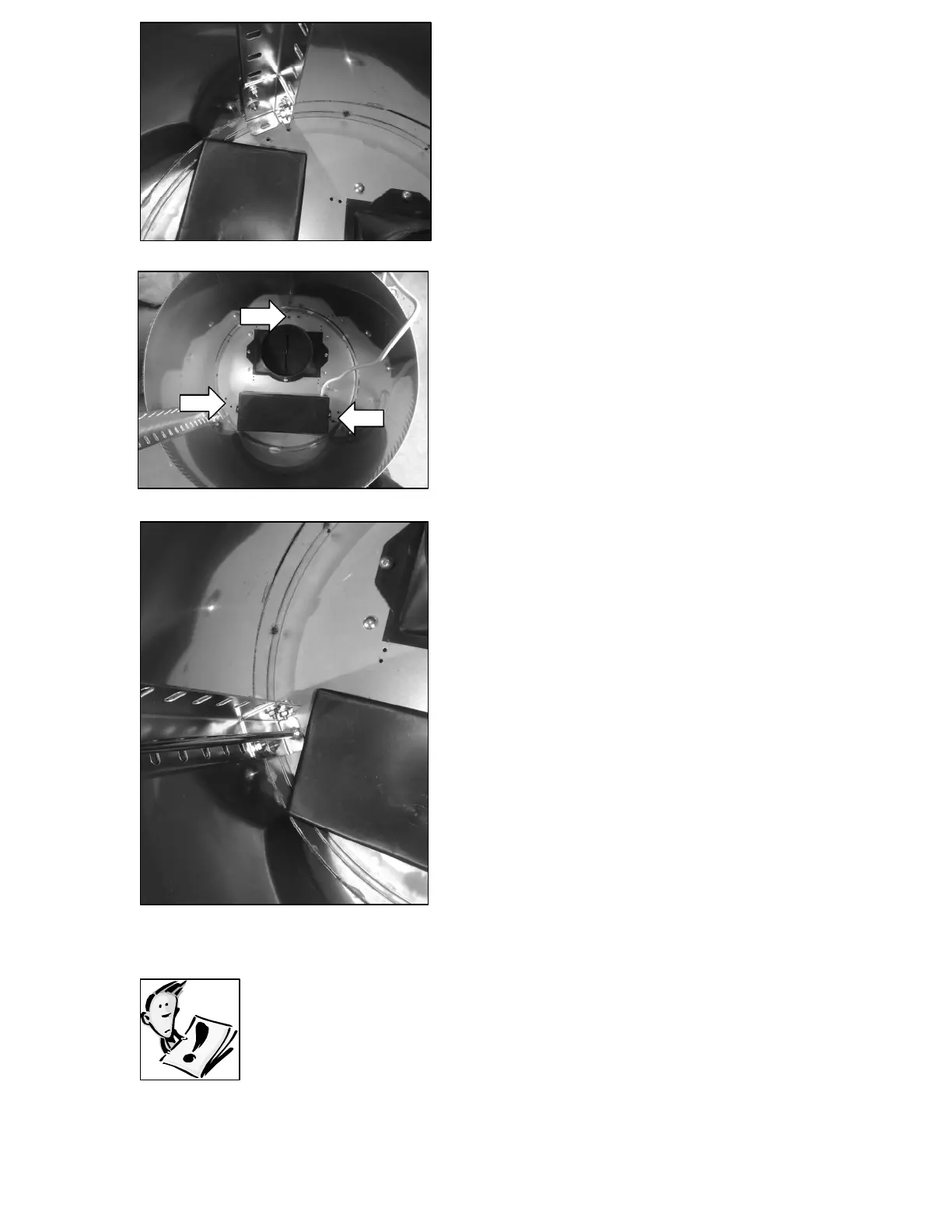

4) Locate the holes on the top of the
main body of the cooker hood that you
fix the connector pieces and angle
bars to.
o The positions of the holes are
indicated in the line drawing
opposite.
5) Use the 10 mm x M4 nuts and bolts
with metal washers (6 pcs) to secure
the main body of the hood to the angle
bars.
o IMPORTANT: The nuts should
be fitted to the underside of
the holes and fully tightened.
o IMPORTANT: All of these
screws MUST be fully
tightened with a screwdriver.
o If you are going to be using the
hood in extraction mode, you
should fix the ducting hose to
the spigot that you fitted in step
3.
IMPORTANT: The next stage of the installation
process MUST be completed by two people. The
cooker hood MUST be supported from underneath
until it is fully secured to the hanging plate.
26
