Positioning
The adjacent furniture must be able to withstand a
minimum temperature rise of 85°C above the ambient
temperature of the room it is located in, during
periods of use.
o This appliance can be located in a kitchen, a kitchen diner or a
bed sitting room. IMPORTANT: The appliance must not be
installed in a bathroom or shower room.

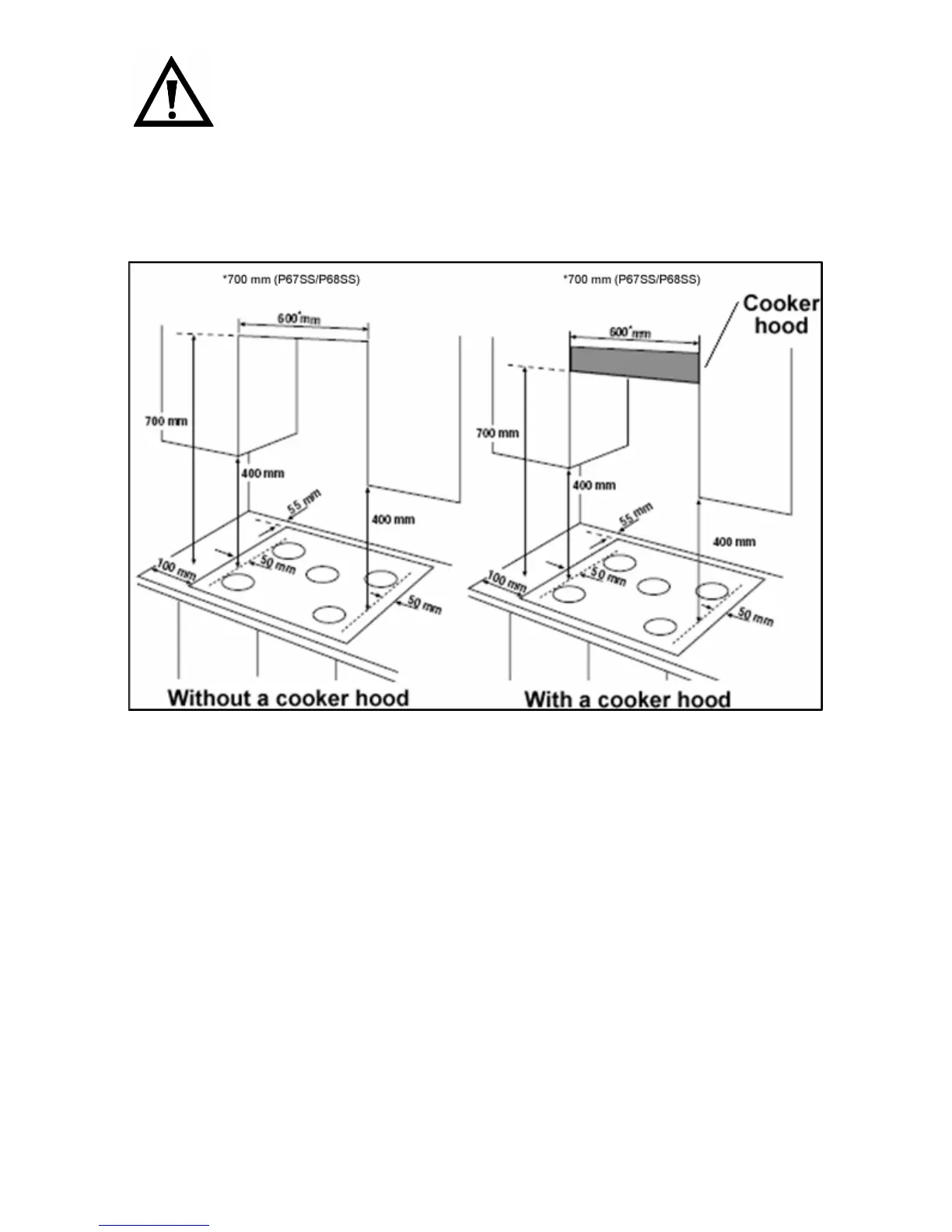

This appliance is classified as Class 3 and therefore is to be built into a
kitchen unit (depending on size) or 600mm worktop, providing the
following minimum distances are allowed:
o The edges of the hob must be a minimum distance of 55 mm
from a side or rear wall.
o 700 mm between the hob surface and the underside of any
horizontal surface directly above it.
o 400 mm between the hob surface, providing that the underside
of the horizontal surface is at least 50 mm away from the outer
edge of the hob.
o 50 mm clearance around the appliance and between the hob
surface and any combustible materials.
