4.5.3. Defectpixellist
As stated previously, this list is determined within the production process of Baumer cam-
eras and stored in the factory settings (see 4.8.1.).
Additional hot or cold pixels can develop during the lifecycle of a camera. In this case
Baumer offers the possibility of adding their coordinates to the defectpixellist. The user
can determine the coordinates
*)
of the affected pixels and add them to the list. Once the
defect pixel list is stored in a user set (see 4.8.), pixel correction is executed for all coor-
dinates on the defectpixellist.
4.6. Process Interface
4.6.1. IOCircuits

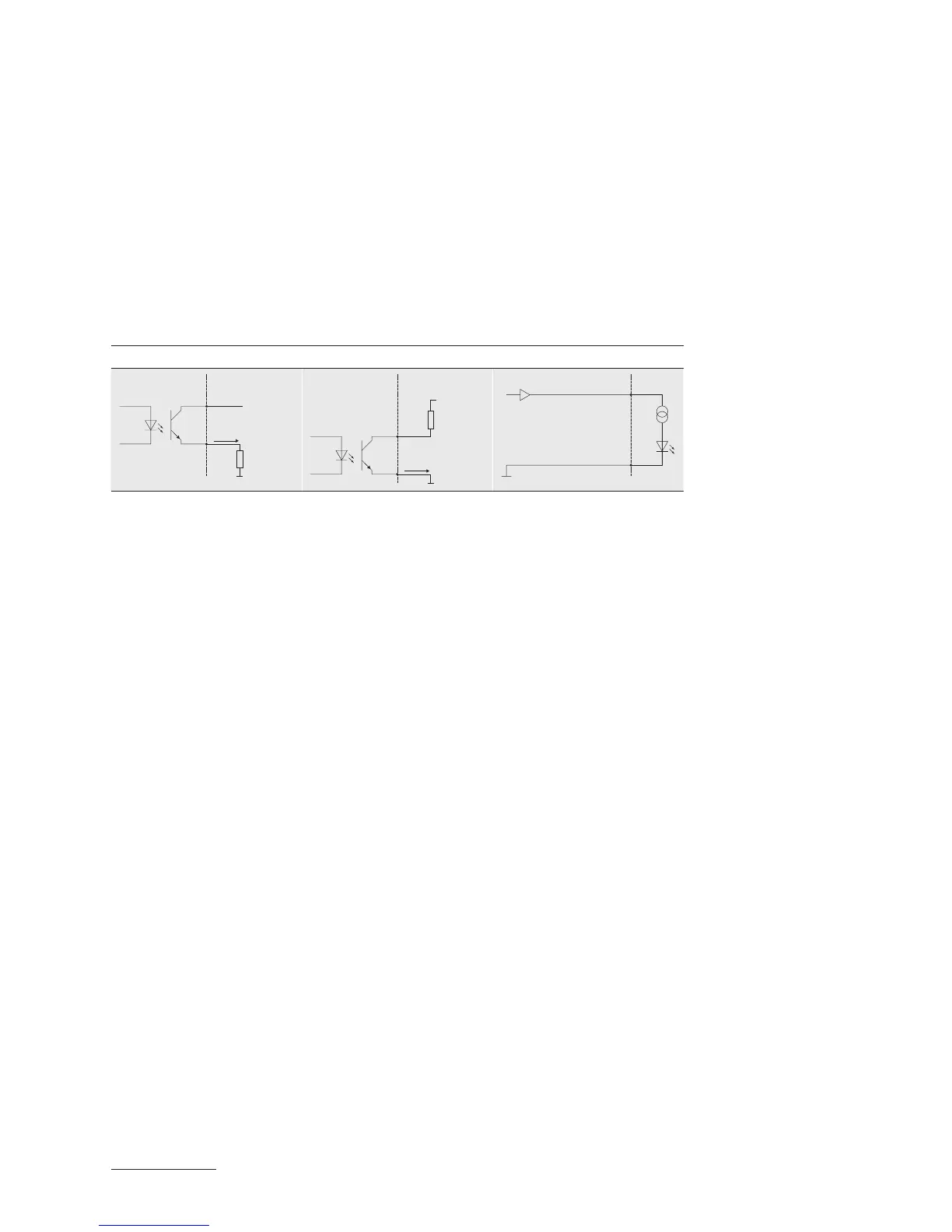

Outputhighactive Outputlowactive Input
Camera Customer Device
IO Power V
CC
R
L
I
OUT
IO GND
Camera Customer Device
IO Power V
CC
R
L
I
OUT
IO GND
CameraCustomer Device
IO GND
DRV
*) Position in relation to Full Frame Format.
