Installation
Mono Power Unit BUM 62 T 41
Baumüller Nürnberg GmbH 5.99009.03

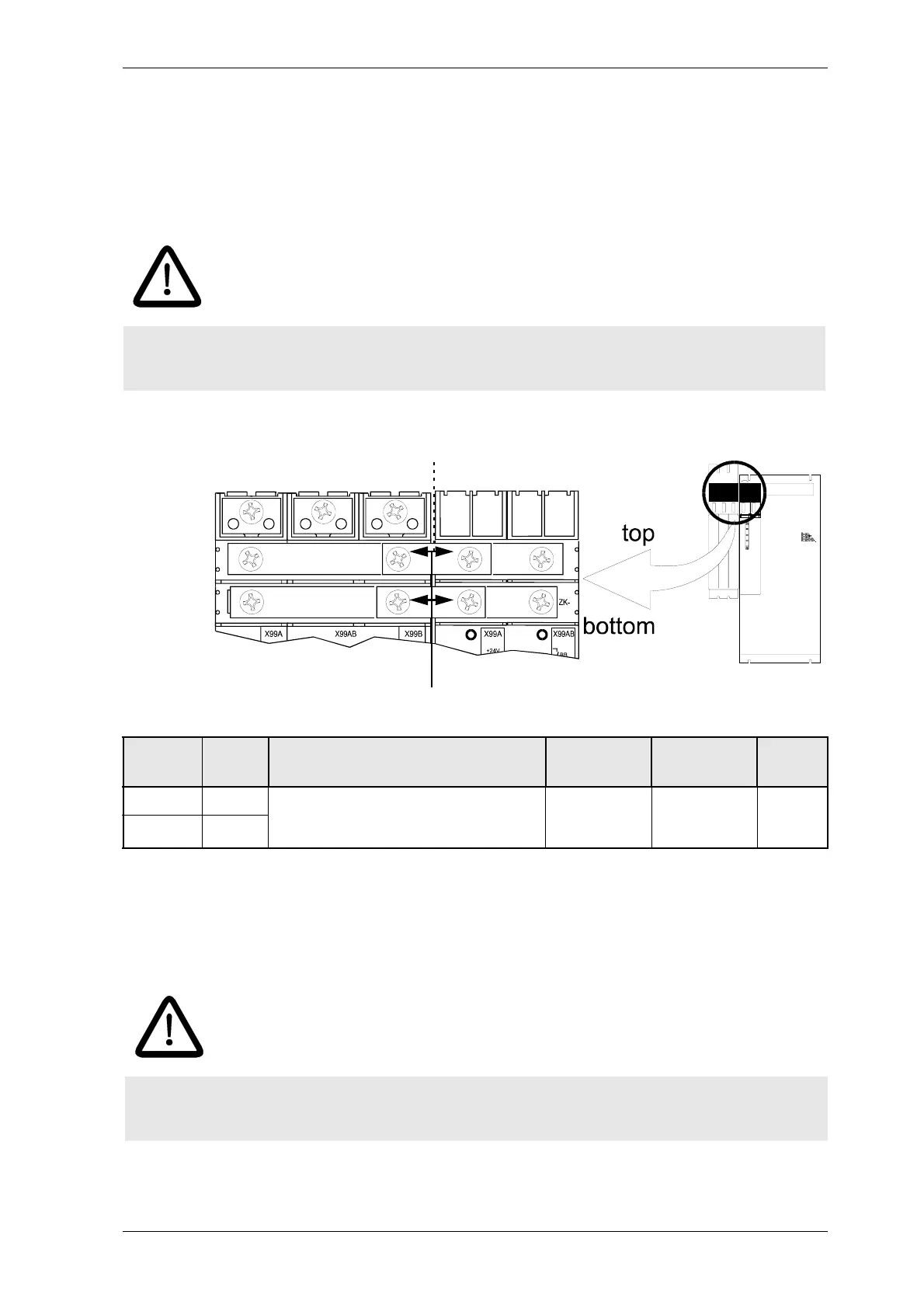

DC link terminals ZK+ and ZK- (adding units)
If a Baumüller unit is added to the BUM 62 T, connect the DC links of both units.
If you add power modules, the supply converter of the BUM 62 T supplies the connected power modules.
The individual modules exchange energy (e.g. during braking).
.
Screw connections for bar connection M6
1. Position
2. Voltage range (r.m.s. value)
3. Current range (r.m.s. value)
4. Conducting cross-section of the bars
DANGER
The total power of the motors supplied via the power modules which are connected to the BUM 62 T
must not be higher than the power which can be supplied from the supply converter of the BUM 62 T.
Termina
l
Pos.
1)
Description U
range
2)
I
range
3)
A
4)
ZK+ top DC link connection
Connection of two Baumüller units
between
ZK+ and ZK-
max. 800 V
DC
max. 65 A 16 mm
2
ZK- bottom
DANGER
Reassemble and tighten the supplied covers after having connected the DC links of the two units
using a bar.
