Baumuller DS 100 User Manual

TAM 00624 21
DS 100 – 200 03 / 2005
Three-phase synchronous motor, air-cooled English
Terminal marking / fan connection
Fan connection for standard fan motor via
terminal box

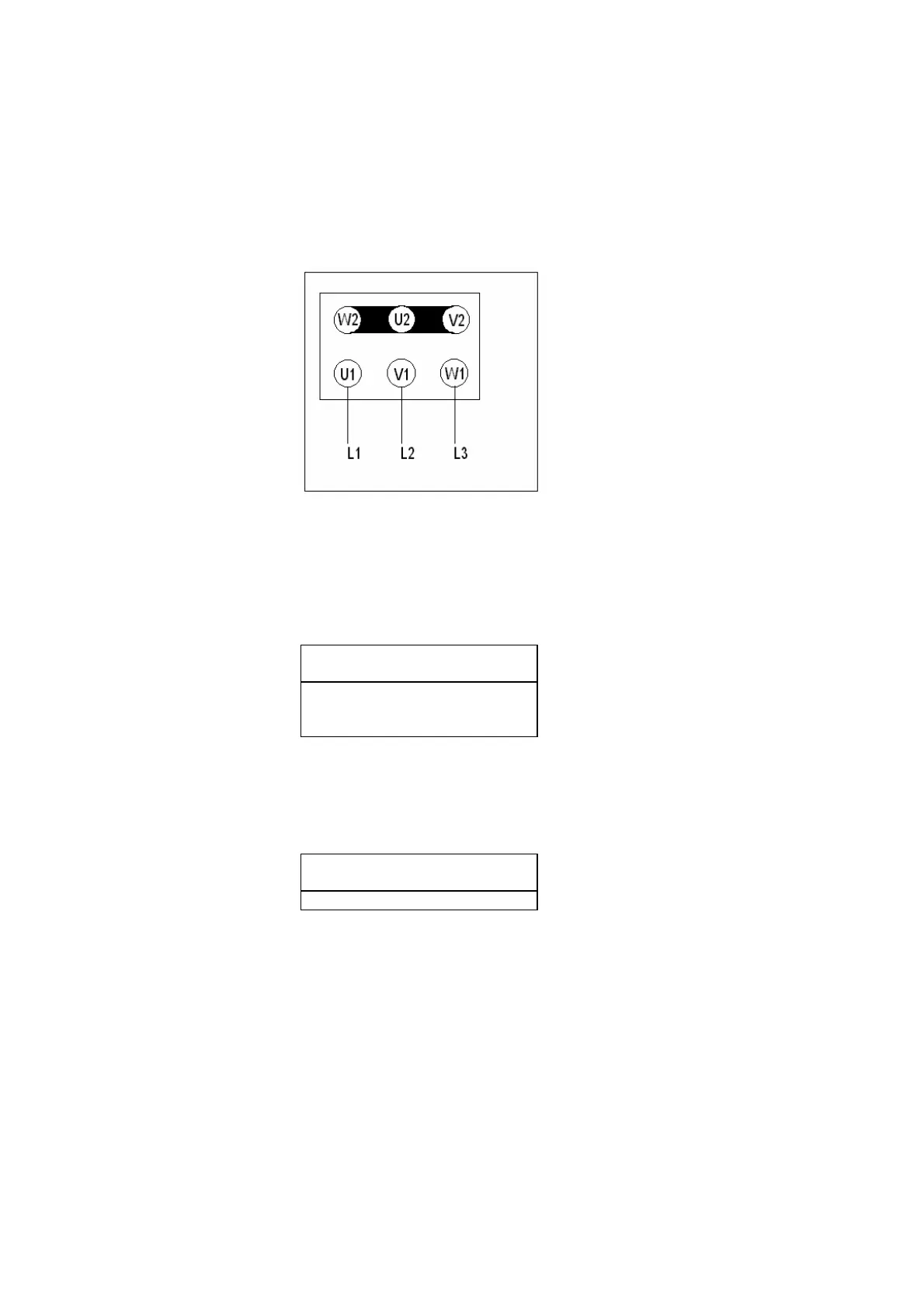

Connection diagram
U V W Power connection
Axially added-on standard fan motor
Frame
Size
Rated current [ A ]
with Y
100 0,33
132 0,8
160 1,4
Radially added-on standard fan motor
Frame
Size
Rated current [ A ]
with Y
200 1,4
The standard fan motor serial design is for D/Y
200-265/345-460V 50/60Hz. The rated
currents are the maximum values.
