5

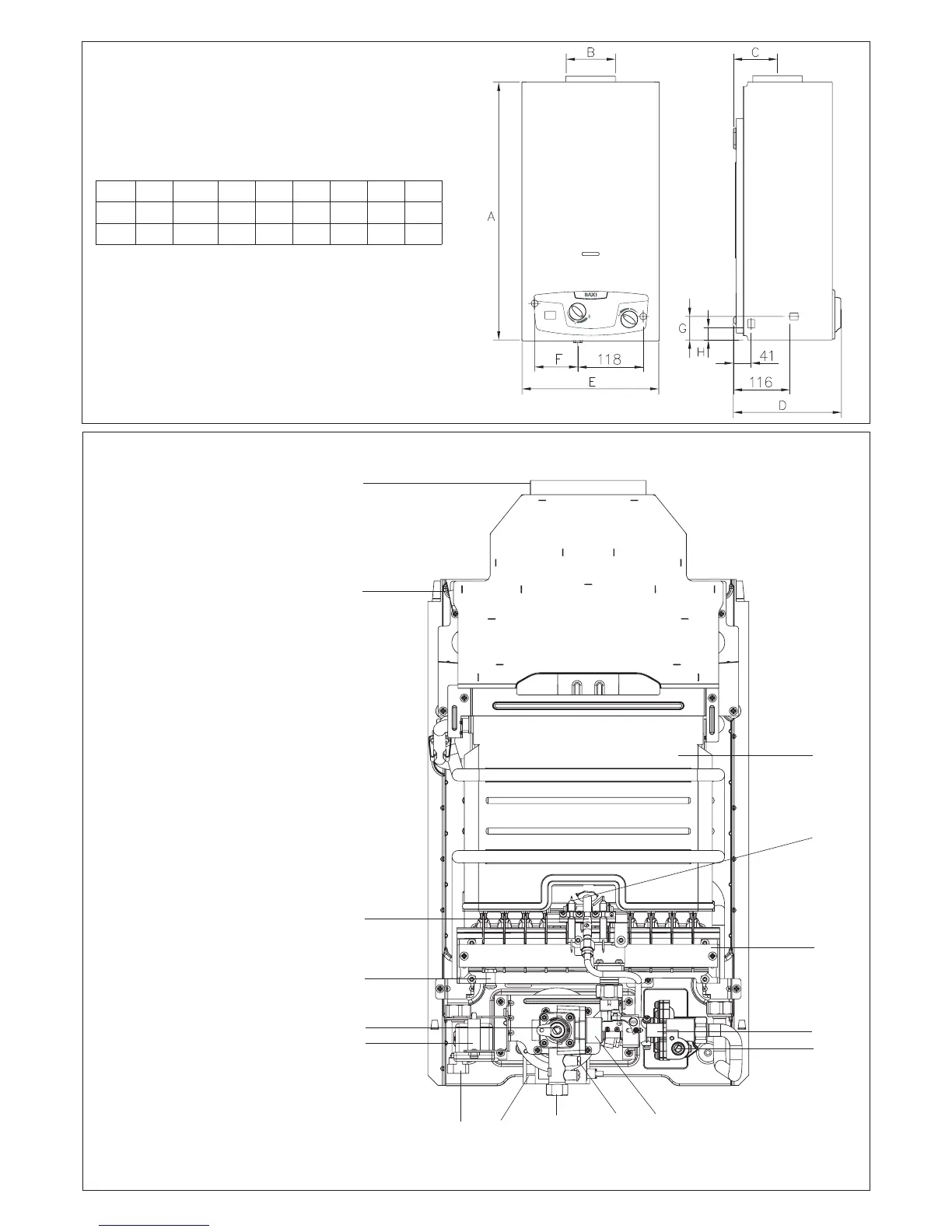

1 Flue gas release safety device
2 Release hood
3 Heat exchanger
4 Ignition electrode
5 Burner
6 Hydraulic valve
7 Temperature regulator
8 Gas valve
9 Gas input
10 Gas adjustment screws
11 Electronic devices
12 Battery box
13 Economiser
14 Gas pressure intake
15 Pilot burner
16 Sensor
Fig. 1
Misure in mm
A B (Ø) C D E F G H
11i 592 110 101 245 314 97 54 25
14i 650 130 101 245 365 117 74 45
1
2
3
4
5
6
7
89
10
11
12
13
14
15
16
Fig. 2
