FITTING THE OUTER CASE - Page 13
Baxi Baroque Super

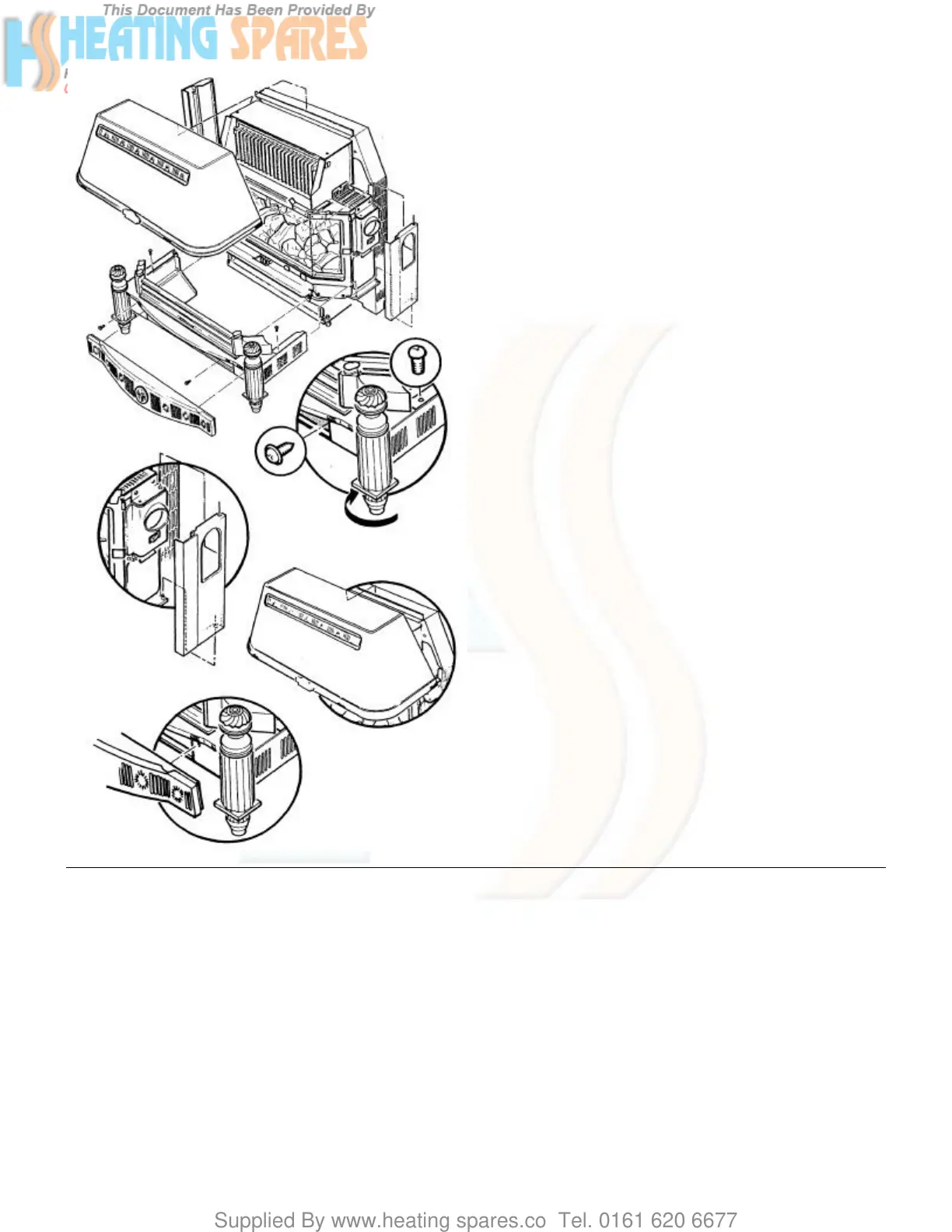

Turn off the fire and fit the outer case components as
follows:
Remove the fender front from the hearth assembly by pulling
forward.
Engage the hearth assembly on the side ledges as shown
and push home as far as possible. Adjust the feet to touch
the fireplace hearth. Fix the hearth assembly in position
using the two N° 8 x
5
/
8
in screws in the front and the two M4
x 8mm thread former screws in the sides.
Hang the left and right hand side doors on the fittings as
shown and close the doors, ensuring that they lock in
position.
Fix the canopy by lowering it into position over the top edge
and then by gently easing the sides inwards, push home to
lock in place.
Locate the fender front in position at the front of the hearth
assembly and push home.
lnstruct the user in the operation of the fire controls and hand
over the user’s instructions and installation instructions,
giving advice on the necessity of regular servicing.
