7.2. TOUCH SCREEN WIRED CONTROL CONNECTION FOR CASSETTE
-

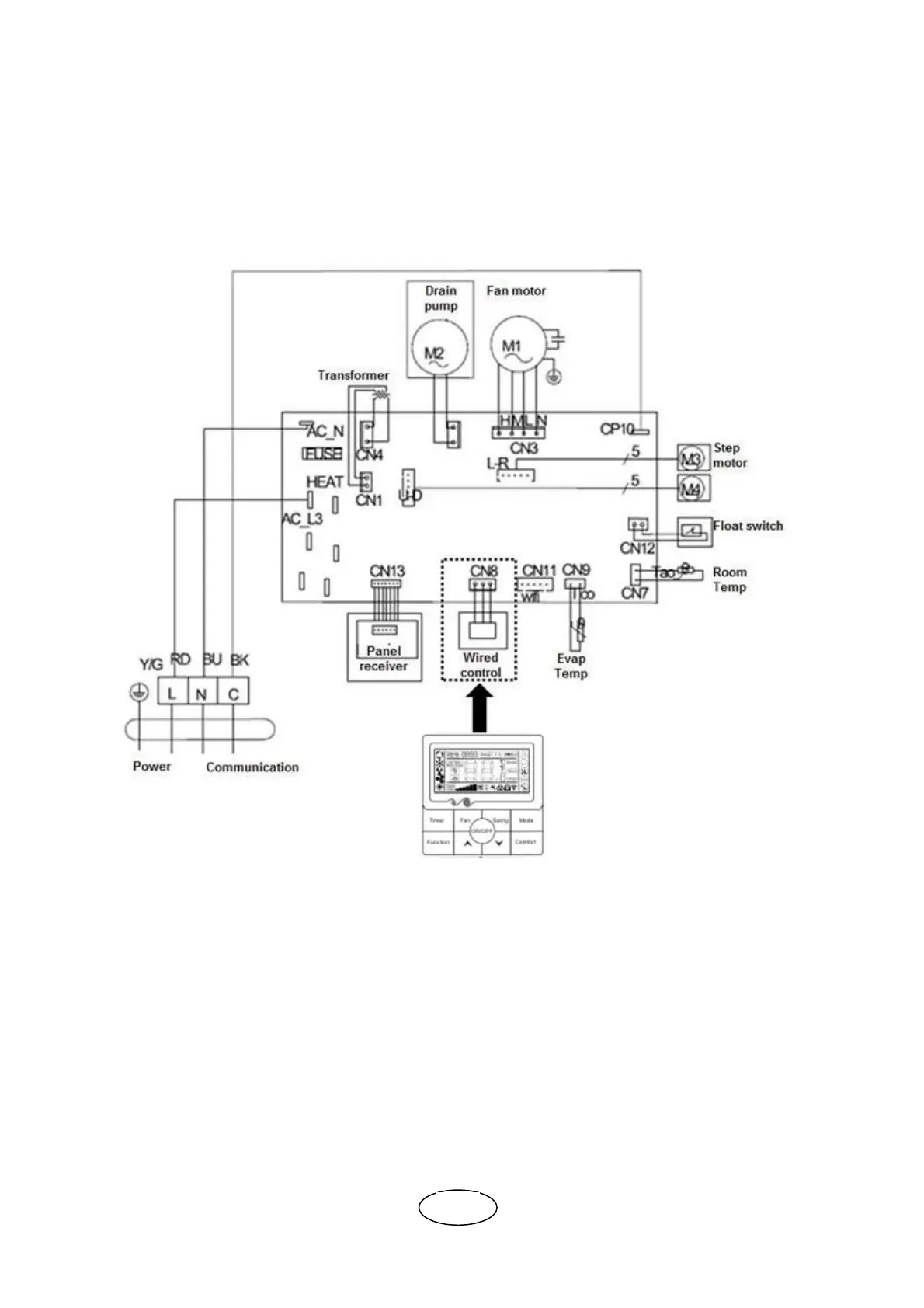

Connect the white control connector to the “CN8” connector of the indoor unit PCB
as shown in the following schema:
