4.0 User Controls
The controller will display certain information in the event of some system faults. The following table indicates these and will aid in describing the
nature of the fault to the Service Engineer. DO NOT attempt to rectify faults yourself, contact Technical Enquires on 0844 871 1568 or a qualified
Solar water heating engineer.

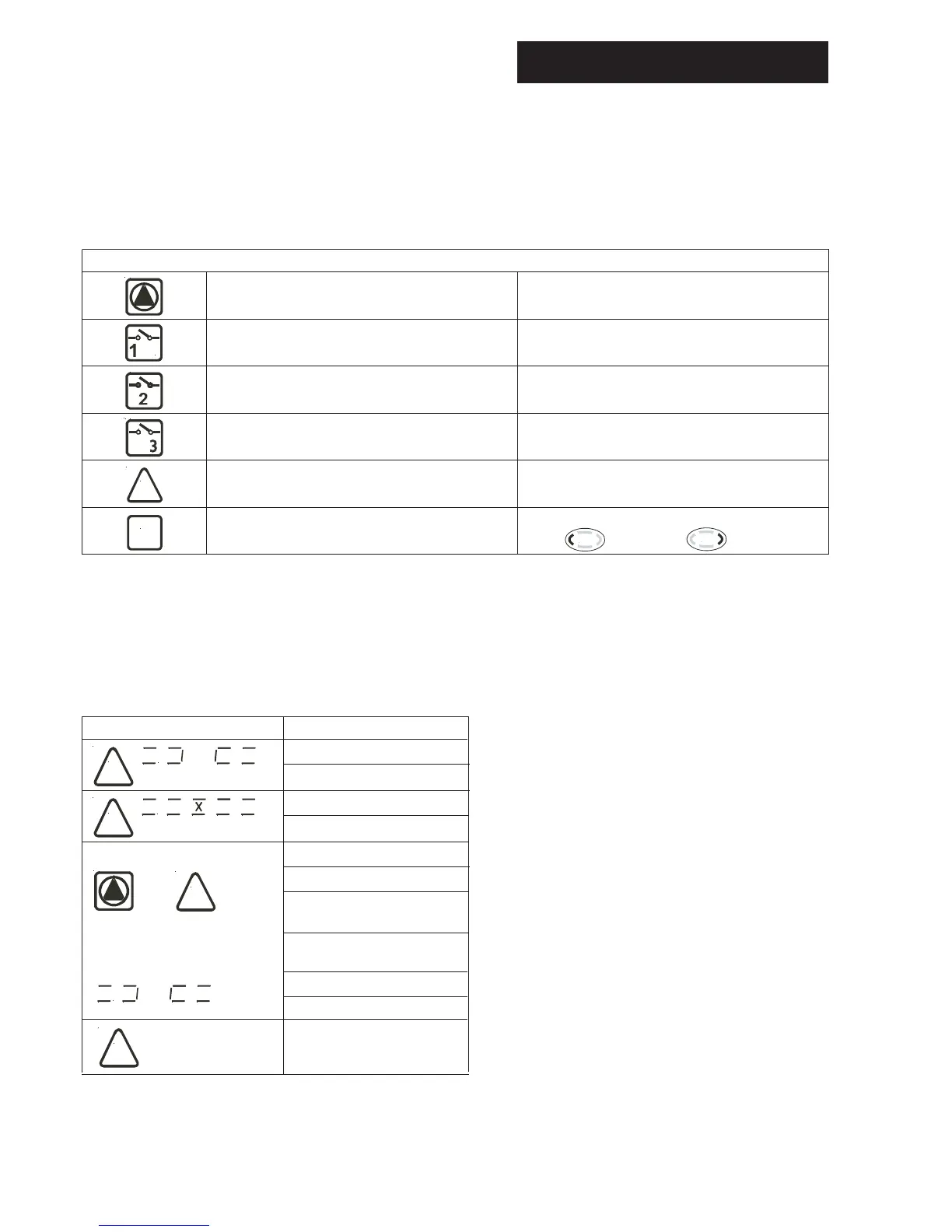

Error representation on display Possible reasons
flashing
• Sensor wire broke
• Sensor defect
flashing
• Short circuit in sensor wire
• Sensor defect
• Error in pump connection
• Pump defect
• Air in the system
• Connection with flow
meter defect
• Sensor wire broken
• Sensor defect
• Go back through menu to
identify fault or contact
Technical Enquires
!
!
!
+
Circulation error: no flow
Additionally at energy
productivity measurement:
flashing
!
Status indication
Solar circulation pump Symbol revolves when solar circulation pump is on
Switch output 1 is active Appears when switch output 1 is active (on)
Switch output 2 is active Appears when switch output 2 is active (on)
Switch output 3 is active Appears when switch output 3 is active (on)
Reference to system fault Display flashes when a fault occurs in the system
Safety query for value changes which are to be stored
Input value can be either
rejected or accepted
!
ok?
8
