Bayliner Ciera 2858 Command Bridge - Deck Wire Harness Routing

28 CHAPTER 3: ELECTRICAL ROUTINGS
Ciera 2858 Command Bridge
•
Owner’s Manual
Supplement
Deck Wire Harness Routings
BOW
LIGHT
HORN
WIPER
STBD
PORT
WIPERS
HALL
LIGHTS
DINETTE
LIGHTS
GALLEY
LIGHTS
MID BERTH
LIGHT
ENTRY
LIGHT
ENGINE HARNESS
SPEAKER
WIRES
V - BERTH
OVERHEAD
LIGHT
COCKPIT
LIGHTS
TO WINDLASS, RELAY
& DECK SWITCHES

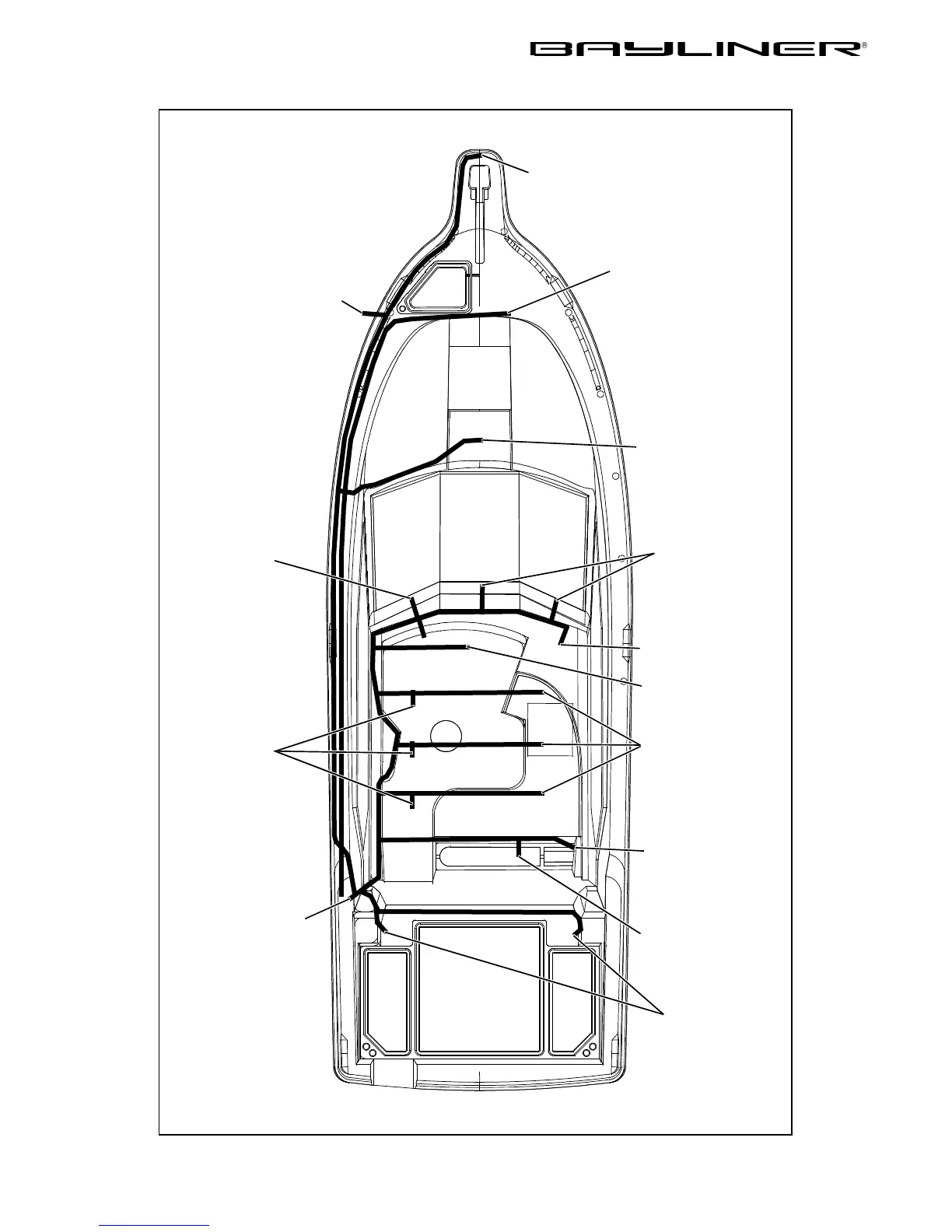

NOTE: VIEW IS OF THE UNDERSIDE OF THE MID DECK
