Bayliner Rendezvous - 2659 Model Diagrams

CHAPTER 4: SYSTEM DIAGRAMS 19
Rendezvous Owner’s Manual Supplement

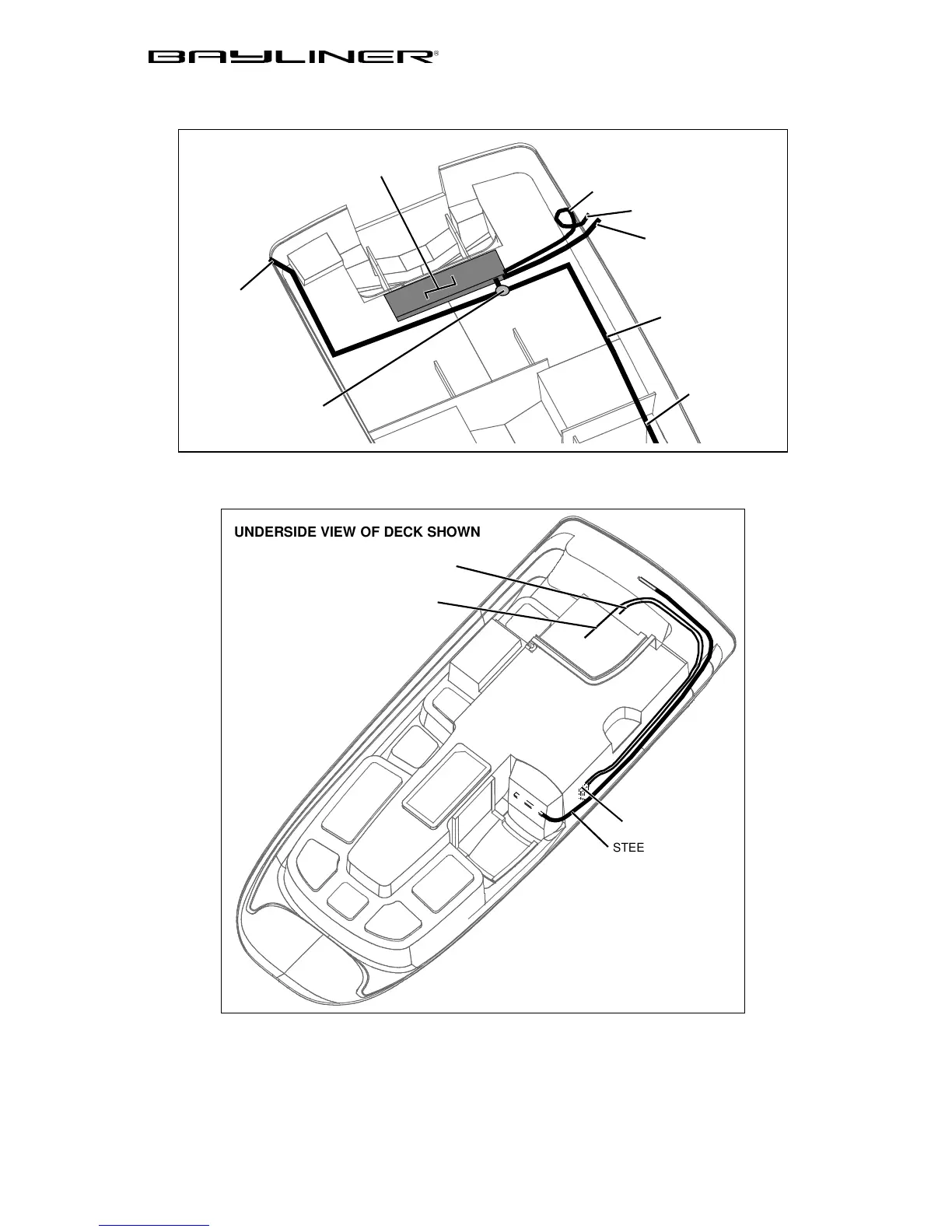

Freshwater System Routing (Option)
Steering & Shifter Cable Routing
FRESHWATER
TO SINK
TO TRANSOM
TO VENT
WATER HOSE
WATER FILL FITTING
TA NK
SHOWER
(TYPICAL)
VENT HOSE
2159
WATER PUMP
















UNDERSIDE VIEW OF DECK SHOWN
STEERING CABLE
SHIFTER
THROTTLE CABLE
SHIFTER CABLE
2159
