7
Assembly Instructions

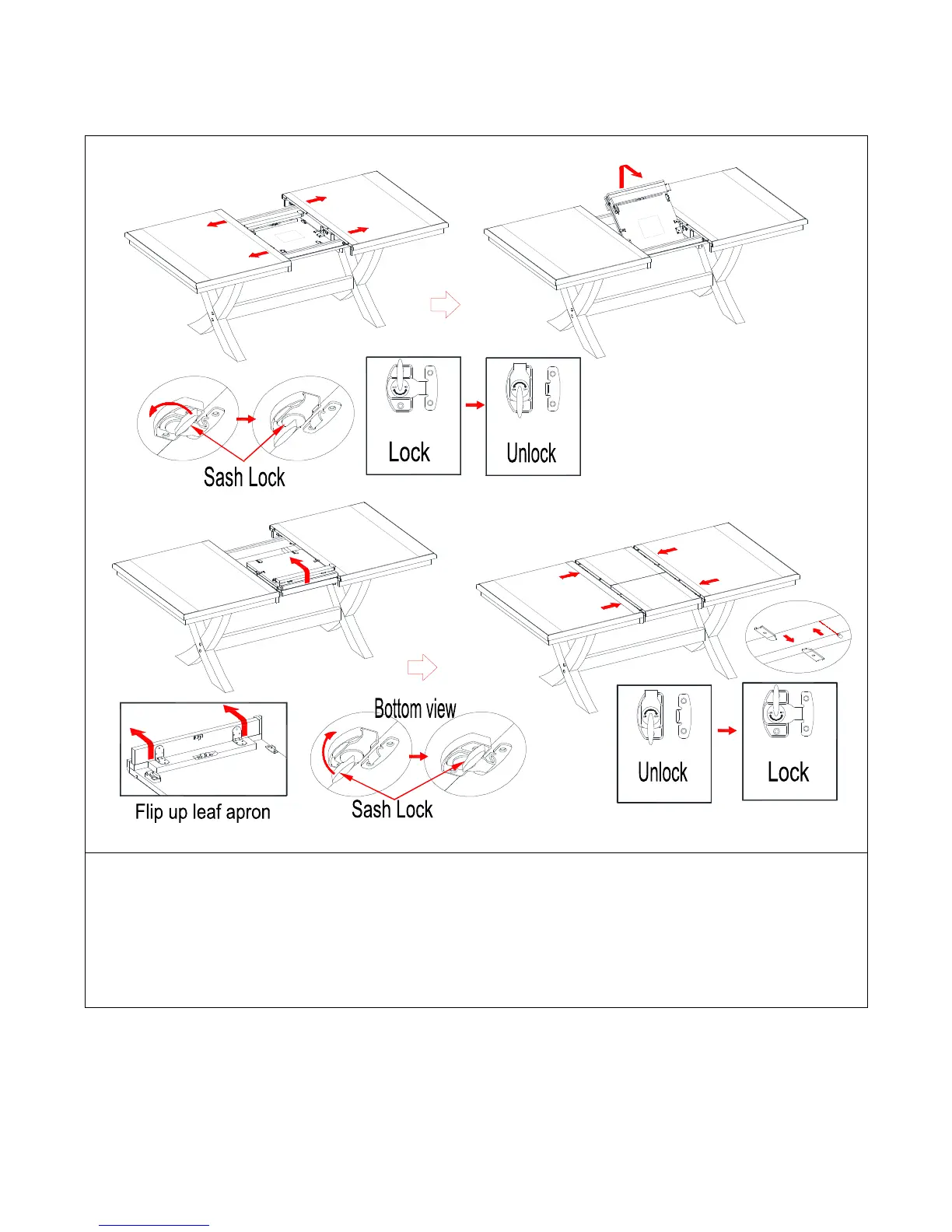

11. Unlock the sash locks underneath the table top (A), then pull the table top wide open equally from both
ends.
12. Lift the butterfly leaf from the compartment of the table top (A). Flip up the leaf and rest it on one slide
support. Unfold the leaf aprons carefully.
13. Unfold the leaf and rest the top flap onto the other slide support.
14. Push the table top (A) from both ends to close and lock the sash locks underneath the table top.
