Bayside CSC9PD-3 - Connecting Table Base Components; Attaching Base to Table Top

6
Assembly Instructions

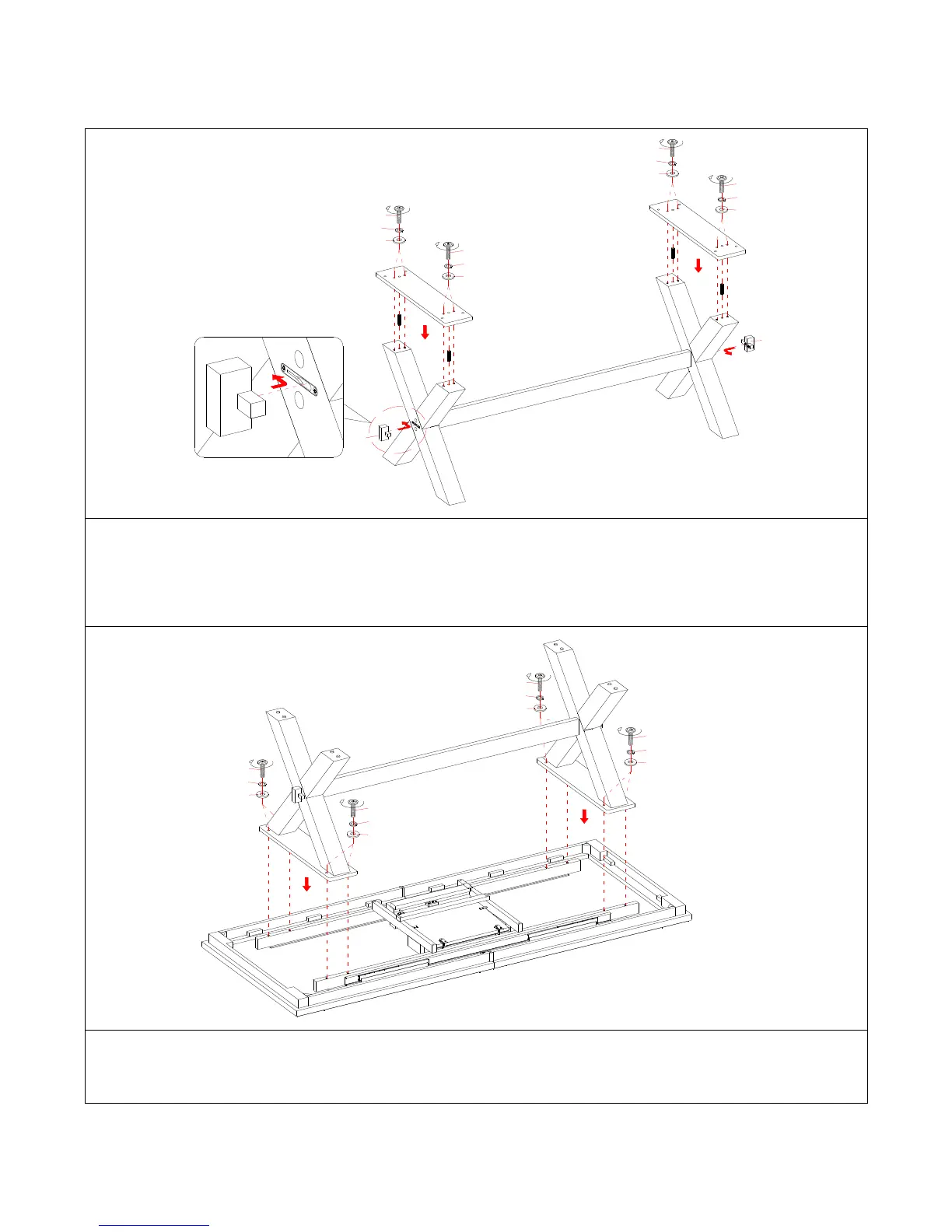

6. Insert four wood dowels (EE) into the non-threaded holes on the legs (B and C). Position the mounting
boards (E) onto the inserted wood dowels (EE) and attach them to the legs (B and C) with eight bolts (AA)
and eight washers (CC and DD).
7. Attach the tenon attachment (F) to cover the countersunk holes on each outer leg (B) by engaging the
plastic fitting.
8. Flip the assembled base upside down and align the drilled holes on mounting boards (E) with the threaded
inserts on the slide supports on the table top (A). Attach the mounting boards (E) into place with eight bolts
(AA) and eight washers (CC and DD).
