7
Assembly Instructions
9. Ask for assistance to lift the unit upright and position it at the desired location.

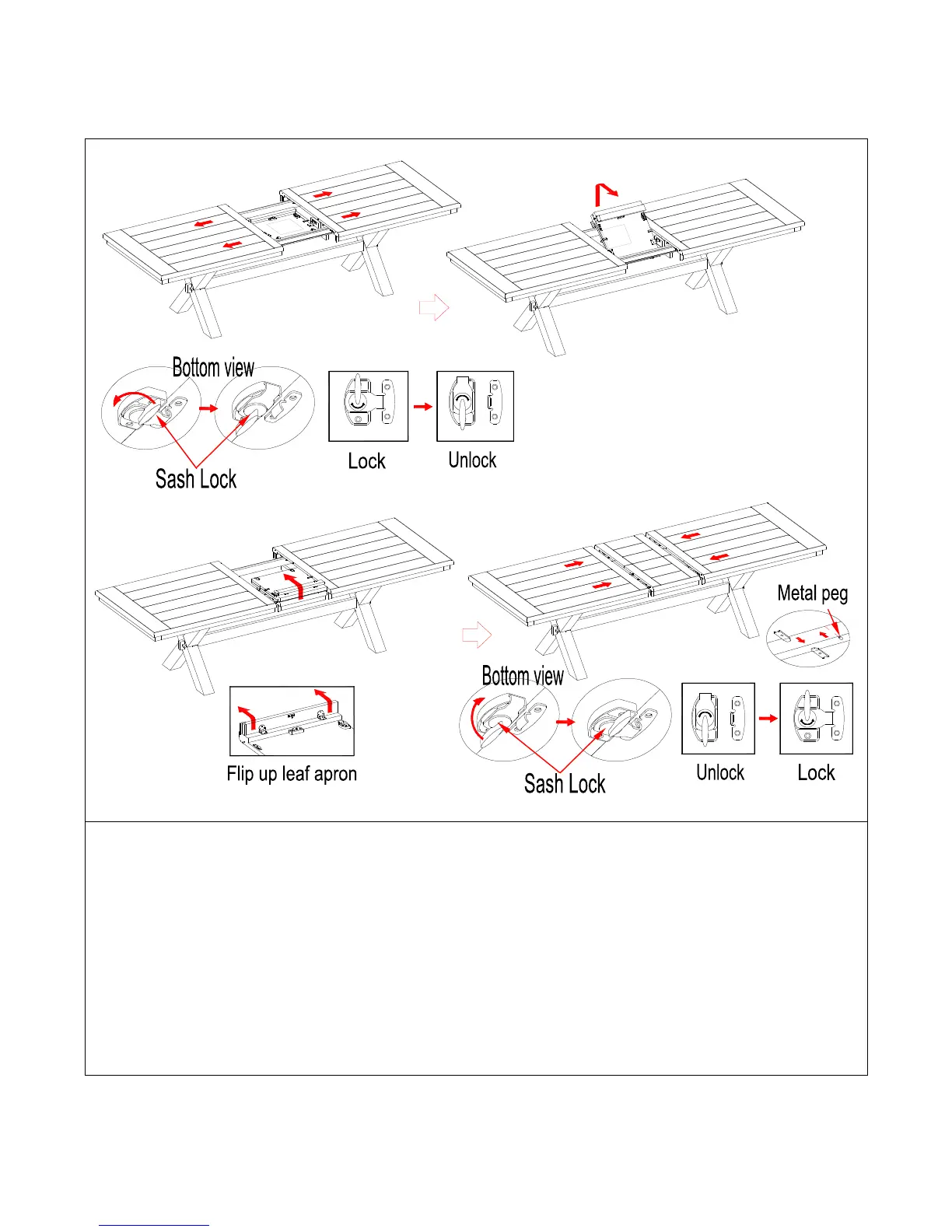

10. To add the leaf extension, unlock the sash locks underneath the table top (A) by rotating the lock handle all
the way to the “OFF” marking on the sash locks and pull the table top wide open equally from both ends.
11. Lift the butterfly leaf from the compartment of the table top (A). Flip up the leaf and rest it on one slide
support. Unfold the leaf aprons carefully.
12. Unfold the leaf and rest the top flap onto the other slide support.
13. Push the table top (A) from both ends to close and lock the sash locks underneath the table top by rotating
the lock handle all the way to the “ON” marking.
ON OFF
ON
OFF
ON OFF
ON
OFF
