BAYTEK GAMES SQUIGGLE - Wiring Diagram; I;O Aux Board Pinout

30

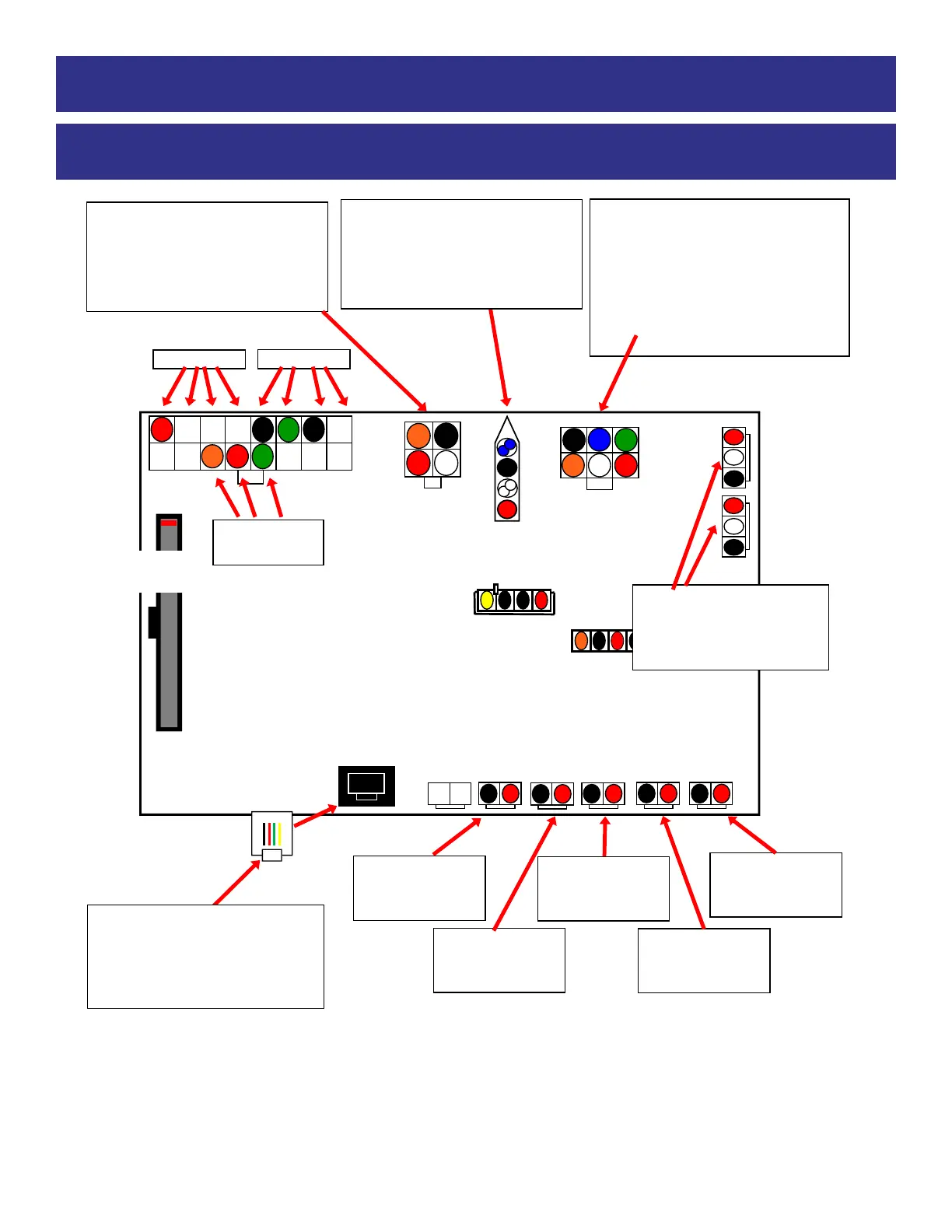

AACB9601-SQ I/O Aux Board Pinout
+12 VDC
To Rasp Pi Board
AAMBRPI-SQ
Ground
DBA Connector
Orange is Inhibit - Processed on Rasp Pi
Black is Ground
Red is +12 VDC
White is DBA Signal - Processed on 9601
Ticket Dispenser
Blue is notch - Processed on 9601
Black is Ground
White is Enabled - Processed on Rasp Pi
Red is +12 VDC
Menu/Counters
Black is Ground
Blue is select - Processed on Rasp Pi
Green is menu - Processed on Rasp Pi
Orange is Ticket counter - processed on 9601
White is Game counter - Processed on 9601
Red is +12 VDC
LED lights
Red is +5 VDC
White is signal processed on 9601
Black is Ground
Ball Sort Solenoid
Red is +12 VDC
Black is FET5 on board
Red Balls Blower
Red is +12 VDC
Black is FET3 on board
Yellow Ball Solenoid
Red is +12 VDC
Black is FET1 on board
Yellow Ball Blower
Red is +12 VDC
Black is FET2 on board
Ball Stack Solenoid
Red is +12 VDC
Black is FET4on board
Communicaon to Marquee Display
Black is +12 VDC
Red is signals from Rasp Pi
Green is signals from Rasp Pi
Yellow is Ground
Inputs
Processed on 9601
WIRING DIAGRAM
AACB9601 I/O AUX BOARD PINOUT
