46
HOW TO
HOW TO

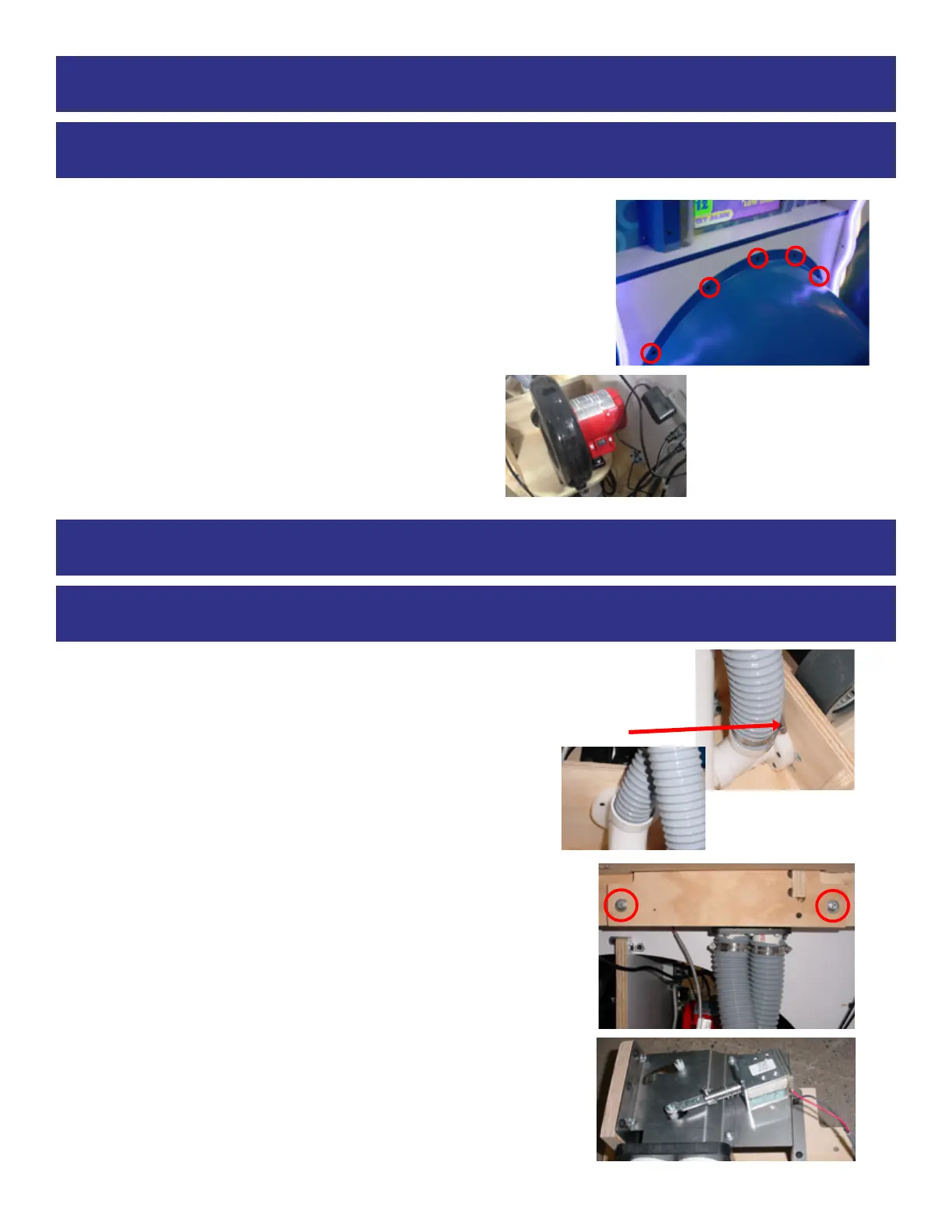

How to Replace Ball Sort Solenoid
The Ball Stack Solenoid is accessible from the back of cabinet.
To remove and replace:
1.) Remove the lower back door of cabinet.
2.) Loosen the nut on hose clamp with a flat screwdriver or 5/16”
nut driver.
3.) The other grey hose can be pulled out of the PVC pipe. It is
not clamped.
5.) Remove the 2 bolts using a 7/16” wrench.
6.) Unplug CE6522 cable and remove assembly from cabinet.
7.) Remove 5 of #2 square bit screws to remove wood housing.
8.) Remove 3 of 8/32” nuts to remove black plastic hose housing.
9.) Install new Solenoid Assembly into wood and hose housing.
10.) Re-installation is the reverse of removal.
How to Replace Red Balls Blower
The Red Ball Blower is located under the large blue vacuum form
middle section.
To remove and replace:
1.) Remove all of the black #2 square bit screws from the blue housing.
2.) Lift housing from cabinet.
3.) Blower can now be replaced. Part # AABL6505
4.) Re-installation is the reverse of removal.
How to Replace Ball Sort Solenoid
The Ball Stack Solenoid is accessible from the back of cabinet.
To remove and replace:
1.) Remove the lower back door of cabinet.
2.) Loosen the nut on hose clamp with a flat screwdriver or 5/16”
nut driver.
3.) The other grey hose can be pulled out of the PVC pipe. It is
not clamped.
5.) Remove the 2 bolts using a 7/16” wrench.
6.) Unplug CE6522 cable and remove assembly from cabinet.
7.) Remove 5 of #2 square bit screws to remove wood housing.
8.) Remove 3 of 8/32” nuts to remove black plastic hose housing.
9.) Install new Solenoid Assembly into wood and hose housing.
10.) Re-installation is the reverse of removal.
How to Replace Red Balls Blower
The Red Ball Blower is located under the large blue vacuum form
middle section.
To remove and replace:
1.) Remove all of the black #2 square bit screws from the blue housing.
2.) Lift housing from cabinet.
3.) Blower can now be replaced. Part # AABL6505
4.) Re-installation is the reverse of removal.
REPLACE RED BALLS BLOWER
REPLACE BALL SORT SOLENOID
