Bazooka EL1500 - Speaker Connections; Two Channel Speaker Connections; El1500 Speaker Connections; Four Channel Speaker Connections

SPEAKER
+12V
REM
15A
15A
15A15A
FUSE
GND

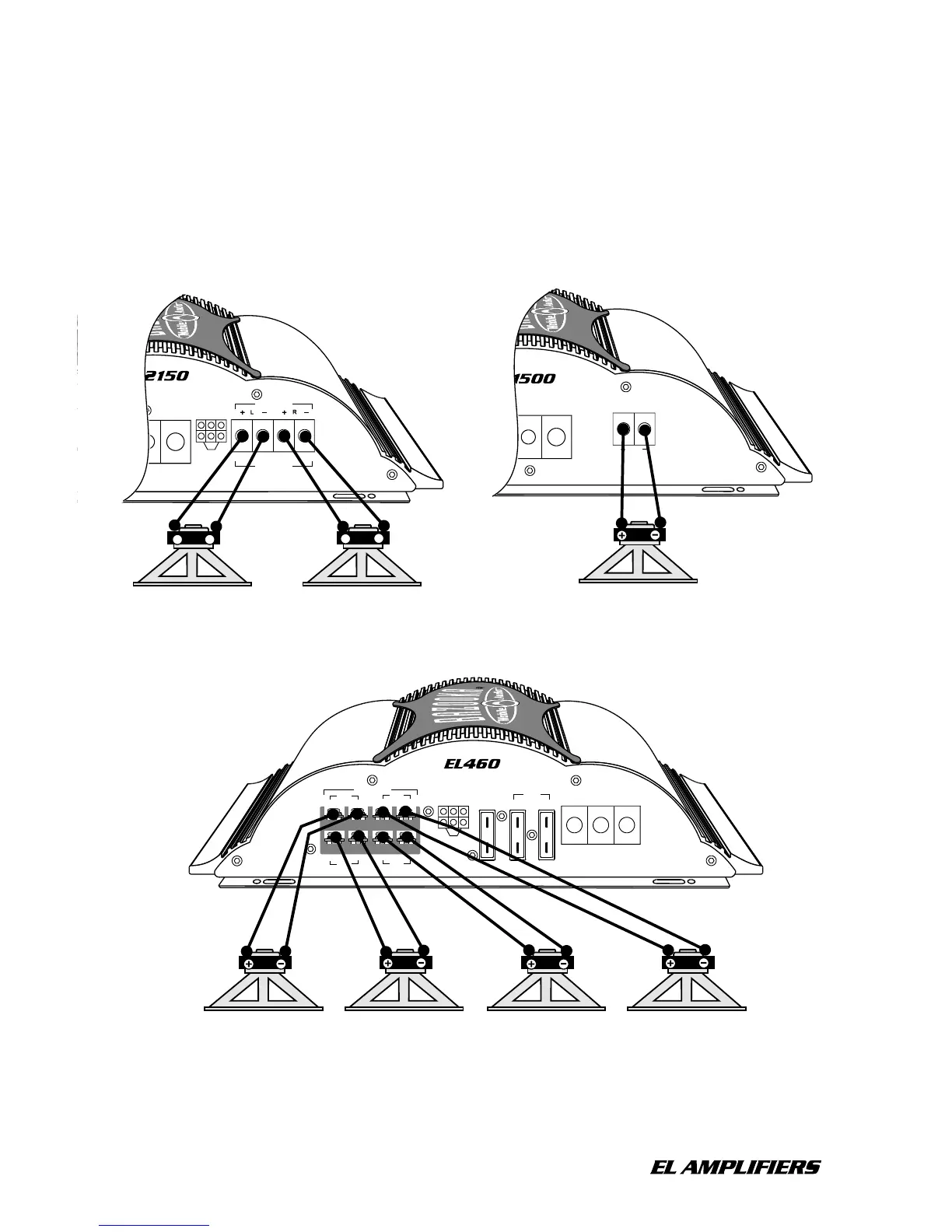

EL1500 SPEAKER CONNECTIONS
4 Ohm Speaker
(2 Ohm Minimum)
4 Ohm Speaker
(2 Ohm Minimum)
Make the speaker connections using speaker wire that is at least 16 gauge or
heavier.
As with any audio component, proper phasing of the amplifier and speakers is
essential for strong bass response. When connecting, make sure that positive (+)
from the amplifier is connected to the positive (+) of the speaker, and the same for
negative (-).
SPEAKER CONNECTIONS
BRIDGED
CH 1
CH 2
CH 4
CH 3
AUX
OUTPUT
+12V
REM GND
20A
AUX
7.5A
20A
AMP
+
-
+
-
+
- +
-
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
FOUR CHANNEL SPEAKER CONNECTIONS
10
TWO CHANNEL
SPEAKER CONNECTIONS
SPEAKERS
BRIDGED
AUX
OUTPUT
+12V
REM
20A
GND
4 Ohm Speakers
(2 Ohm Minimum)
4 Ohm Speakers
(2 Ohm Minimum)
+
-
+
-
