Bazooka EL1500 - Speaker Connections (Bridged); Two Channel Bridged Speaker Connections; Four Channel Bridged Speaker Connections

BRIDGED
CH 1
CH 2
CH 4
CH 3
AUX
OUTPUT
+12V
REM GND
20A
AUX
7.5A
20A
AMP
+
-
+
-
+
- +
-
4 Ohm Speaker
4 Ohm Speaker
4 Ohm Speaker
4 Ohm Speaker
SPEAKERS
BRIDGED
AUX
OUTPUT
+12V
REM
20A 20A
AUX
7.5A
20A
AMP
GND
+
4 Ohm Speaker
4 Ohm Speaker

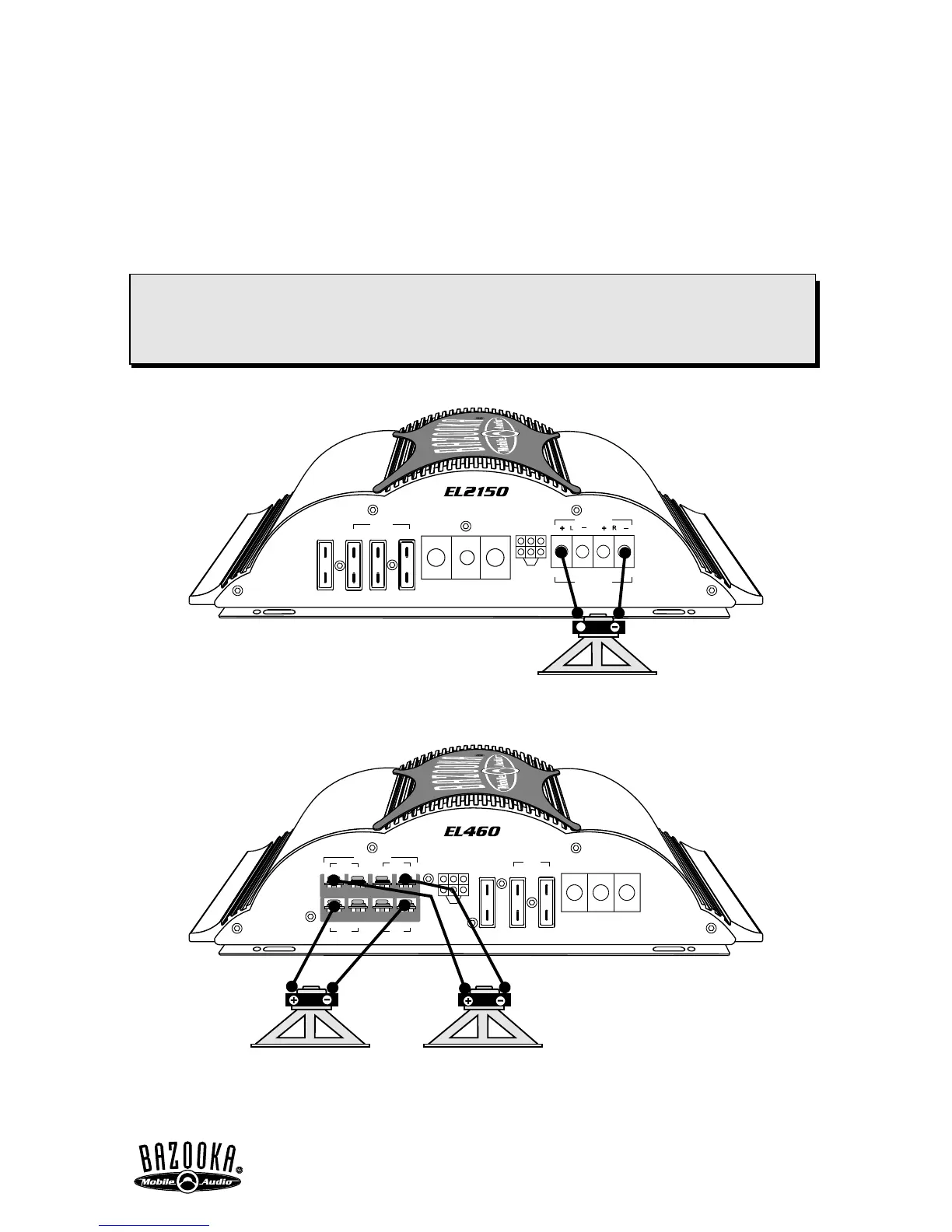

TWO CHANNEL BRIDGED SPEAKER CONNECTIONS
FOUR CHANNEL BRIDGED SPEAKER CONNECTIONS
SPEAKER CONNECTIONS (BRIDGED)
The EL amplifiers are capable of being bridged in a mono configuration. This
feature allows you the flexibility of using the amplifier to drive a ** subwoofer or a
center channel. In this configuration the amplifier sums the right and left channel
to deliver one channel (mono) output.
Please note: in order for the amplifier to sum right and left signal information, both
right and left RCA connections must be made.
**CAUTION! In the bridged mode, the amplifier must see a 4 Ohm load or higher.
Any lower than 4 Ohms will cause the amplifier to overheat and possibly cause
11
