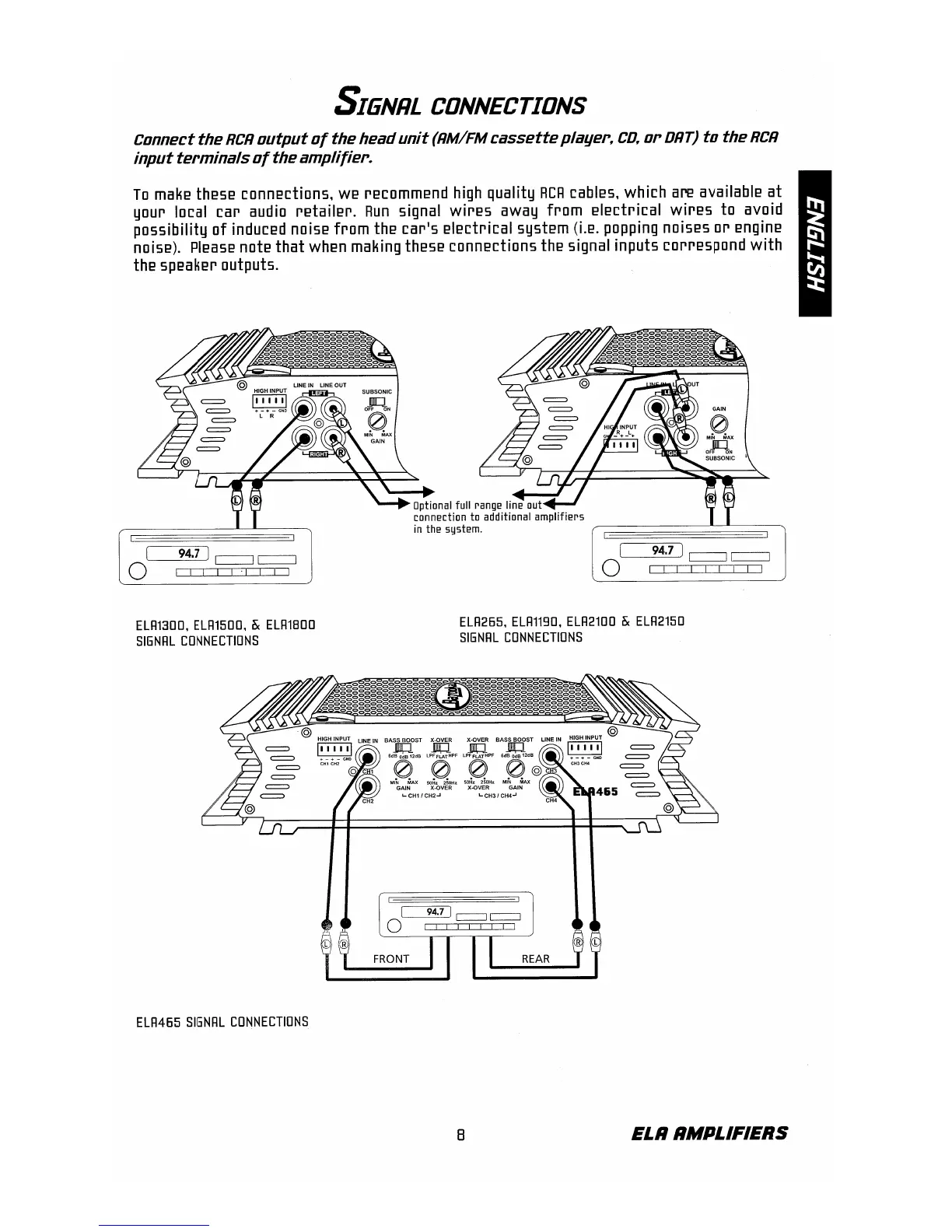

SIGNRL CONNECTIONS
Connect the HCR output of the head unit (RM/FM cassette player, CD, or DRT) to the HCR
input terminals of the amplifier.
To make these connections. we recommend high Quality RCR cables. which are available at
your local car audio retailer. Run signal wires away from electrical wires to avoid
possibility
of induced noise from the car's electrical system (Le. popping noises or engine
noise). Please note that when making these connections the signal inputs correspond with
the speaker outputs.
,---[ _~94::..::..::-.7~) c==:::J c==:::J
o 11111-1111
ELR1300, ELR1500, De ELR1800
SIGNRL CONNECTIONS
r'---_-'--94_.7~) c==:::J c==:::J
o 111I11111
ELR265, ELR1190, ELR2100 De ELR2150
SIGNRL CONNECTIONS
ELR465 SIGNRL CONNECTIONS
