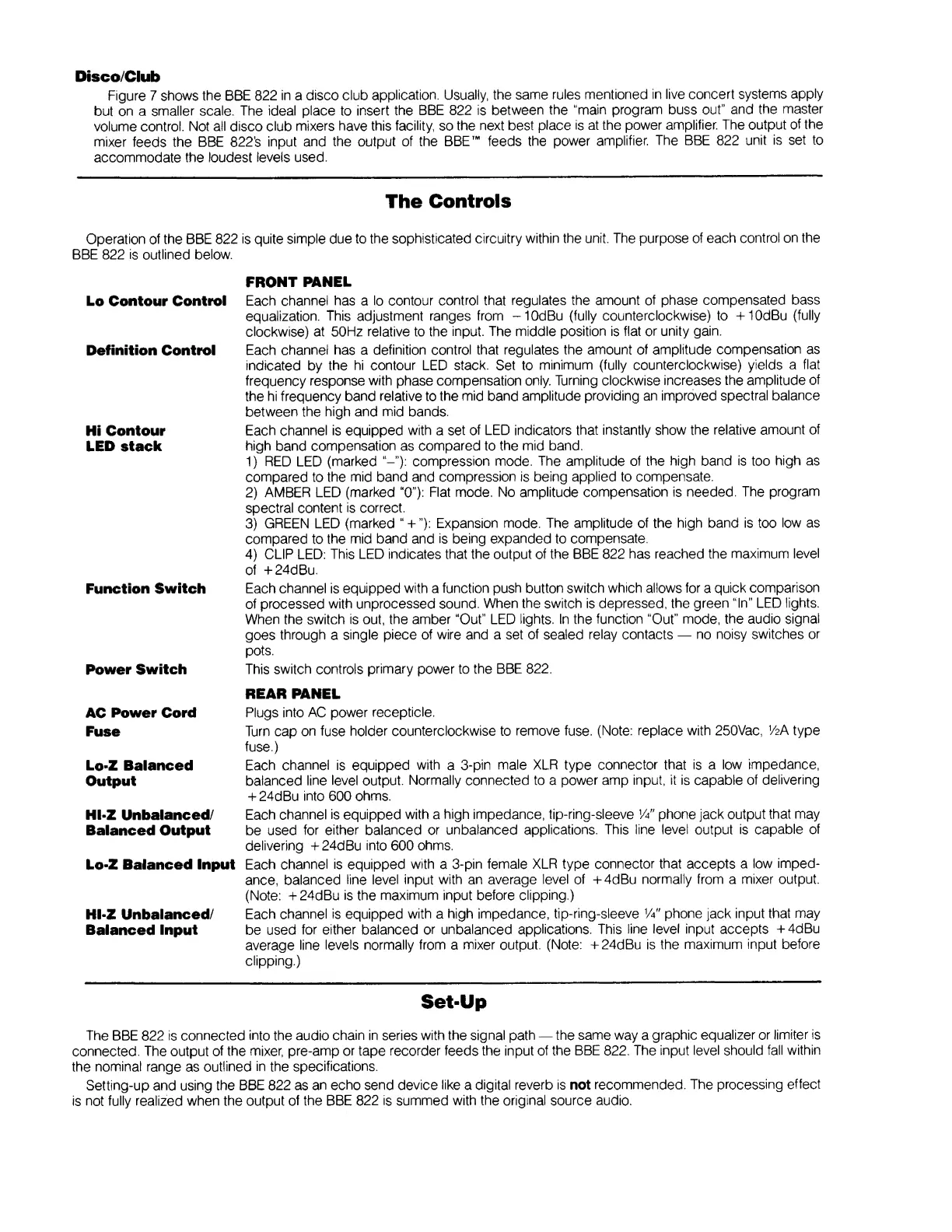

Disco/Club
Figure
7
shows
the
BBE
822
in
a
disco
club
application.
Usually,
the
same
rules
mentioned
in
live
concert
systems
apply
but
on
a
smaller
scale.
The
ideal
place
to
insert
the
BBE
822
is
between
the
“main
program
buss
out”
and
the
master
volume
control.
Not
all
disco
club
mixers
have
this
facility,
so
the
next
best
place
is
at
the
power
amplifier.
The
output
of
the
mixer
feeds
the
BBE
822’s
input
and
the
output
of
the
BBE'“
feeds
the
power
amplifier.
The
BBE
822
unit
is
set
to
accommodate
the
loudest
levels
used.
The
Controls
Operation
of
the
BBE
822
is
quite
simple
due
to
the
sophisticated
circuitry
within
the
unit.
The
purpose
of
each
control
on
the
BBE
822
is
outlined
below.
Lo
Contour
Control
Definition
Controi
Hi
Contour
LED
stack
Function
Switch
Power
Switch
AC
Power
Cord
Fuse
Lo-Z
Balanced
Output
Hl-Z
Unbalanced/
Balanced
Output
Lo-Z
Balanced
Input
Hl-Z
Unbalanced/
Balanced
Input
FRONT
PANEL
Each
channel
has
a
lo
contour
control
that
regulates
the
amount
of
phase
compensated
bass
equalization.
This
adjustment
ranges
from
-lOdBu
(fully
counterclockwise)
to
+10dBu
(fully
clockwise)
at
50Hz
relative
to
the
input.
The
middle
position
is
flat
or
unity
gain.
Each
channel
has
a
definition
control
that
regulates
the
amount
of
amplitude
compensation
as
indicated
by
the
hi
contour
LED
stack.
Set
to
minimum
(fully
counterclockwise)
yields
a
flat
frequency
response
with
phase
compensation
only.
Turning
clockwise
increases
the
amplitude
of
the
hi
frequency
band
relative
to
the
mid
band
amplitude
providing
an
improved
spectral
balance
between
the
high
and
mid
bands.
Each
channel
is
equipped
with
a
set
of
LED
indicators
that
instantly
show
the
relative
amount
of
high
band
compensation
as
compared
to
the
mid
band.
1)
RED
LED
(marked
“-”):
compression
mode.
The
amplitude
of
the
high
band
is
too
high
as
compared
to
the
mid
band
and
compression
is
being
applied
to
compensate.
2)
AMBER
LED
(marked
“0”):
Flat
mode.
No
amplitude
compensation
is
needed.
The
program
spectral
content
is
correct.
3)
GREEN
LED
(marked
+
”):
Expansion
mode.
The
amplitude
of
the
high
band
is
too
low
as
compared
to
the
mid
band
and
is
being
expanded
to
compensate.
4)
CLIP
LED:
This
LED
indicates
that
the
output
of
the
BBE
822
has
reached
the
maximum
level
of
+24dBu.
Each
channel
is
equipped
with
a
function
push
button
switch
which
allows
for
a
quick
comparison
of
processed
with
unprocessed
sound.
When
the
switch
is
depressed,
the
green
“In”
LED
lights.
When
the
switch
is
out,
the
amber
“Out”
LED
lights.
In
the
function
“Out”
mode,
the
audio
signal
goes
through
a
single
piece
of
wire
and
a
set
of
sealed
relay
contacts
no
noisy
switches
or
pots.
This
switch
controls
primary
power
to
the
BBE
822.
REAR
PANEL
Plugs
into
AC
power
recepticle.
Turn
cap
on
fuse
holder
counterclockwise
to
remove
fuse.
(Note:
replace
with
250Vac,
V
2
A
type
fuse.)
Each
channel
is
equipped
with
a
3-pin
male
XLR
type
connector
that
is
a
low
impedance,
balanced
line
level
output.
Normally
connected
to
a
power
amp
input,
it
is
capable
of
delivering
-K24dBu
into
600
ohms.
Each
channel
is
equipped
with
a
high
impedance,
tip-ring-sleeve
Va
phone
jack
output
that
may
be
used
for
either
balanced
or
unbalanced
applications.
This
line
level
output
is
capable
of
delivering
-i-24dBu
into
600
ohms.
Each
channel
is
equipped
with
a
3-pin
female
XLR
type
connector
that
accepts
a
low
imped¬
ance,
balanced
line
level
input
with
an
average
level
of
-i-4dBu
normally
from
a
mixer
output.
(Note:
+24dBu
is
the
maximum
input
before
clipping.)
Each
channel
is
equipped
with
a
high
impedance,
tip-ring-sleeve
Va
phone
jack
input
that
may
be
used
for
either
balanced
or
unbalanced
applications.
This
line
level
input
accepts
+4dBu
average
line
levels
normally
from
a
mixer
output.
(Note:
+24dBu
is
the
maximum
input
before
clipping.)
Set-Up
The
BBE
822
is
connected
into
the
audio
chain
in
series
with
the
signal
path
the
same
way
a
graphic
equalizer
or
limiter
is
connected.
The
output
of
the
mixer,
pre-amp
or
tape
recorder
feeds
the
input
of
the
BBE
822.
The
input
level
should
fall
within
the
nominal
range
as
outlined
in
the
specifications.
Setting-up
and
using
the
BBE
822
as
an
echo
send
device
like
a
digital
reverb
is
not
recommended.
The
processing
effect
is
not
fully
realized
when
the
output
of
the
BBE
822
is
summed
with
the
original
source
audio.
