BBE SONIC MAXIMIZER 482 - Application Diagrams

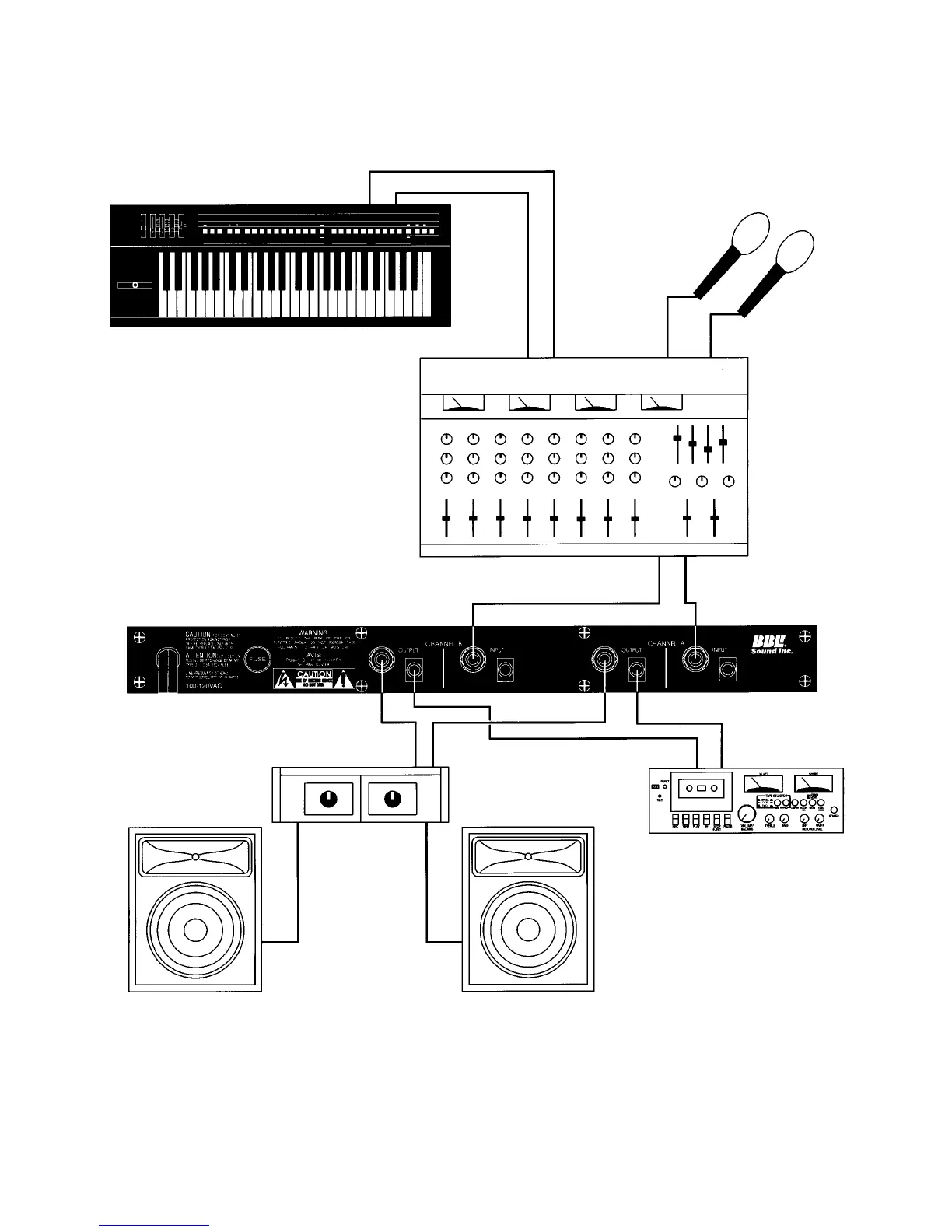

LIVE APPLICATION: NON-POWERED MIXER
5
Connect the BBE 482 to the output of the mixing console. The output of the BBE will drive
either a crossover or a power amplifier directly.
MICROPHONES
PA CABINET
PA CABINET
POWER
AMPLIFIER
KEYBOARD
MIXING CONSOLE
BBE 482 SONIC MAXIMIZER
CASSETTE DECK
CALIFORNIA USA
MODEL 482
US PATENT
NO 4,482,866
AND OTHERS
