BBQ 23672 - Step 4; Step 5; Step 6

\
\

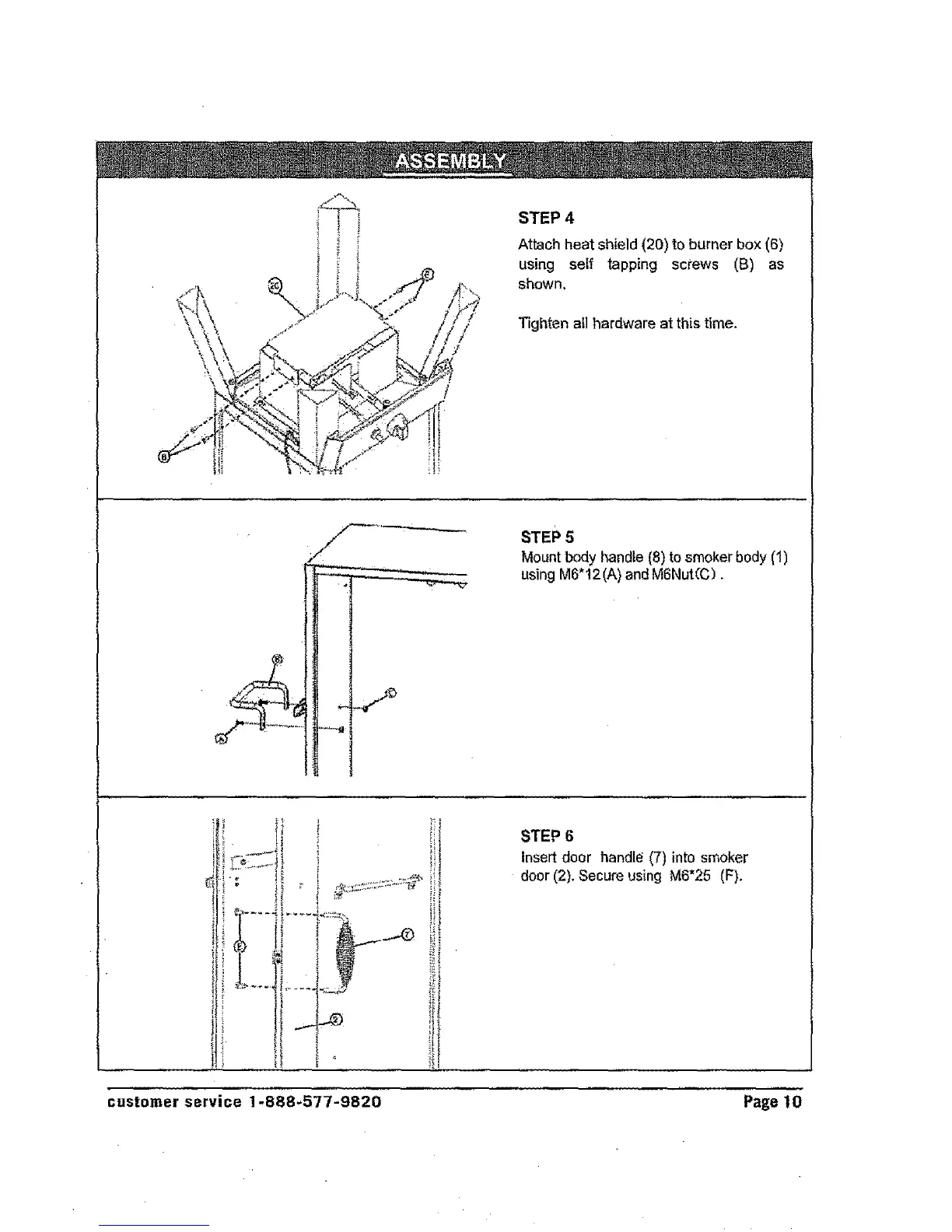

STEP 4
Attach heat shield (20) to burner box (6)
using self tapping screws (B) as
shown.
Tighten all hardware at this time.
STEP 5
Mount body handle (8) tosmoker body (1)
using M6"12(A) and MdNut(C) •
Iii i _ ....
i!....
STEP 6
Insert door handl_ (7) into smoker
door(2). Secure using M6"25 (F),
customer service 1-888-577-9820 Page 10
