BBQ 23672 - Step 7; Step 8; Step 9

3!
i!

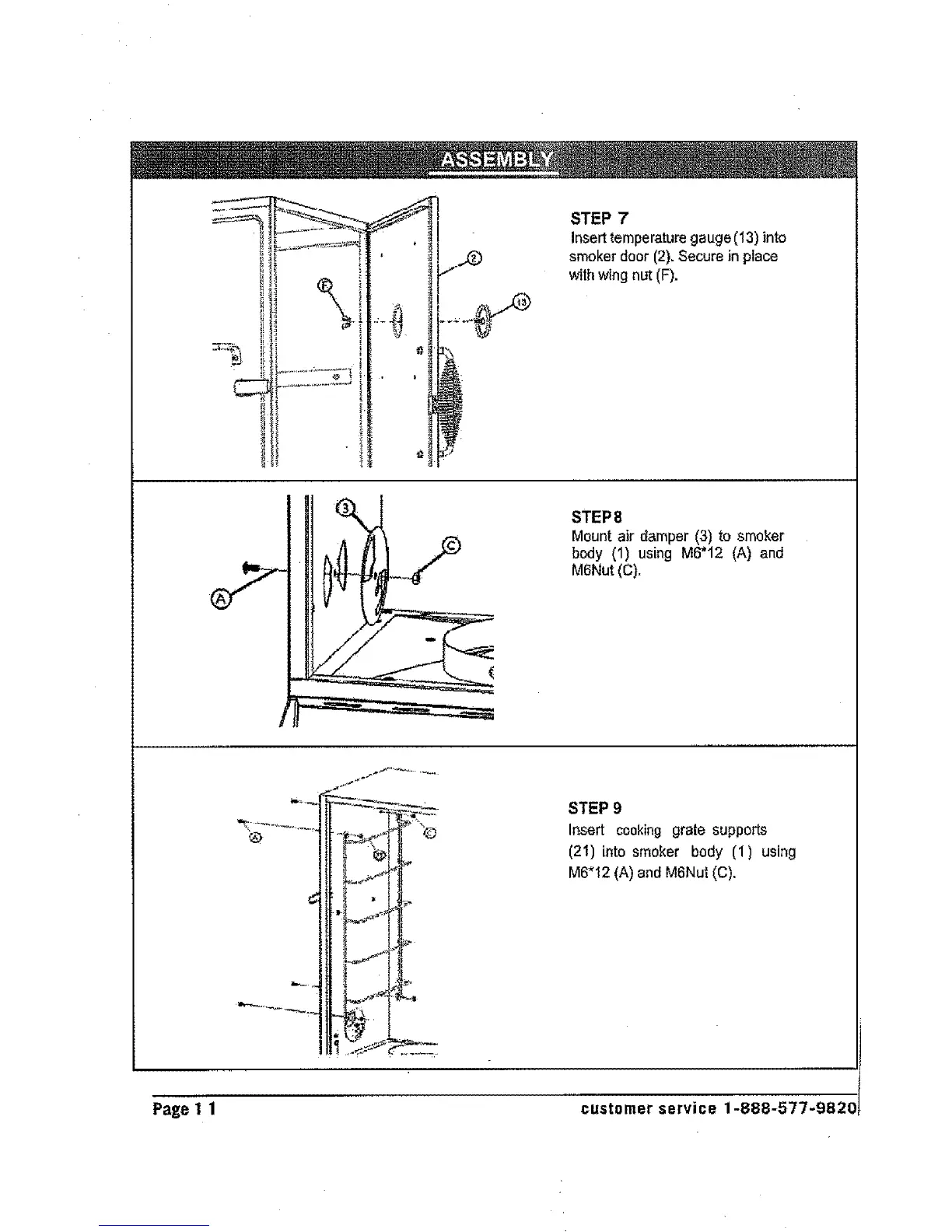

STEP 7
Inserttemperature gauge (13) into
smoker door (2). Secure in place
with wingnut(F).
STEP 8
Mount air damper (3) to smoker
body (1) using M6"12 (A) and
M6Nut (C).
m
J
STEP 9
Insert cooking grate supports
(2!) into smoker body (1) using
M6"12 (A) and M6Nut (C).
Page 1 1 customer service 1-888-577-9820
